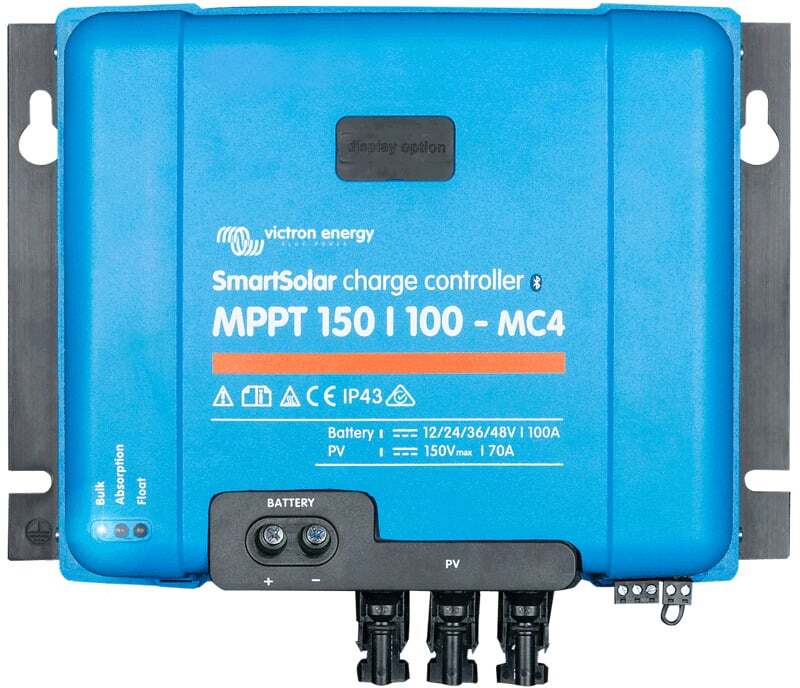

Victron 100A SmartSolar MPPT 150/100-MC4 VE.Can Charge Controller
Maximise the energy harvest of your solar array with the Victron 100A SmartSolar MPPT 150/100-MC4 VE.Can. Engineered for 12V, 24V, and 48V battery systems, this advanced solar charge controller delivers unparalleled efficiency and precise battery management. With a maximum open-circuit voltage of 150V and up to 100A of charge current, it is an ideal solution for robust off-grid, marine, and caravan solar installations where reliable power generation is critical.
Ultra-Fast MPPT Tracking for Dynamic Light Conditions
In environments with continuously changing light intensity, such as partly cloudy skies, standard charge controllers struggle to maintain peak output. The Victron SmartSolar MPPT utilises ultra-fast Maximum Power Point Tracking (MPPT) to instantly adjust to environmental shifts. This rapid response improves overall energy harvest by up to 30 percent compared to older PWM controllers and significantly outperforms slower MPPT alternatives. When partial shading occurs, the innovative BlueSolar algorithm detects multiple power points on the voltage curve and locks onto the optimum power point, ensuring your system captures the maximum available energy without compromise.
Seamless Multi-Controller Synchronisation with VE.Can
As your power requirements grow, managing multiple solar charge controllers can become complex. The integrated VE.Can communication ports simplify this process. By connecting multiple units via VE.Can, you can synchronise up to 25 charge controllers on a single network. This ensures all controllers work together harmoniously to execute the same charging algorithm, extending battery lifespan and optimising performance across large-scale solar arrays.
Simplified Installation with MC4 Connectors
Wiring heavy-duty solar systems requires secure and weather-resistant connections. The 150/100-MC4 model provides an excellent alternative to traditional screw terminal (Tr) variants by featuring three pairs of integrated MC4 connectors. This plug-and-play design allows for rapid and safe connection of your solar panel strings directly to the charge controller, reducing installation time and minimising the risk of poor electrical contact.
Wireless Monitoring and Control

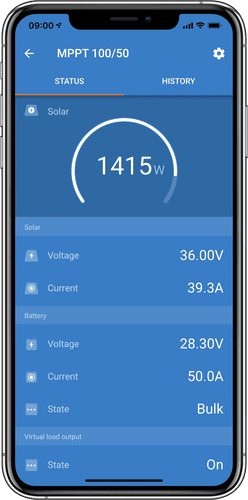

Configure, monitor, and update your charge controller directly from your smartphone using the built-in Bluetooth Smart technology. The VictronConnect app provides real-time data on solar yield, battery voltage, and historical performance trends. For systems requiring wired data connections, the VE.Direct port enables seamless integration with a Color Control GX, Cerbo GX, or other monitoring devices.
Key Features
- Outstanding conversion efficiency exceeding 98 percent with fanless passive cooling
- Ultra-fast MPPT tracking to continuously optimise solar power output
- Advanced partial shading detection to prevent power loss
- Built-in VE.Can networking to synchronise multiple controllers
- Three pairs of MC4 connectors for quick, reliable solar panel input
- Comprehensive electronic protection against over-temperature, short circuits, and reverse polarity
- Compatible with optional pluggable LCD display for on-board metrics
Upgrade Your Solar Architecture Today
Build a more resilient and efficient off-grid power system. Equip your marine vessel, caravan, or remote property with the Victron SmartSolar MPPT 150/100-MC4 VE.Can and harness every available drop of sunlight.
SKU: VIC-SCC115110511
SPECIFICATIONS

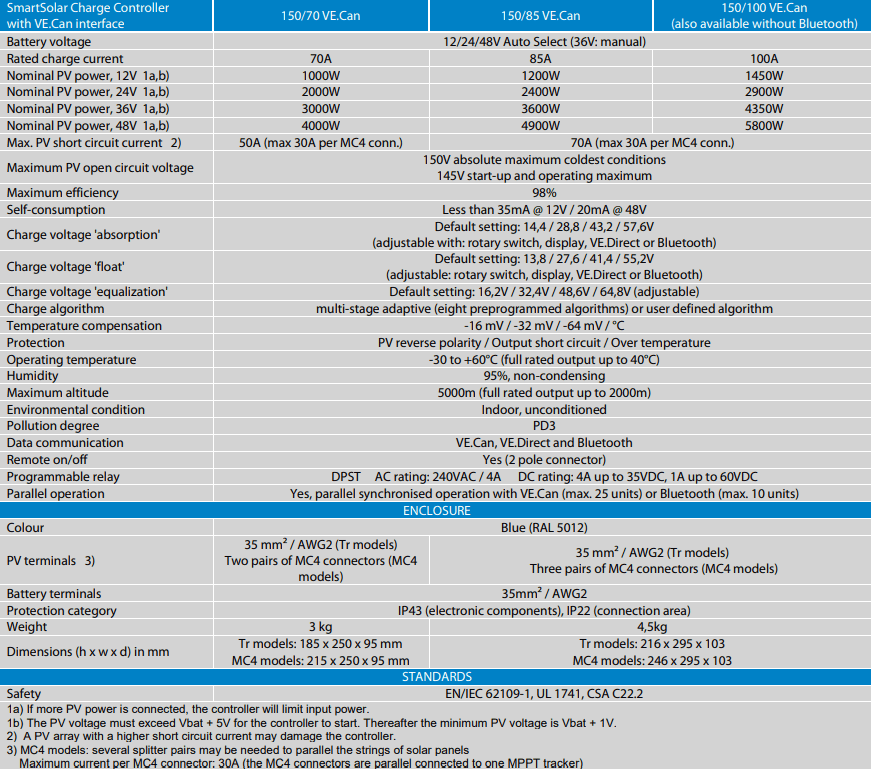

Specifications
| Battery Voltage | 12/24/48 V Auto Select (36 V: manual) |
|---|---|
| Rated Charge Current | 100 A |
| Nominal PV Power, 12 V | 1450 W |
| Nominal PV Power, 24 V | 2900 W |
| Nominal PV Power, 36 V | 4350 W |
| Nominal PV Power, 48 V | 5800 W |
| Max. PV Short Circuit Current | 70 A (max. 30 A per MC4 conn.) |
| Maximum PV Open Circuit Voltage | 150 V Absolute Maximum Coldest Conditions; 145 V Start-Up And Operating Maximum |
| Maximum Efficiency | 98 % |
| Self-Consumption | Less than 35 mA @ 12 V / 20 mA @ 48 V |
| Charge Voltage 'Absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V |
| Charge Voltage 'Float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V |
| Charge Voltage 'Equalization' | Default setting: 16.2 / 32.4 / 48.6 / 64.8 V (adjustable) |
| Charge Algorithm | Multi-stage adaptive (eight preprogrammed algorithms) or user defined algorithm |
| Temperature Compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60 °C (full rated output up to 40 °C) |
| Humidity | 95 %, non-condensing |
| Maximum Altitude | 5000 m (full rated output up to 2000 m) |
| Environmental Condition | Indoor, unconditioned |
| Pollution Degree | PD3 |
| Data Communication | VE.Can, VE.Direct and Bluetooth |
| Remote On/Off | Yes (2 pole connector) |
| Programmable Relay | DPST AC rating: 240 VAC / 4 A; DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC |
| Parallel Operation | Yes, parallel synchronised operation with VE.Can (max. 25 units) or Bluetooth (max. 10 units) |
| Colour | Blue (RAL 5012) |
| PV Terminals | Three pairs of MC4 connectors |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 4.5 kg |
| Dimensions (H x W x D) | 246 x 295 x 103 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | VIC-SCC115110511 |
| Barcode: | 8719076050360 |
| Model #: | SCC115110511 |
| MPN: | SCC115110511 |
