Victron 24V 5A Blue Smart IP67 24/5 AU/NZ Battery Waterproof Charger
IP67 Waterproof, Bluetooth Smart, 94% Efficient, 5-Stage Adaptive Charging
Victron 12/24V 10A BlueSolar PWM-Light Solar Ch...DESCRIPTION
Victron Blue Smart IP67 24V 5A: Professional-Grade Waterproof Battery Charger with Bluetooth
Advanced 24V Battery Charging for Demanding Environments
The Victron Blue Smart IP67 24/5 is a compact, high-efficiency 24V 5A battery charger engineered for professionals and enthusiasts who require reliable power in harsh conditions. With a fully sealed, IP67-rated waterproof and dustproof cast aluminium enclosure, this charger thrives in marine, automotive, and off-grid applications where moisture, dirt, and vibration are constant challenges. Integrated Bluetooth Smart technology enables wireless monitoring, configuration, and firmware updates via the VictronConnect app, putting complete control at your fingertips.
Unlike conventional chargers that degrade under stress, the Blue Smart IP67 delivers a 94% energy efficiency, minimising heat generation and reducing AC power consumption. This not only lowers operating costs but also ensures stable output even in high-temperature settings up to 60°C, with automatic derating above 40°C to protect both charger and battery.
Intelligent Adaptive 5-Stage Charging for Maximum Battery Life
At the core of the Blue Smart IP67 is a microprocessor-controlled adaptive 5-stage charge algorithm (Bulk, Absorption, Float, Storage, and Recondition). This intelligent system analyses battery usage patterns and adjusts charging parameters to prevent overcharging, reduce electrolyte stratification, and combat sulphation—common causes of premature battery failure. The dedicated Storage Mode activates after 24 hours of inactivity, lowering float voltage to 26.4V (Normal) to minimise gassing and plate corrosion, significantly extending service life for seasonal or standby batteries.
Compatibility extends beyond traditional lead-acid chemistries: the charger supports LiFePO₄ (Lithium Iron Phosphate) batteries with a simplified bulk-absorption-float profile, making it a versatile solution for modern energy storage systems. A low-current mode (2A) is also available for safely charging smaller batteries, ensuring flexibility across a wide range of applications.
Built for the Real World: Rugged, Safe, and User-Friendly
Every detail of the Blue Smart IP67 reflects Victron's commitment to durability and safety. The cast aluminium heatsink efficiently dissipates heat, while internal electronics are fully resin-encased to withstand shock, vibration, and corrosive atmospheres. Integrated protection circuits guard against reverse polarity (fused), output short circuit, and over-temperature, ensuring worry-free operation in demanding installations.

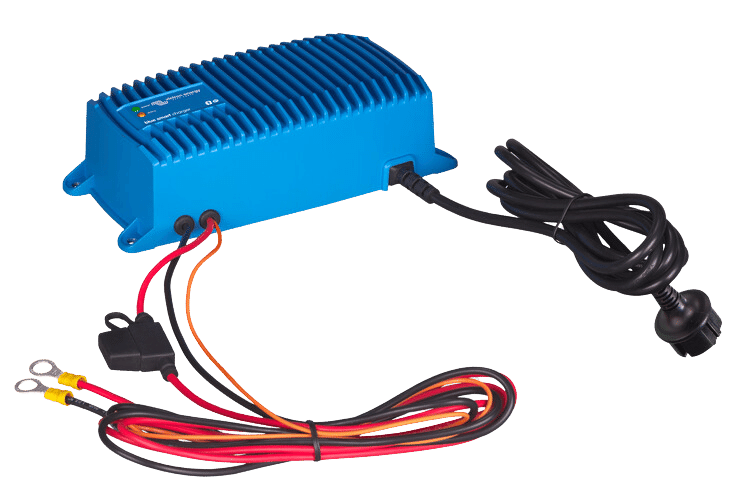

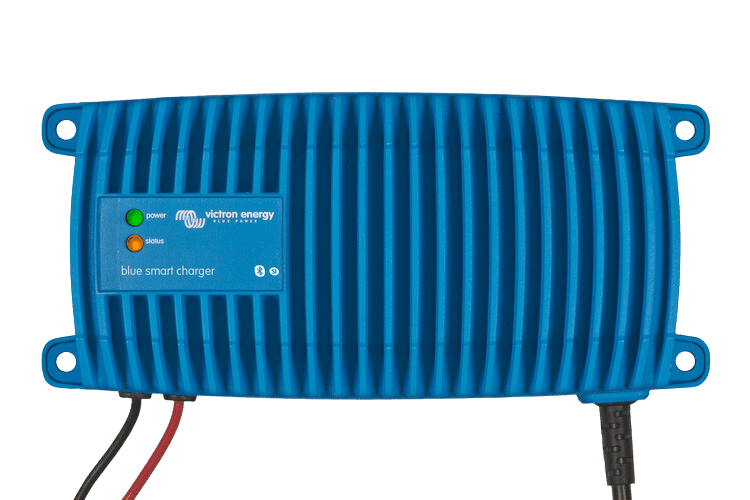

Dual LED indicators provide clear, at-a-glance status: a green LED confirms power, and an orange LED displays charging stage. The included 1.5-metre battery cables with ring terminals and a 1.5-metre AC lead with an AS/NZS 3112 compliant plug simplify installation in tight spaces. For added versatility, the charger can function as a regulated DC power supply, ideal for powering equipment directly or maintaining voltage during battery replacement.
- IP67 waterproof and dustproof – fully sealed against immersion and contaminants, perfect for marine, 4WD, and outdoor use

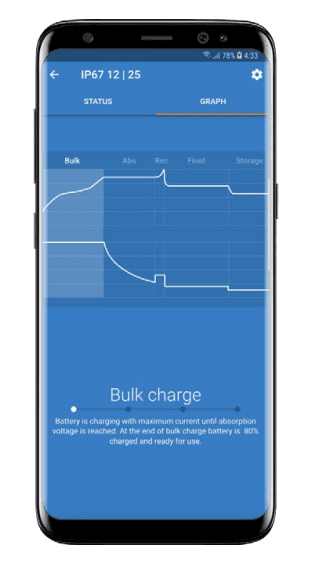

- Bluetooth Smart connectivity – monitor charge status, adjust settings, and update firmware wirelessly via VictronConnect
- 94% energy efficiency – reduces heat waste and AC power draw, saving energy and lowering running costs
- Adaptive 5-stage charging – optimises battery health for lead-acid and LiFePO₄ batteries, including a storage mode for long-term maintenance
- Robust aluminium enclosure – resin-encased electronics resist shock, vibration, and corrosion, ensuring long service life
- Comprehensive protection – reverse polarity, short circuit, and over-temperature safeguards for safe, unattended operation
- Dual-purpose design – operates as a battery charger or regulated DC power supply for versatile workshop and field use
Applications: From Workshop to Wilderness
The Victron Blue Smart IP67 24/5 excels wherever reliable 24V charging is critical. In marine environments, its corrosion-resistant construction and ignition protection make it a trusted choice for maintaining house and starter batteries on boats and yachts. For RV and caravan owners, the compact, waterproof design ensures dependable charging during off-grid adventures, even when exposed to rain or dust. Automotive workshops benefit from its ability to safely charge and maintain batteries in classic cars, motorcycles, and commercial vehicles, while off-grid solar systems can use it as a backup AC charger for 24V battery banks. Industrial users will appreciate its reliable performance in high-temperature machinery rooms and remote equipment enclosures.
By choosing the Victron Blue Smart IP67, you eliminate the risks associated with inferior chargers—overcharging, premature battery failure, and unsafe operation in wet or dusty conditions. Its adaptive logic and robust build ensure your batteries receive precise, safe charging every time, reducing downtime and replacement costs.
Take Control of Your Battery Health
Equip your workshop, vessel, or off-grid system with the Victron Blue Smart IP67 24V 5A charger and experience professional-grade charging that adapts to your needs. Order today to keep your batteries in peak condition, wherever your work or adventures take you.
SKU: VIC-BPC240547016

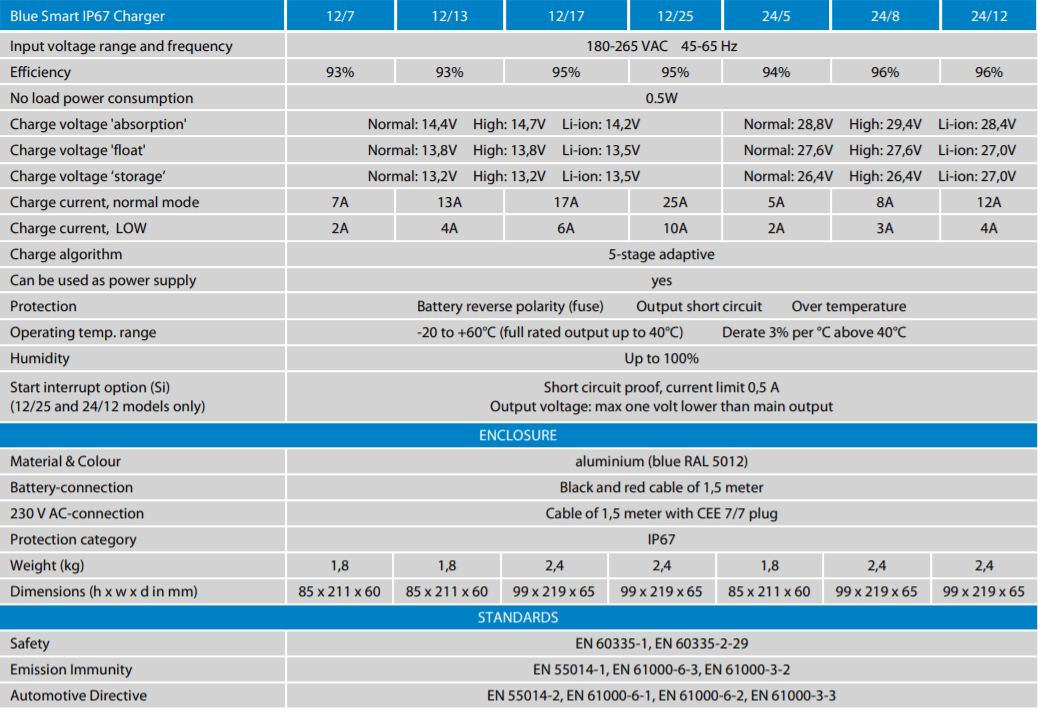

SPECIFICATIONS
Specifications
| Blue Smart IP67 Charger | 24/5 |
| Input voltage range and frequency | 180-265 VAC 45-65 Hz |
| Efficiency | 94% |
| No load power consumption | 0.5W |
| Charge voltage 'absorption' | Normal: 28.8V High: 29.4V Li-ion: 28.4V |
| Charge voltage 'float' | Normal: 27.6V High: 27.6V Li-ion: 27.0V |
| Charge voltage ‘storage’ | Normal: 26.4V High: 26.4V Li-ion: 27.0V |
| Charge current, normal mode | 5A |
| Charge current, Low | 2A |
| Charge algorithm | 5-stage adaptive |
| Can be used as power supply | yes |
| Protection | Battery reverse polarity (fuse) Output short circuit Over temperature |
| Operating temp. range | -30°C to +60°C (full rated output up to 40°C) Derate 3% per °C above 40°C |
| Humidity | Up to 100% |
| Start interrupt option (Si) | Short circuit proof, current limit 0.5 A Output voltage: max one volt lower than main output |
| Enclosure | |
| Material & Colour | aluminium (blue RAL 5012) |
| Battery-connection | Black and red cable of 1.5 meter |
| 230 V AC-connection | Cable of 1.5 meter with AS/NZS 3112 compliant plug |
| Protection category | IP67 |
| Weight (kg) | 1.8 |
| Dimensions (h x w x d in mm) | 85 x 211 x 60 |
| Standards | |
| Safety | EN 60335-1, EN 60335-2-29 |
| Emission Immunity | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Automotive Directive | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| SKU: | VIC-BPC240547016 |
| Barcode: | 8719076055341 |
| Model #: | BPC240547016 |
| MPN: | BPC240547016 |
