Victron 12V to 12V Orion-Tr Smart 12/12-30A Isolated DC-DC Charger

12V to 12V Isolated DC-DC Charger with Bluetooth | 30A Continuous, 40A Peak


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
12

DESCRIPTION

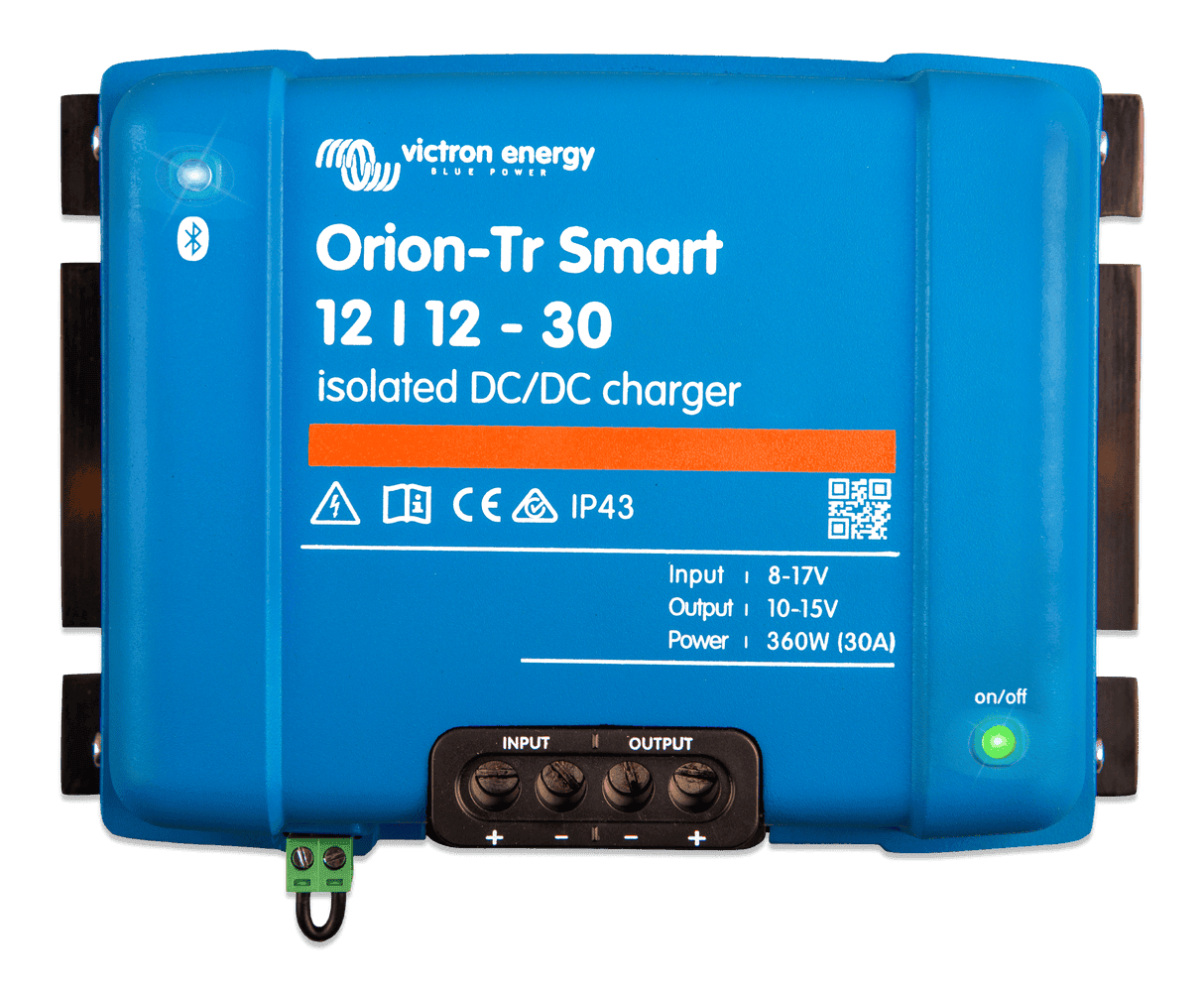

Victron 12V to 12V Orion-Tr Smart Isolated DC-DC Charger: Intelligent Power Conversion for Dual-Battery Systems

Efficient 12V to 12V DC-DC Charging with Adaptive 3-Stage Algorithm and Bluetooth Control

The Victron Orion-Tr Smart Isolated DC-DC Charger delivers precise, regulated power conversion from a 12V alternator or battery bank to a 12V auxiliary system. Designed for vehicles, marine vessels, and off-grid installations, this charger solves the common challenge of safely stepping down voltage while maintaining battery health. Unlike basic converters that risk overcharging or undercharging, the Orion-Tr Smart uses an adaptive 3-stage charge algorithm (Bulk, Absorption, Float) to extend battery life and ensure reliable starts every time.

With 30A of continuous current and a peak output of 40A for short surges, it handles demanding loads such as fridge compressors, lighting, and communication equipment. The integrated Bluetooth Smart interface allows full configuration and monitoring via the VictronConnect app, eliminating the need for additional displays or complex wiring. This isolated design provides galvanic isolation up to 200V DC between input, output, and case, protecting sensitive electronics from ground loops and voltage spikes—a critical advantage in mixed-voltage systems.

Smart Alternator Compatibility and Programmable Charge Profiles

Modern vehicles with Euro 5/6 compliant smart alternators often output variable voltage, which can confuse standard DC-DC chargers. The Orion-Tr Smart features an engine detection mechanism that prevents unwanted discharge of the starter battery when the engine is off. You can program custom charge profiles to match your battery chemistry—whether AGM, Gel, Flooded, or Lithium—ensuring optimal charging without manual intervention. The adjustable output voltage range of 10-15V provides flexibility for sensitive loads or specific battery requirements.

Robust Design for Harsh Australian Conditions

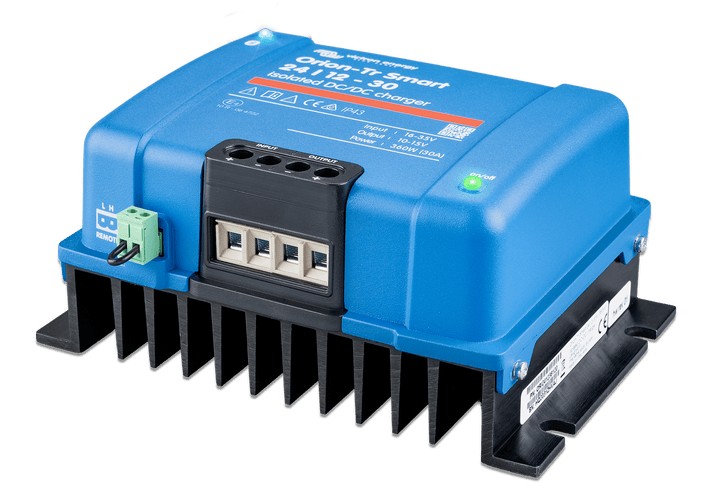

Built to withstand the rigours of outback travel and coastal marine environments, the Orion-Tr Smart features an IP43 protection rating when installed with screw terminals facing downward. The extruded aluminium heatsink provides efficient passive cooling, allowing continuous operation at full rated power up to 40°C ambient temperature. Screw terminals accept cables up to 16 mm² (AWG6), ensuring low-resistance connections and minimal voltage drop over long cable runs. The compact footprint of 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) and weight of 1.8 kg (3 lb) simplifies installation in tight spaces such as under-bonnet, behind panels, or in battery compartments.

Key Features

  • Adaptive 3-stage charge algorithm with programmable battery presets for AGM, Gel, Flooded, and Lithium
  • Bluetooth Smart for wireless monitoring, configuration, and firmware updates via VictronConnect app
  • Galvanic isolation (200V DC) eliminates ground loop interference and protects against voltage transients
  • Engine detection prevents starter battery drain when the alternator is not running

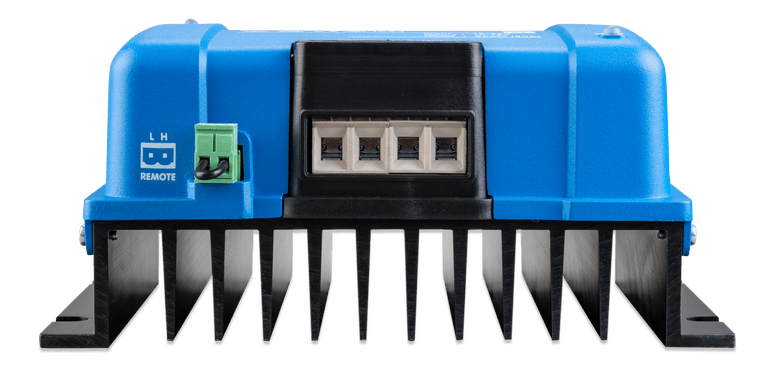

  • Remote on/off terminal for integration with battery management systems or manual switches
  • Parallel operation supported for higher current requirements
  • Wide input voltage range of 10-17V accommodates voltage fluctuations in 12V systems
  • Short circuit, over-temperature, and reverse polarity protection

Applications

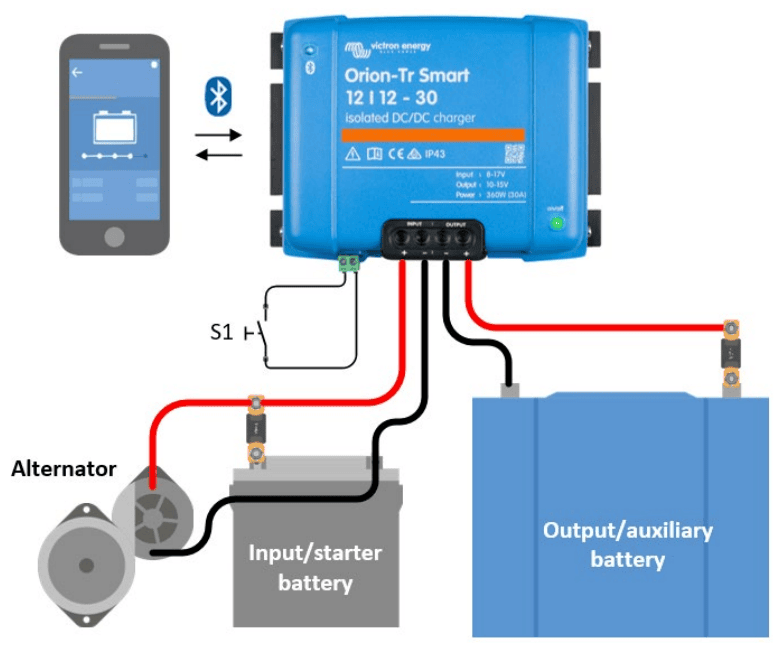

This charger is ideal for powering 12V house batteries in trucks, buses, motorhomes, and boats with 12V electrical systems. It also suits off-grid solar installations where a 12V battery bank needs to supply 12V loads, or in industrial equipment requiring stable 12V power from a 12V source. The isolated design makes it safe for use in systems with sensitive communication or navigation electronics.

Whether you're upgrading a dual-battery system in a 4WD, fitting out a marine electronics suite, or building a remote power system, the Victron Orion-Tr Smart provides the reliability and intelligence needed for critical power conversion. Order your Victron Orion-Tr Smart Isolated DC-DC Charger today and experience seamless 12V to 12V power management with full app control.


SKU: VIC-ORI121236120

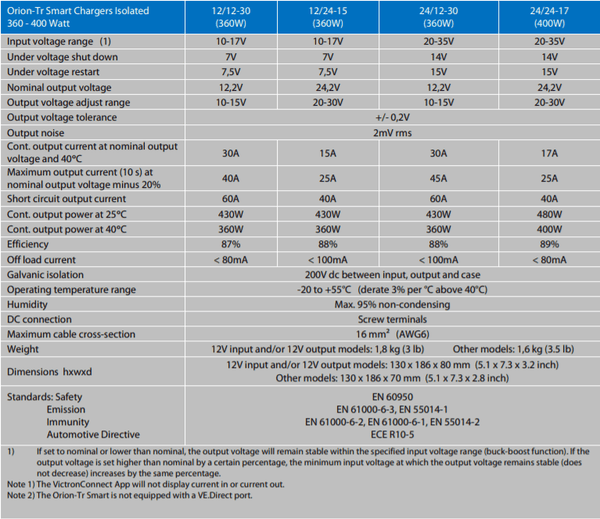

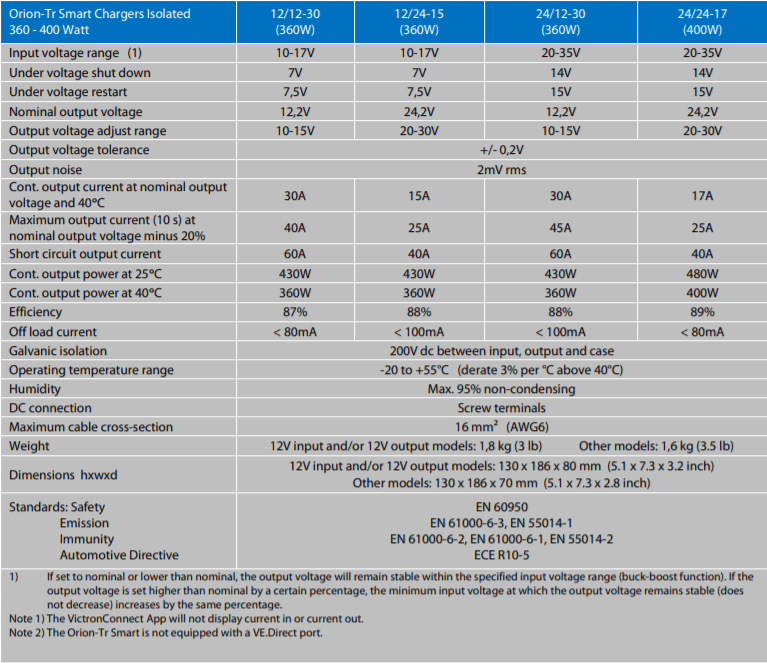

SPECIFICATIONS

Specifications

Model 12/12-30 (360W) Orion-Tr Smart DC-DC Charger Isolated
Input voltage range (1) 10-17V
Under voltage shut down 7V
Under voltage restart 7.5V
Nominal output voltage 12.2V
Output voltage adjust range 10-15V
Output voltage tolerance +/- 0.2V
Output noise 2mV rms
Cont. output current at nominal output voltage and 40°C 30A
Maximum output current (10 s) at nominal output voltage minus 20% 40A
Short circuit output current 60A
Cont. output power at 25°C 430W
Cont. output power at 40°C 360W
Efficiency 87%
Off load current <80mA
Galvanic isolation 200V dc between input, output and case
Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
Humidity Max. 95% non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² (AWG6)
Weight 1.8 kg (3 lb)

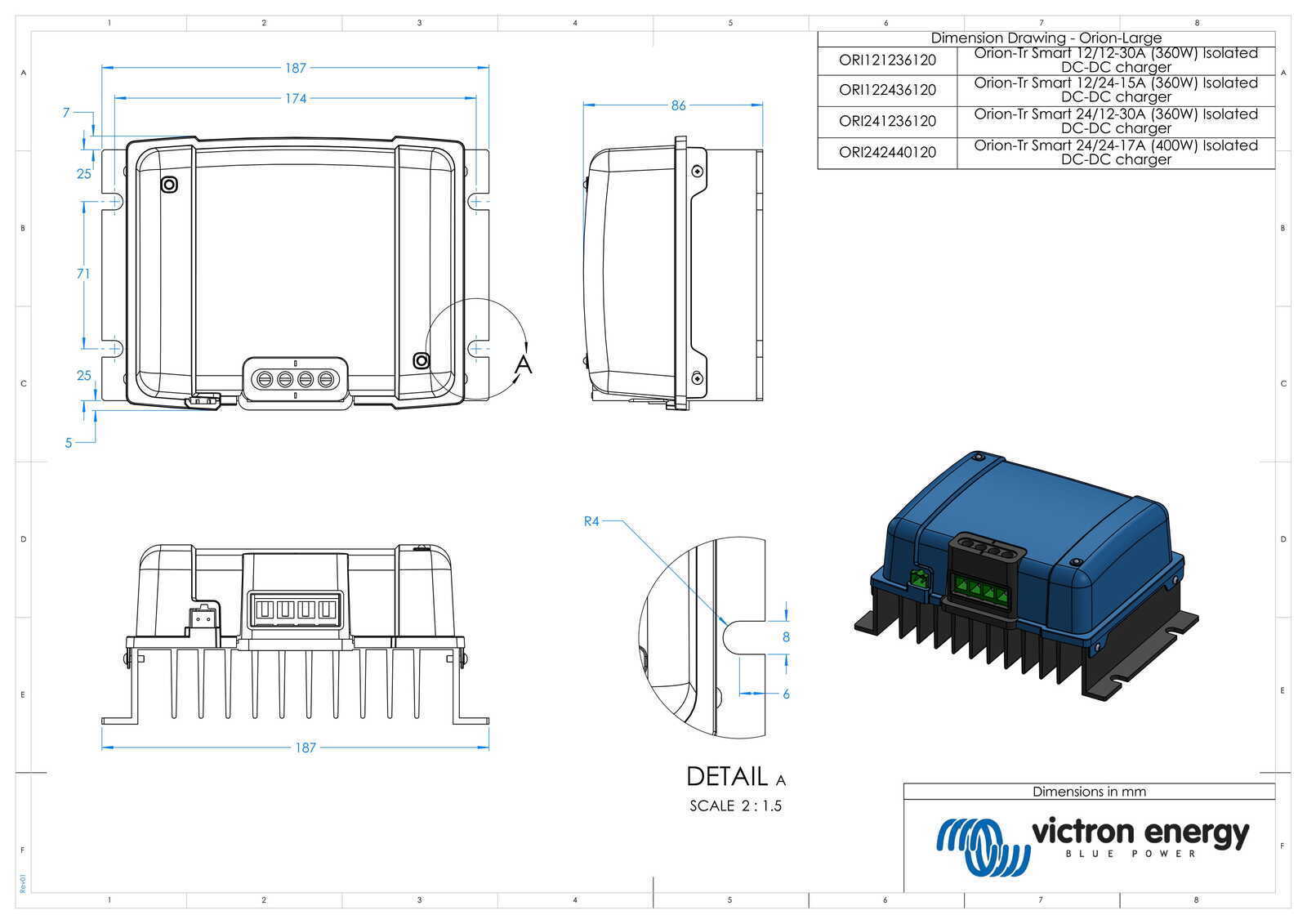

Dimensions hxwxd 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Standards: Safety, Emission, Immunity, Automotive Directive EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-5
  1. If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than the nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage.

Note 1) The VictronConnect App will not display current in or current out.

Note 2) The Orion-Tr Smart Charger is not equipped with a VE.Direct port.


SKU: VIC-ORI121236120
Barcode: 8719076047698
Model #: ORI121236120
MPN: ORI121236120

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
