Victron 4-Channel GX Tank 140 Level Sensor Interface

4-Channel USB Interface for 4-20mA & 0-10V Sensors with NMEA 2000


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
9

DESCRIPTION

Victron GX Tank 140: 4-Channel Tank Level Sensor Interface for Cerbo GX and GX Devices

Centralised Tank Monitoring for Off-Grid, Marine, and RV Systems

The Victron GX Tank 140 (BPP920140100) is a dedicated USB accessory that enables precise, real-time monitoring of up to four tank levels directly through your Victron GX device, such as the Cerbo GX. Designed for seamless integration with the Victron Remote Management (VRM) portal and local display, it consolidates critical fluid data—fresh water, fuel, waste, and more—into a single, intuitive interface. This eliminates guesswork and manual checks, providing reliable insight for off-grid energy systems, marine vessels, and recreational vehicles.

Unlike generic tank sensor adapters, the GX Tank 140 is engineered for robust electrical isolation and configurable signal processing, reducing the risk of ground loops and false readings. It supports both 4 to 20 mA current senders and 0 to 10 V voltage senders, offering flexibility for a wide range of existing tank sensors. With built-in 24 VDC power on two channels and fused external power support on the others, installation is straightforward, even in complex setups.

Key Features

  • Monitors up to four tanks simultaneously via USB connection to any Victron GX device
  • Compatible with 4 to 20 mA and 0 to 10 V sensors, including mixed configurations
  • Integrated 24 VDC supply on channels 3 and 4 powers sensors directly, simplifying wiring
  • Configurable input ranges allow use of partial-scale sensors, such as 0 to 5 V
  • Adjustable averaging filter (1 to 60 seconds) delivers stable, damped readings
  • Automatic fault detection triggers alarms for out-of-range values or wiring issues
  • NMEA 2000 output via GX device enables tank level display on marine MFDs
  • USB-powered with 1.5 m cable—no extra power supply needed for the unit itself

Precision Monitoring with Advanced Signal Handling

The GX Tank 140 addresses common challenges in tank level sensing, such as erratic readings from sloshing fluids or sensor noise. Its configurable damping filter smooths data over a user-defined period, ensuring the displayed level reflects actual volume rather than transient fluctuations. The device also validates sensor signals continuously; if a sensor fails or wiring becomes compromised, an immediate alarm notifies you via the GX system, helping prevent undetected overflows or dry runs.

For marine applications, the GX Tank 140 extends its utility by relaying tank data onto the NMEA 2000 network. This allows multifunction displays (MFDs) and other onboard instruments to access fuel, water, and waste levels without additional gateways, streamlining your helm’s information layout.

Flexible Configuration for Diverse Tank Types

Supporting six fluid types—fuel, fresh water, waste water, live well, oil, and black water—the GX Tank 140 adapts to virtually any liquid storage monitoring need. Volume can be displayed in litres, cubic metres, imperial gallons, or US gallons. For irregularly shaped tanks, up to ten custom shape points can be defined, enabling accurate volume calculation even in non-linear containers. This level of customisation is rarely found in standard sensor interfaces, making the GX Tank 140 a valuable tool for precise resource management.

Simplified Installation and Reliable Operation

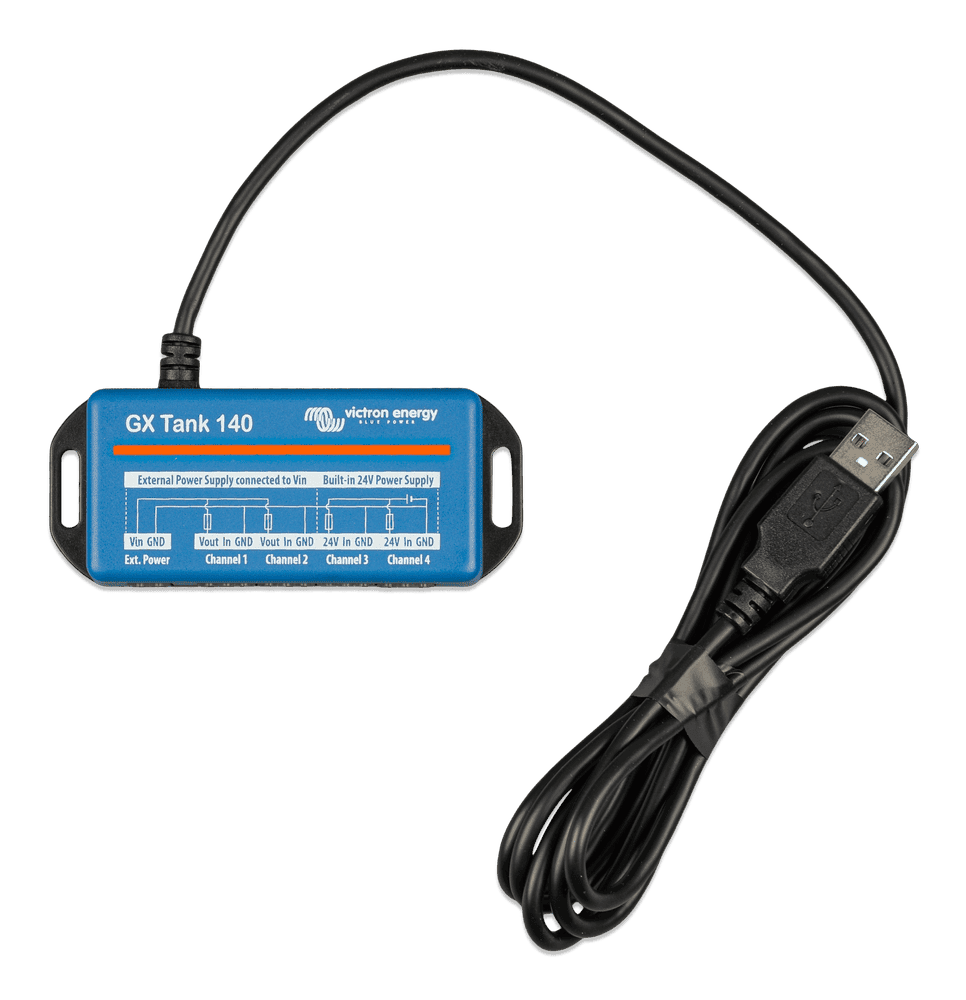

Installation is streamlined: connect the GX Tank 140 to your Cerbo GX or other GX device via the included USB cable, and it powers up immediately—no external power brick required. Channels 3 and 4 provide isolated 24 VDC to drive compatible sensors, while channels 1 and 2 accept externally powered sensors through a dedicated terminal with self-resetting fuses (20 mA). All four channels share a common ground, so careful planning of sensor wiring is recommended to avoid potential interaction, though the USB interface remains electrically isolated from the sensor side for system safety.

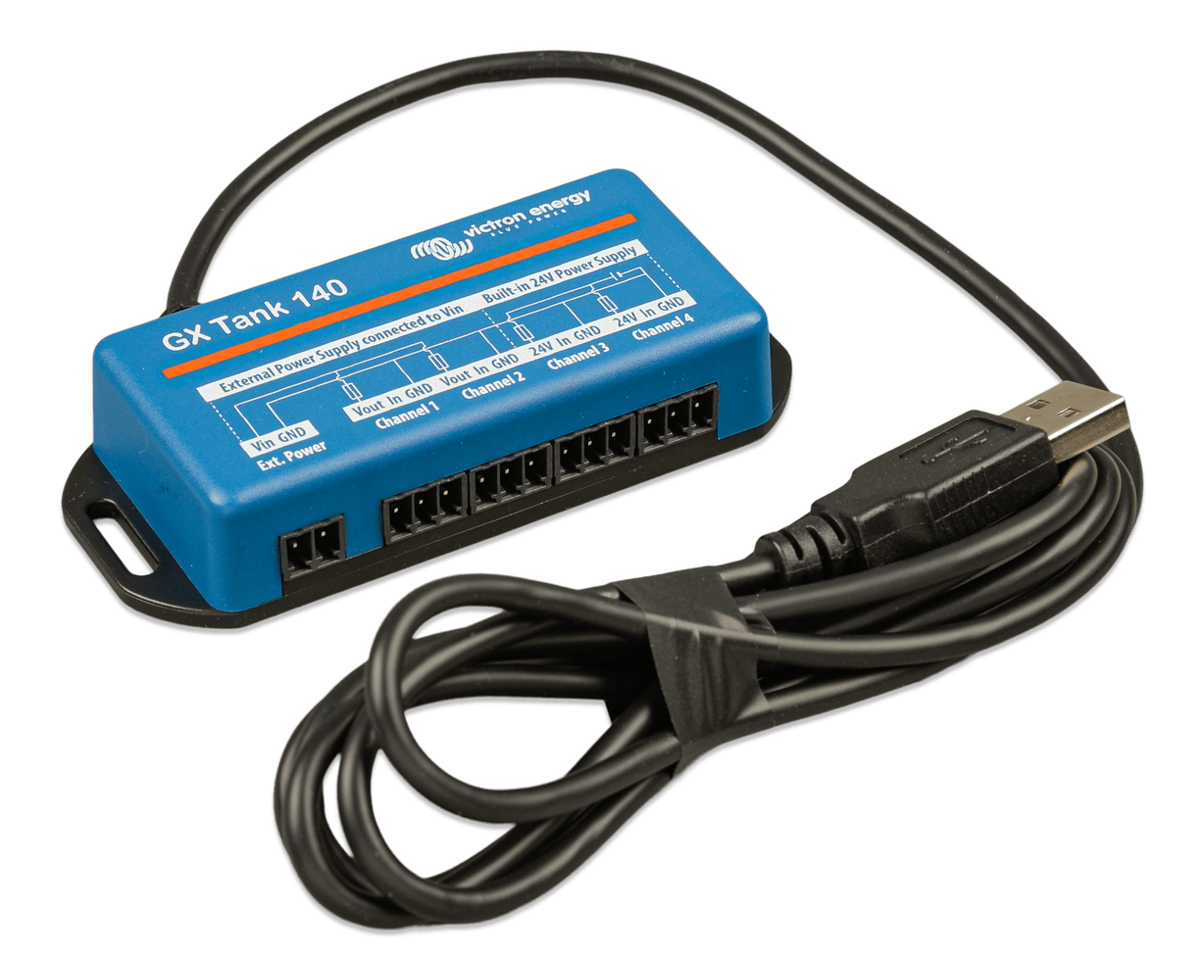

The compact, rugged enclosure features integrated mounting flanges for secure installation in equipment bays or bulkheads. Side-entry terminal blocks keep wiring neat and accessible, while the reinforced cable gland protects the USB connection from strain and vibration.

Enhance Your Energy Ecosystem with Integrated Tank Data

By adding tank level monitoring to your Victron GX system, you gain a holistic view of your off-grid or mobile resource status. Pair the GX Tank 140 with a Cerbo GX and VRM portal to track not only battery state, solar yield, and inverter loads, but also water and fuel reserves—all from a single dashboard. This integration supports smarter decision-making, whether you’re managing a remote homestead, a cruising yacht, or a caravan expedition.

Ready to eliminate manual tank checks and gain real-time visibility? Add the Victron GX Tank 140 to your monitoring setup today and experience the confidence of knowing your fluid levels at a glance, wherever you are.


SKU: VIC-BPP920140100

SPECIFICATIONS

Specifications

Channels4
Sensor Input Types4 to 20 mA or 0 to 10 V tank level sensors, including a combination of both
Connection To GX DeviceUSB interface
Unit Power SupplySelf powered from USB interface
Channels 1 And 2 Sensor PowerExternal power supply via the Ext. Power connector
Channels 1 And 2 FuseSelf-resetting fuse (20 mA)
Channels 3 And 4 Sensor PowerInternal 24 VDC power supply, isolated from USB
Channels 3 And 4 Current LimitMaximum 20 mA per channel
Configurable Input RangeFor example to connect a 0 to 5 V sensor
Averaging Filter1 to 60 seconds
USB Cable Length1.5 m
Electrical IsolationUSB cable electrically isolated from the sensors
GND ConnectionsAll four channels are internally connected and are not individually isolated from each other
Supported Fluid TypesFuel, Fresh Water, Waste Water, Live Well, Oil and Black Water
Supported Volume UnitsLitre, Cubic meter, Imperial gallon and U.S. gallon
Custom Shape PositionsUp to 10
Tank Pump ControlFull integration with a GX device for tank pump (relay) control
MonitoringGX device screen, Remote Console on LAN and VRM Portal

SKU: VIC-BPP920140100
Barcode: 8719076053781
Model #: BPP920140100
MPN: BPP920140100
