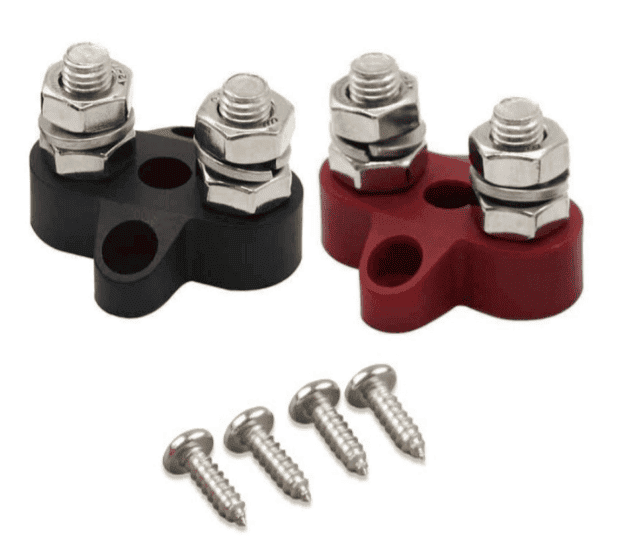

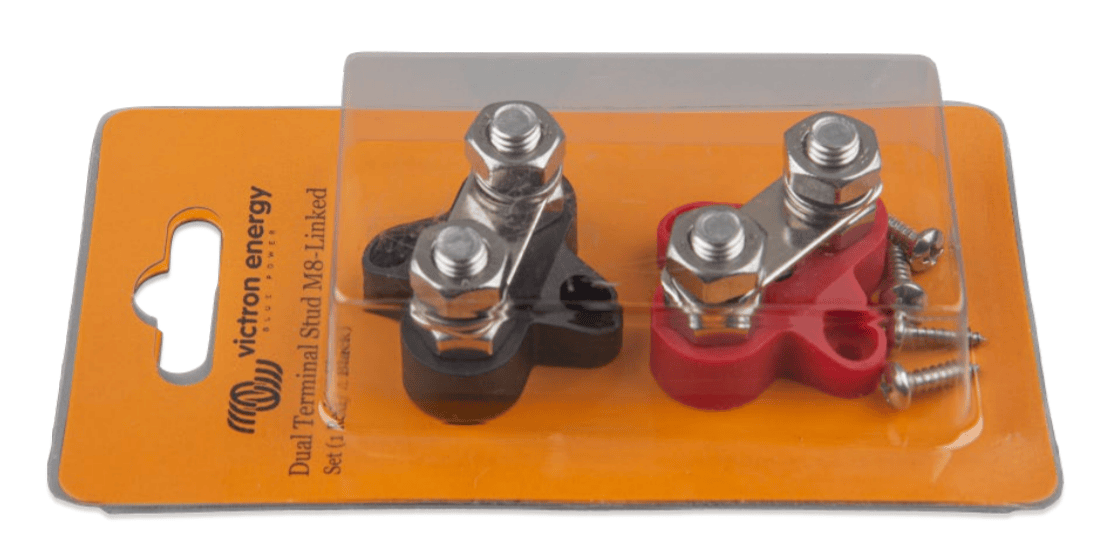

Victron Dual Terminal Stud M8-Linked Set (1 Red & 1 Black)
150A 70VDC - Glass Fibre Reinforced Base - Tin-Plated Copper Busbar
Victron 24V 3000VA Phoenix Smart Inverter 24/3000DESCRIPTION
Victron Dual Terminal M8 Stud Set: Reliable 150A Power Distribution
When constructing high-current DC power systems for marine vessels, off-grid solar setups, or touring 4x4s, secure electrical connections are vital. The Victron Dual Terminal M8 Stud Set provides a professional, highly conductive junction point for joining heavy-duty cables. Rated for up to 150A and 70VDC, these terminal blocks easily accommodate 12V, 24V, and 48V electrical configurations. By centralising your cable connections on a dedicated stud, you eliminate the risk of stacking too many ring terminals directly on a battery post, ensuring optimal current flow and a much cleaner electrical layout.
Engineered for High-Current Stability
Standard distribution posts often suffer from voltage drops or excessive heat buildup under heavy electrical loads. This Victron M8 terminal stud mitigates those risks by utilising a robust 1.0 x 13 mm tin-plated copper busbar strip to connect the dual studs within each block. This highly conductive core is paired with an impressive 150A current carrying capacity, making it exceptionally well suited for demanding applications such as inverter supply lines, auxiliary battery linking, or central grounding points.
Marine-Grade Stainless Steel & Reinforced Base
Exposure to continuous vibration, moisture, and extreme temperatures can degrade substandard electrical components over time. To combat this, the terminal studs and corresponding hex nuts are constructed from premium stainless steel, offering outstanding resistance to corrosion in harsh coastal or automotive environments.
The base material is equally resilient. Moulded from glass fibre reinforced nylon, the housing provides exceptional electrical insulation while resisting the cracking or warping that often occurs when tightening heavy cables. This robust base ensures you can safely apply the recommended 10 N·m (Approx. 90 lbf·inch) fastening torque, creating a solid, low-resistance connection that holds firm over corrugated outback tracks or choppy waters.
Compact, Colour-Coded Design
Space is often at a premium in battery compartments, caravan electrical cabinets, and boat engine bays. Measuring just 45 x 43 x 32 mm, these dual terminal studs integrate seamlessly into tight enclosures. The set includes one dedicated red block for positive connections and one black block for negative or ground connections. This distinct colour coding allows for immediate polarity identification, drastically reducing the risk of wiring errors during installation or future system maintenance.
Key System Advantages
- Maximum continuous current capacity of 150A for robust power transfer (*Note: typical de-rating factors apply based on ambient conditions)
- Wide voltage compatibility up to 70VDC, fully supporting 12V, 24V, and 48V electrical architectures
- M8 (Approx. 5/16 inch) stainless steel studs and hex nuts ensure reliable, corrosion-resistant fastening
- Heavy-duty glass fibre reinforced nylon bases withstand high torque and extreme mechanical vibration
- Internal tin-plated copper busbar strip maintains superior conductivity between the dual studs
- Colour-coded housings (one red, one black) streamline safe and accurate installation
Secure your high-current cabling with hardware built to perform. Upgrade your DC electrical architecture by adding the Victron Dual Terminal M8 Stud Set to your setup today, ensuring a safe, efficient, and professionally organised power distribution network.
SKU: VIC-VBB413020010

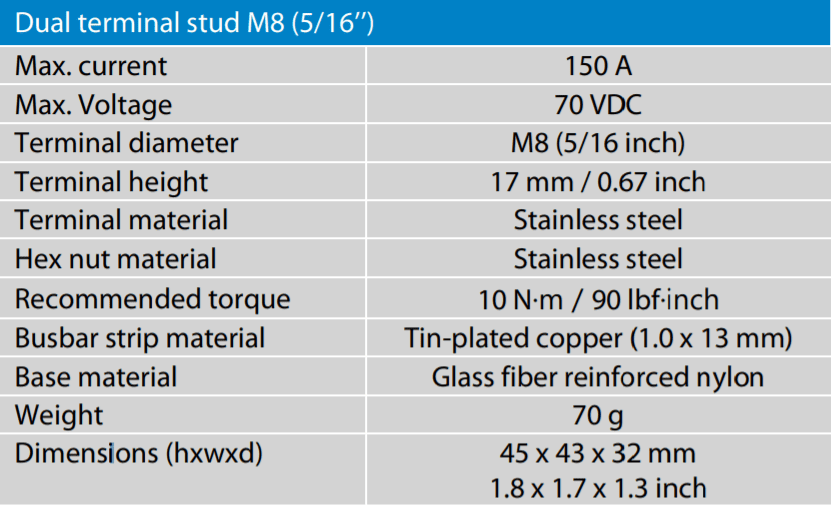

SPECIFICATIONS
Specifications
| Feature | Specification |
|---|---|
| Terminal Type | Dual terminal stud M8 (5/16’’) |
| Max. Current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal Diameter | M8 (5/16 inch) |
| Terminal Height | 17 mm / 0.67 inch |
| Terminal Material | Stainless steel |
| Hex Nut Material | Stainless steel |
| Recommended Torque | 10 N·m / 90 lbf·inch |
| Busbar Strip Material | Tin-plated copper (1.0 x 13 mm) |
| Base Material | Glass fiber reinforced nylon |
| Weight | 70 g |
| Dimensions (HxWxD) | 45 x 43 x 32 mm / 1.8 x 1.7 x 1.3 inch |
| SKU: | VIC-VBB413020010 |
| Barcode: | 8719076052241 |
| Model #: | VBB413020010 |
| MPN: | VBB413020010 |
