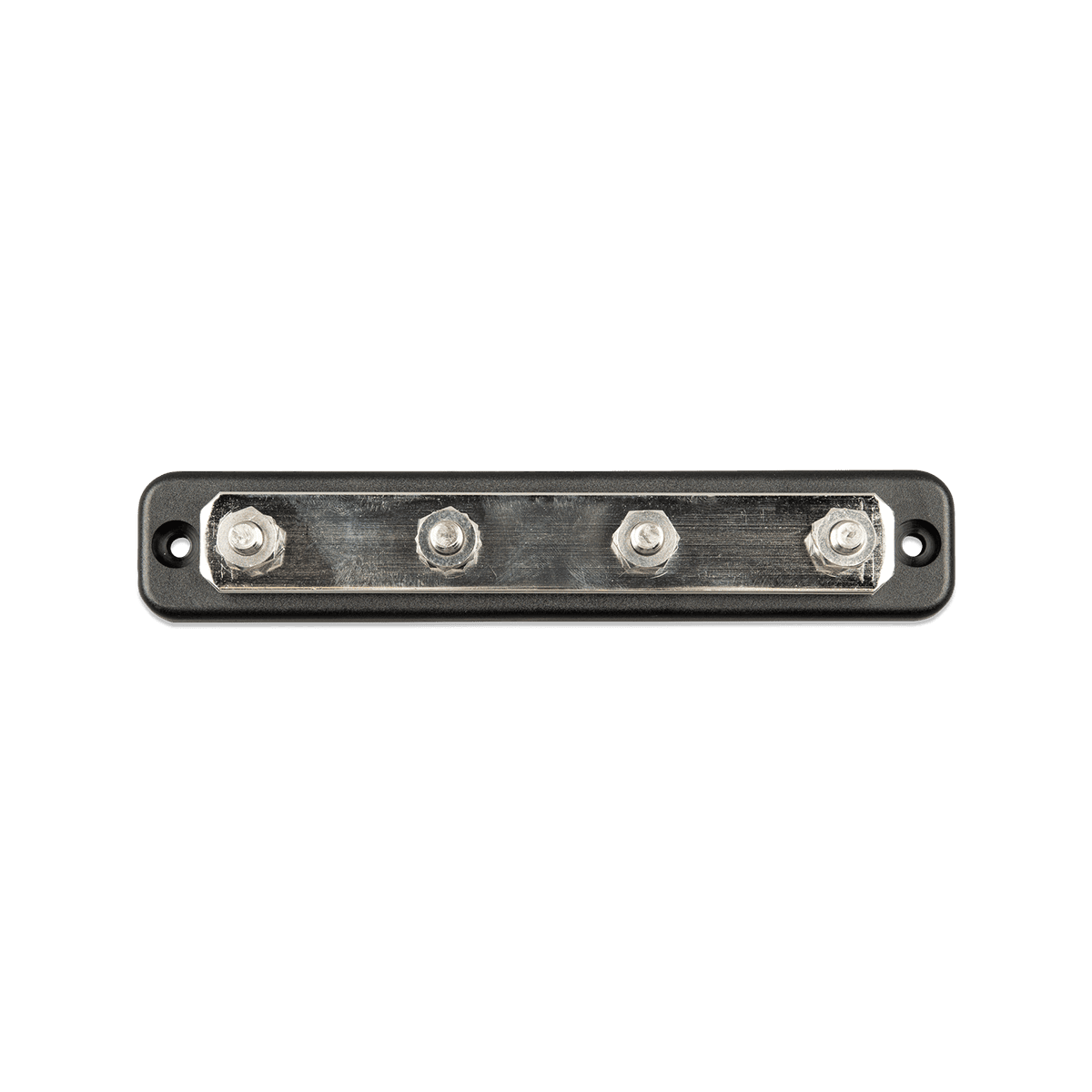

Victron Busbar 250A 4P/Terminals & Cover

Suits 12V to 48V Systems - Tin-Plated Copper Strip & 8mm Studs


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
4

DESCRIPTION

Robust High-Current Distribution for Off-Grid and Marine Systems

Managing heavy battery cables and multiple DC loads requires a secure, highly conductive connection point. The Victron 250A 4-post bus bar provides a reliable solution for consolidating your power distribution. Whether you are wiring a complex solar array, upgrading a marine vessel, or building an off-grid caravan electrical system, this unit ensures your connections remain safe, organised, and electrically efficient.

By routing your positive or negative lines through a central hub, you eliminate the clutter of stacking multiple ring terminals directly onto your battery posts. This not only cleans up your installation but drastically reduces the risk of high-resistance connections and voltage drop.

Engineered for Maximum Conductivity and Durability

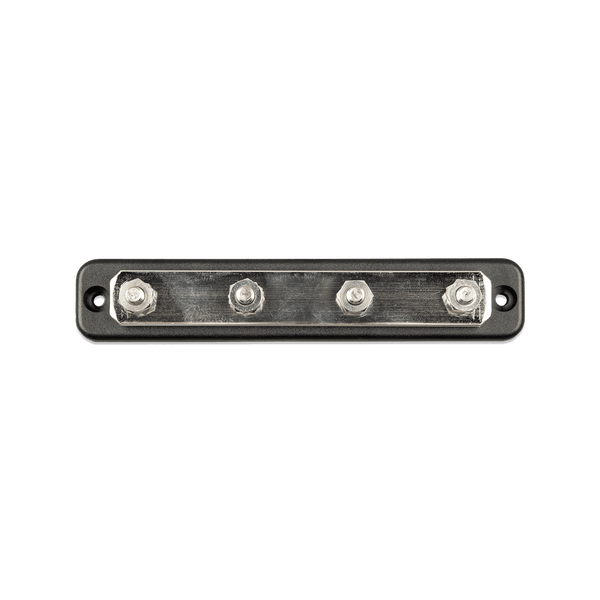

At the core of this Victron busbar is a heavy-duty 5 x 24 mm tin-plated copper strip. Copper offers exceptional electrical conductivity, while the tin plating provides essential corrosion resistance, making it highly suitable for demanding marine environments and humid climates.

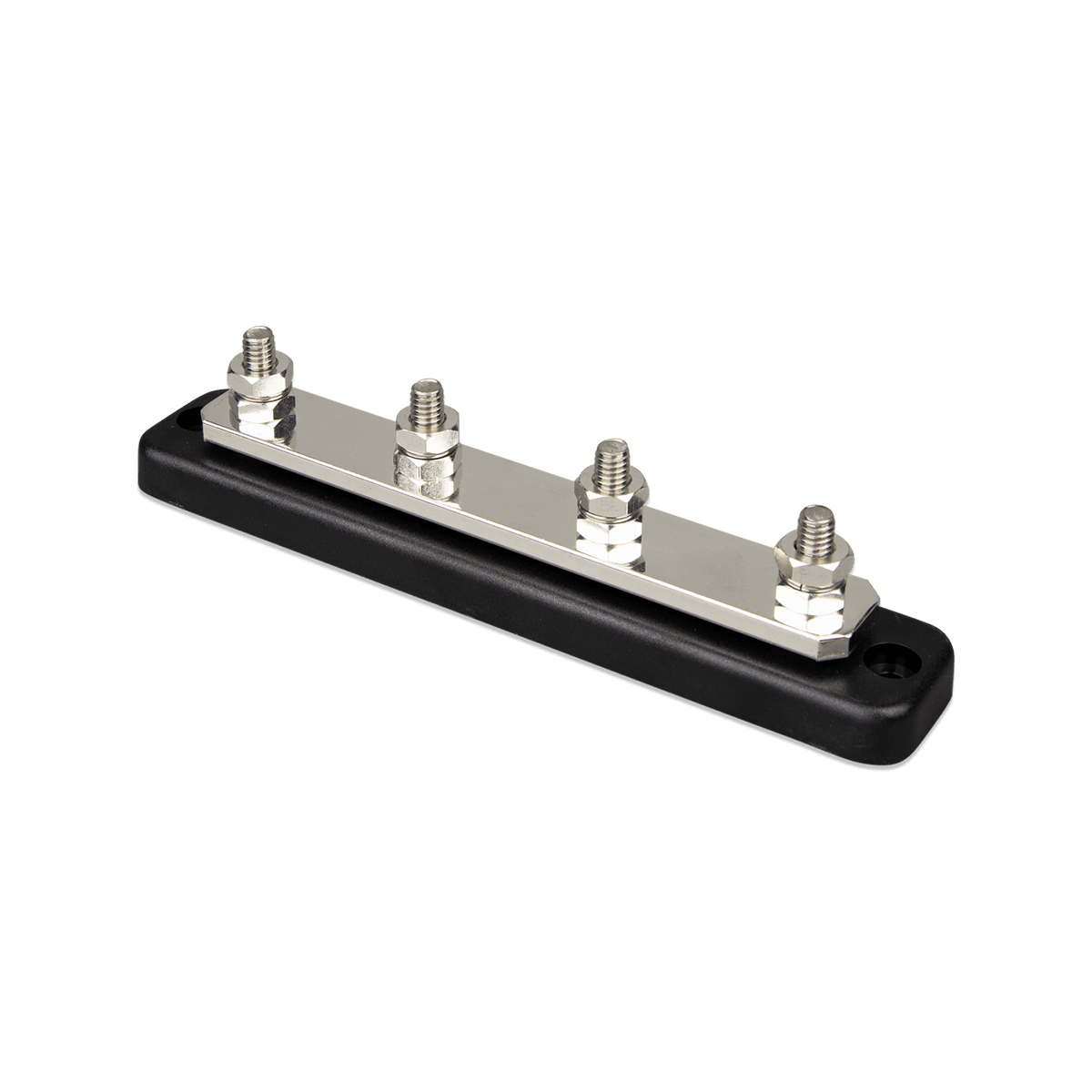

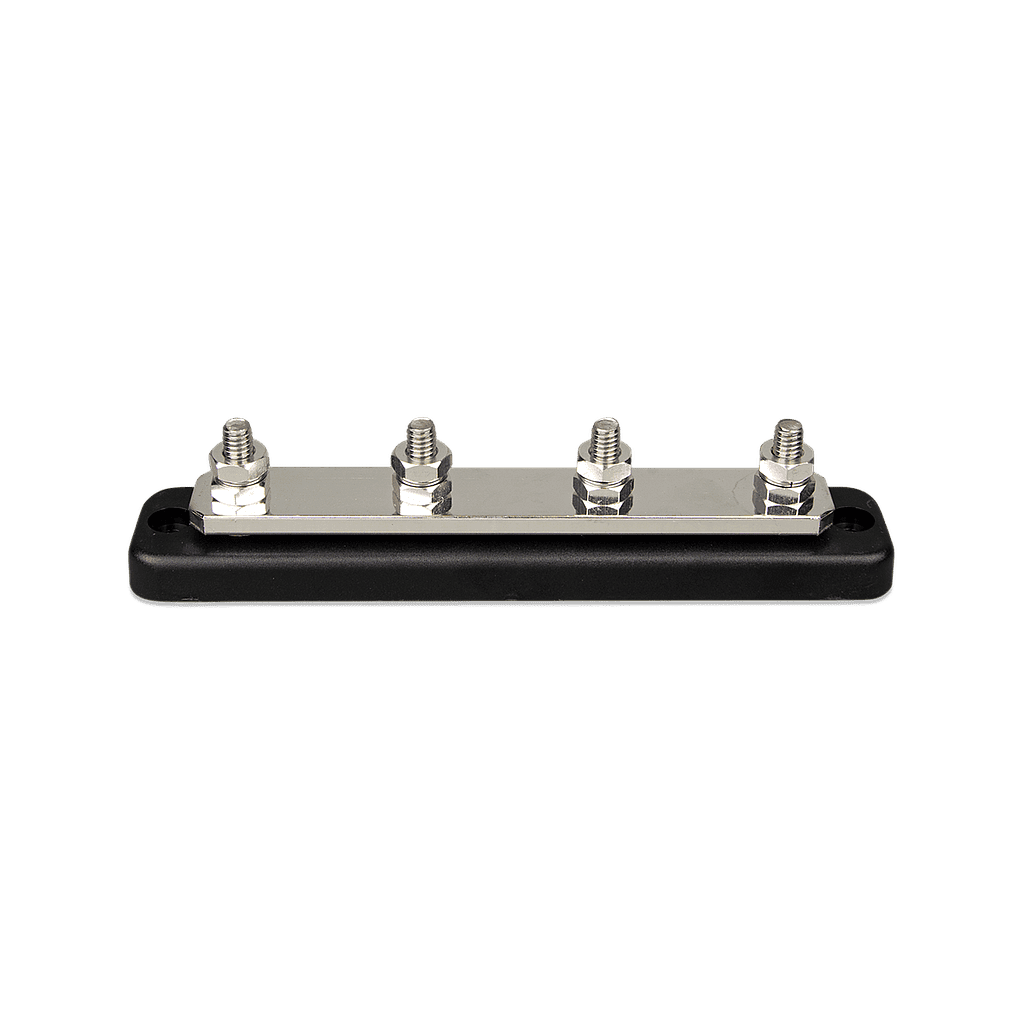

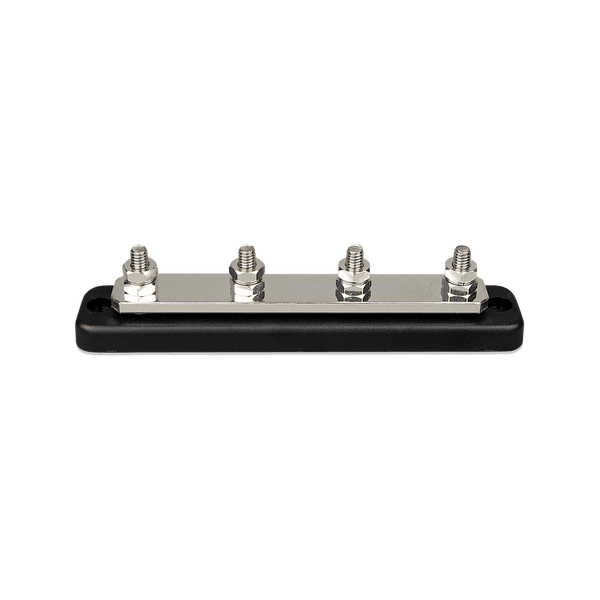

The unit features four 8 mm (approx. 5/16") stainless steel terminal studs. Stainless steel provides the mechanical strength needed for secure fastening. Because the studs are insert-molded directly into the base, they withstand high torque (up to 13 Nm) without spinning or breaking loose. To ensure the best possible electrical contact between your cable lugs and the busbar strip, tin-plated copper hex nuts are provided, offering a superior connection compared to standard steel hardware.

Uncompromising Safety with Included Protective Cover

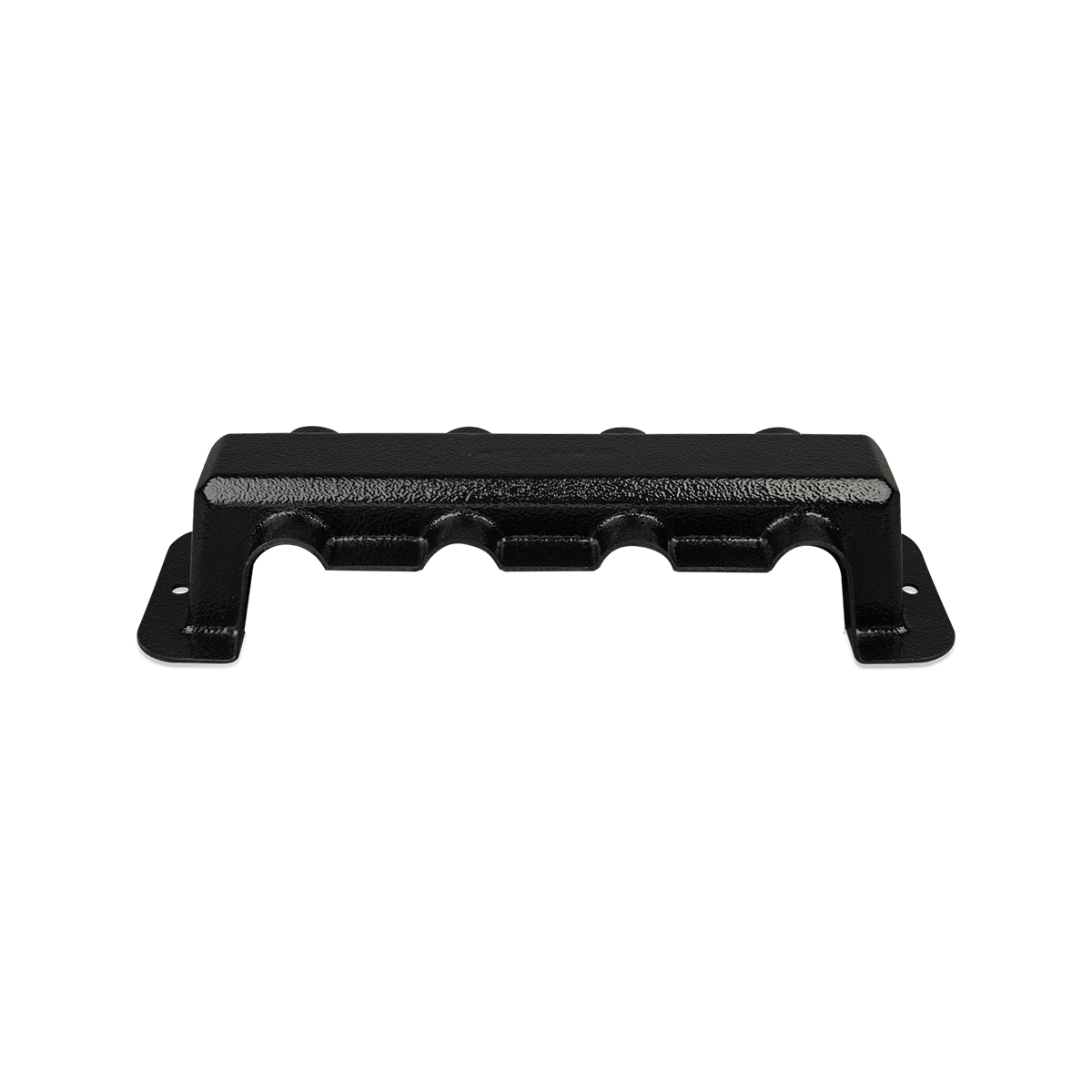

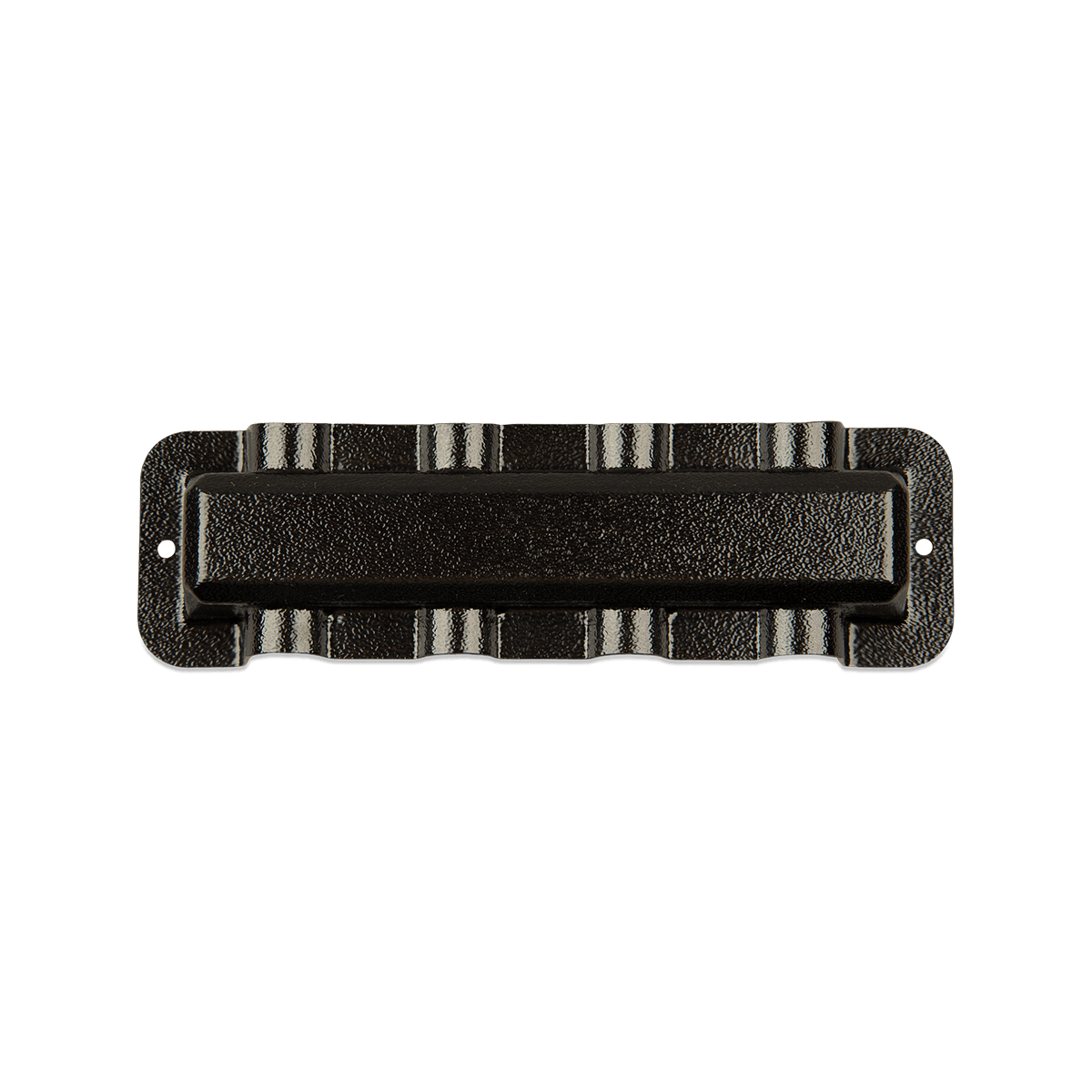

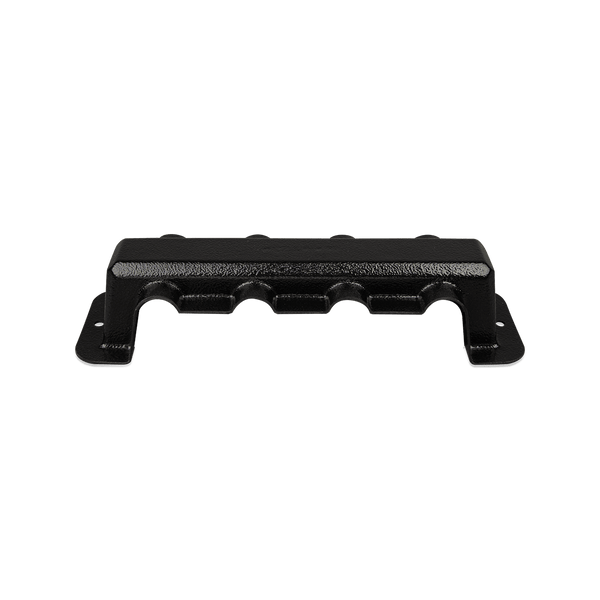

Safety is paramount in any high-current DC system. Exposed terminals present a serious risk of accidental short circuits from dropped tools or shifting metal components. This unit operates flawlessly as a 12V busbar with cover, while also easily handling higher voltages. The included black ABS protective cover snaps securely into place, insulating the live connections. The cover features carefully designed side cutouts, allowing thick battery cables to be routed neatly without compromising the physical protection.

Furthermore, the base is constructed from flame-retardant ABS plastic rated to UL 94 V-0 standards. The mounting holes are recessed beneath the main copper strip, ensuring your mounting screws are physically isolated from the live conductive path.

Versatile Voltage Compatibility

While frequently utilised in standard 12V automotive and caravan builds, this 250A bus bar boasts a maximum voltage rating of 70 VDC. This broad operating range makes it fully compatible with 24V and 48V battery banks found in advanced off-grid solar setups and telecommunications infrastructure.

Key Features

  • High-Capacity Rating: Rated for a maximum continuous current of 250A.
  • Broad Voltage Compatibility: Maximum 70 VDC, perfect for 12V, 24V, and 48V electrical systems.
  • Premium Conductors: Tin-plated copper busbar strip for low resistance and superior corrosion protection.
  • Heavy-Duty Studs: Four 8 mm (approx. 5/16") insert-molded stainless steel studs allow for high-torque tightening.
  • Enhanced Hardware: Includes tin-plated copper hex nuts for optimal electrical transfer.
  • Safety First: Flame-retardant ABS base (UL 94 V-0) and a durable busbar cover (UL 94 V-2) to prevent accidental shorts.
  • Compact Footprint: Measures 48 x 237 x 70 mm with the cover installed, allowing for neat integration into tight battery compartments.

Streamline Your Electrical Layout

A professional installation demands proper cable management and secure power transfer. Upgrade your system architecture with this dependable Victron energy bus bar. Order today to build a cleaner, safer, and more efficient DC power distribution network for your next mobile or off-grid project.


SKU: VIC-VBB125040010

SPECIFICATIONS

Specifications

Feature Specification
Max. Current Rating 250 A
Max. Voltage Rating 70 VDC
Terminal Diameter 5/16 inch / 8 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 110 lbf·inch / 13 N·m
Busbar Strip Material Tin-plated copper (5 x 24 mm)
Base Material ABS, black, UL 94 V-0
Cover Material ABS, black, UL 94 V-2
Weight, 4 Terminals 0.5 lb / 0.24 kg

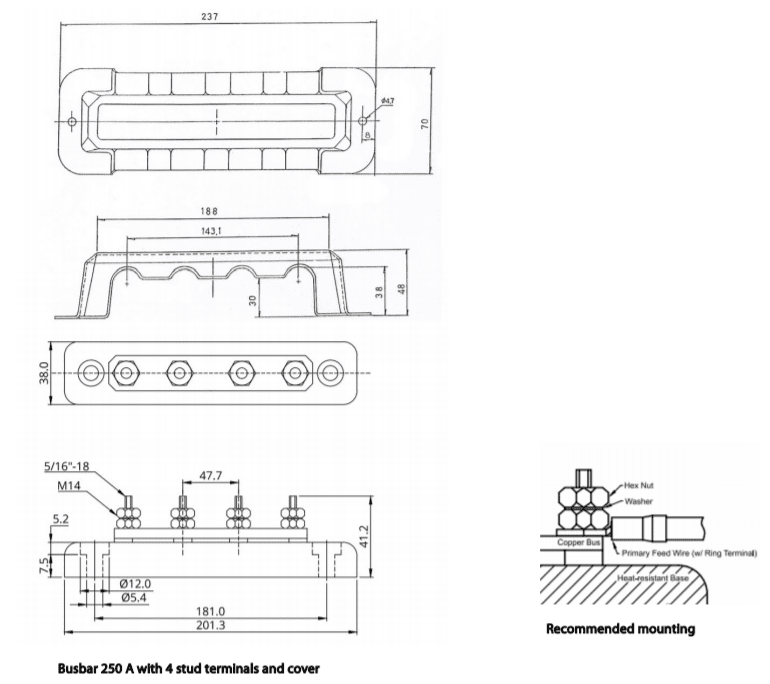

Dimensions (4 Terminals) (HxWxD) with Cover 1.9 x 9.4 x 2.8 inch / 48 x 237 x 70 mm

SKU: VIC-VBB125040010
Barcode: 8719076052210
Model #: VBB125040010
MPN: VBB125040010
