Victron Busbar 250A 2P/Terminals with 6 Screws & Cover

70VDC Max, Tin-Plated Copper Strip & Flame-Retardant ABS Base


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
3

DESCRIPTION

Professional DC Power Distribution for High-Current Systems

When designing a reliable electrical architecture for marine, recreational vehicle (RV), or off-grid solar applications, a robust distribution point is essential. The high-current 250A Victron busbar provides a professional solution to consolidate and manage your heavy-duty DC connections. Rated for up to 70VDC, it is exceptionally well suited for 12V, 24V, and 48V battery banks, offering a central hub that minimises voltage drop and organises complex wiring layouts.

Engineered for Superior Electrical Conductivity

At the core of this distribution block is a 6.35 x 25 mm tin-plated copper busbar strip. Copper is highly regarded for its exceptional electrical conductivity, while the tin plating provides a critical layer of defence against oxidation and corrosion. This is particularly important in harsh coastal or marine environments where bare metals degrade rapidly. The integration of 5/16" (Approx. 8mm) stainless steel terminal studs ensures that heavy-duty battery lugs remain firmly secured under high-torque conditions, eliminating the risk of loose connections that cause resistive heating.

Versatile Connection Options

Organising a battery compartment often involves terminating both large high-current cables and smaller accessory wires. This specific model features a two-stud design alongside six 10-24 (Approx. 4.8mm) terminal screws. This hybrid layout allows system builders to route main power lines (such as those from battery banks or large inverters) to the heavy-duty studs, while simultaneously distributing power to smaller loads like solar charge controllers, DC-DC chargers, or low-current fuse blocks via the six connection screws. By centralising these connections, you significantly reduce wire clutter, making future troubleshooting and system upgrades much more efficient.

Uncompromising Safety and Insulation

Safety is paramount when dealing with high-capacity battery banks capable of delivering immense short-circuit currents. Generic distribution blocks often compromise on insulation quality, increasing the risk of accidental shorts against adjacent metal surfaces. Victron Energy addresses this by utilising a high-grade ABS base material that complies with the strict UL 94 V-0 flame-retardant standard. Furthermore, a removable black ABS cover (UL 94 V-2) is included. This protective shroud shields exposed live terminals from accidental contact with dropped tools or loose conductive materials, reducing the likelihood of catastrophic electrical faults in tight battery enclosures.

Key System Benefits

  • Maximum Current Rating: 250A continuous capacity for demanding heavy-duty loads
  • Voltage Compatibility: Rated up to 70VDC, making it highly suitable for 12V, 24V, and 48V electrical setups
  • Primary Terminals: Two 5/16" (Approx. 8mm) stainless steel studs designed for high-torque connections
  • Secondary Terminals: Six 10-24 (Approx. 4.8mm) connection screws for routing smaller circuit wires
  • Corrosion Resistance: Tin-plated copper busbar strip ensures long-term performance in marine and off-grid conditions
  • Flame-Retardant Insulation: Black ABS base (UL 94 V-0) and matching protective cover included for maximum safety

Upgrade Your Electrical Architecture

Whether you are building a custom canopy power system, upgrading a marine vessel, or expanding a remote off-grid solar array, reliable power distribution is the foundation of a safe system. Ensure your heavy-duty DC connections are secure, protected, and well organised. Add this high-quality 250A distribution block to your electrical toolkit today to streamline your next wiring project and achieve a clean, professional finish.


SKU: VIC-VBB125020620

SPECIFICATIONS

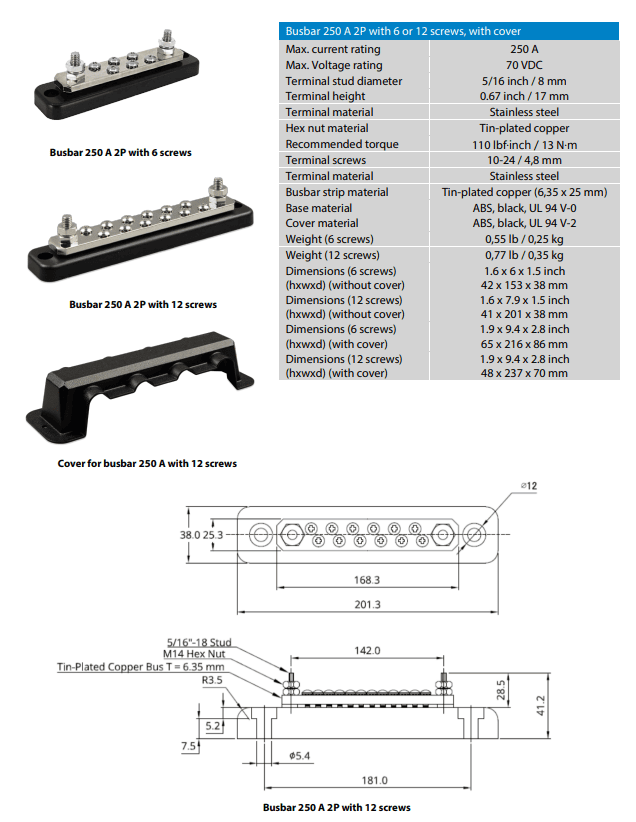

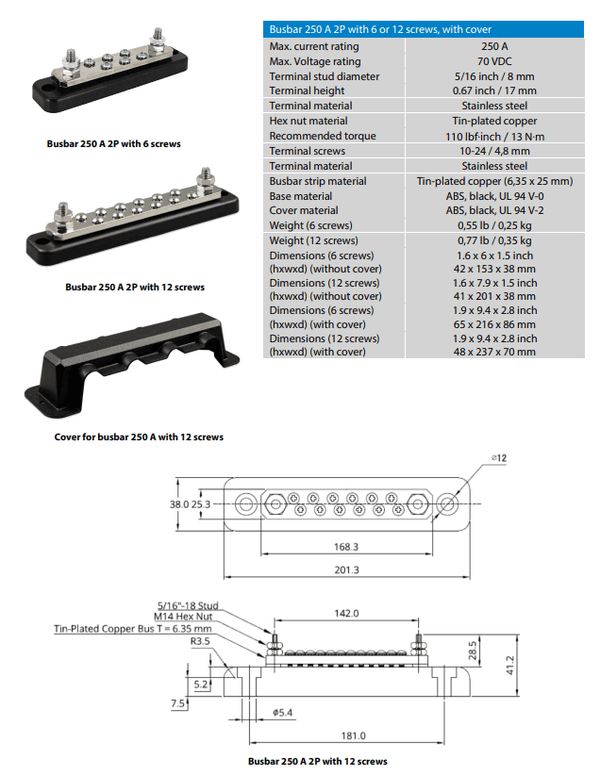

Specifications

Feature Specification (6 Screws)
Max. Current Rating 250 A
Max. Voltage Rating 70 VDC
Terminal Stud Diameter 5/16 inch / 8 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 110 lbf·inch / 13 N·m
Terminal Screws 10-24 / 4.8 mm
Busbar Strip Material Tin-plated copper (6.35 x 25 mm)
Base Material ABS, black, UL 94 V-0
Cover Material ABS, black, UL 94 V-2
Weight 0.55 lb / 0.25 kg
Dimensions (without cover) 1.6 x 6 x 1.5 inch / 42 x 153 x 38 mm
Dimensions (with cover) 1.9 x 9.4 x 2.8 inch / 65 x 216 x 86 mm

SKU: VIC-VBB125020620
Barcode: 8719076056386
Model #: VBB125020620
MPN: VBB125020620
