Victron Busbar 150A 2P/Terminals with 20 Screws & Cover

150A DC Distribution | 20 Screws & Cover | ¼" (6.35 mm) Studs


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
2

DESCRIPTION

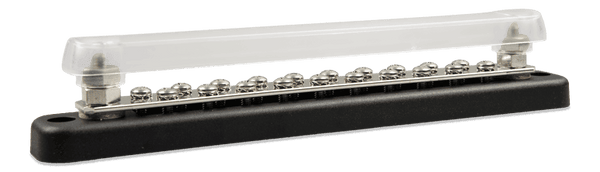

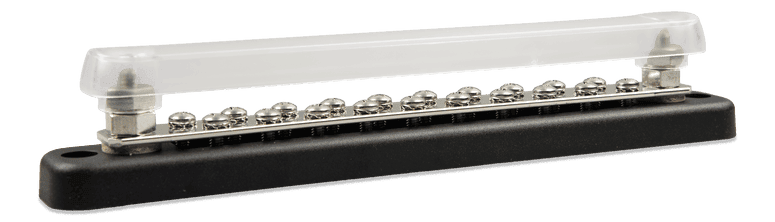

Victron 150A 2P Busbar: Centralised High-Current DC Distribution with 20 Screws and Protective Cover

Professional-Grade Power Distribution for Marine, RV, and Renewable Energy Systems

The Victron 150A 2P Busbar provides a robust, centralised solution for managing high-current DC connections in demanding environments. Engineered to consolidate multiple battery and equipment cables into a single, organised point, this busbar reduces wiring complexity and improves system reliability. With a 150 A continuous current rating and 70 VDC maximum voltage, it is well suited for 12 V, 24 V, and 48 V electrical architectures commonly found in marine vessels, recreational vehicles, and off-grid solar installations.

Unlike generic busbars that rely on basic brass terminals and exposed conductors, the Victron design integrates insert-moulded stainless steel studs and a tin-plated copper busbar strip. This construction delivers superior corrosion resistance and maintains low electrical resistance over time, even in salt-laden or high-humidity conditions. The result is a more stable voltage supply to connected loads and reduced risk of hot spots that can lead to premature component failure.

Key Features

  • 150 A continuous rating for high-current battery and inverter/charger connections
  • 20 stainless steel terminal screws (8-32 / 4.2 mm) for secure branch circuit wiring
  • Two ¼" (6.35 mm) main studs with tin-plated copper hex nuts for primary cable lugs
  • Insert-moulded studs eliminate loose backing nuts, enabling higher torque (7 N·m) and better conductivity

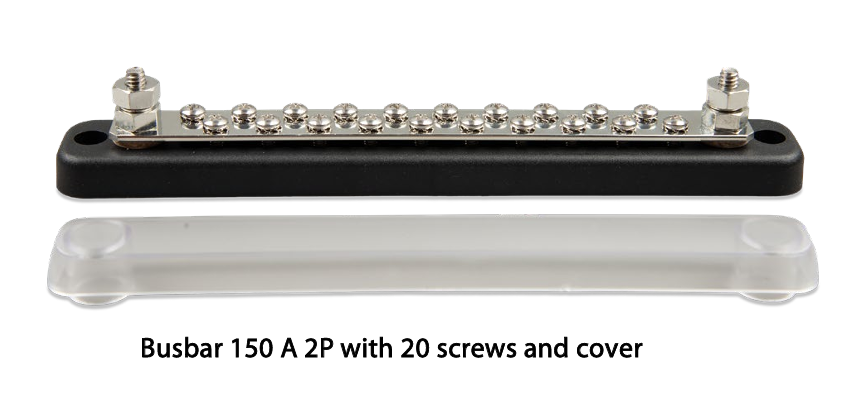

  • Clear polycarbonate cover protects against accidental shorts and debris ingress
  • Flame-retardant ABS base (UL 94 V-0) with pre-drilled mounting holes for secure installation

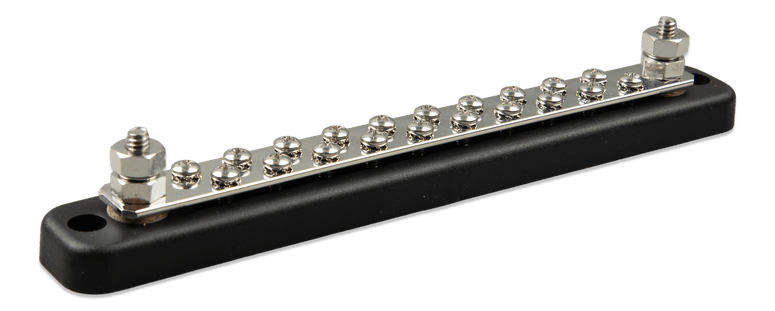

  • Raised bus design simplifies wire access and keeps cable runs tidy

Engineered for Demanding Environments

Electrical systems in boats, caravans, and remote power installations face unique challenges: vibration, temperature swings, and exposure to moisture. The Victron 150A 2P Busbar addresses these with materials selected for long-term durability. The tin-plated copper strip (2.4 x 19 mm) resists oxidation while maintaining high conductivity, and the stainless steel terminal hardware withstands repeated connection cycles without galling or seizing. The included clear polycarbonate cover snaps securely over the busbar, providing a physical barrier that helps prevent accidental contact with live terminals during maintenance or inspection.

Simplified Installation and Safer Operation

Mounting the busbar is straightforward thanks to the pre-drilled holes in the ABS base. The raised profile keeps cables off the mounting surface, reducing the chance of chafing and short circuits. By centralising connections, the busbar minimises the need for multiple inline splices or stacked ring terminals on battery posts, which can loosen over time and create high-resistance faults. This organised approach not only improves safety but also makes future system upgrades or troubleshooting significantly easier.

Versatile Applications

Whether you are tidying a cluttered battery compartment on a cruising yacht, building a reliable 12 V distribution panel for a camper trailer, or integrating a battery monitor shunt in a solar storage system, this busbar adapts to a wide range of configurations. Its 150 A capacity supports typical house battery banks and inverter/charger circuits, while the 20 screw terminals accommodate smaller branch loads such as lighting, pumps, and monitoring equipment.

For installations requiring higher current or additional terminals, Victron offers a range of busbars with different ratings and screw counts, allowing you to scale your system without compromising on quality or safety.

Upgrade Your DC Distribution Today

Choose the Victron 150A 2P Busbar with 20 Screws and Cover for a professional, reliable power distribution solution that simplifies wiring and enhances electrical safety. Add it to your system now and experience the difference that precision-engineered components make in your marine, RV, or renewable energy project.


SKU: VIC-VBB115022020

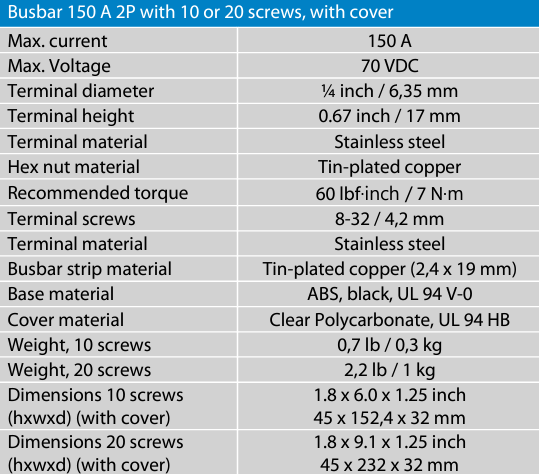

SPECIFICATIONS

Specifications

Model Busbar 150 A 2P 20 Screws
Cover Included
Max. Current 150 A
Max. Voltage 70 VDC
Terminal Diameter ¼ inch / 6.35 mm
Terminal Height 0.67 inch / 17 mm
Terminal Material Stainless steel
Hex Nut Material Tin-plated copper
Recommended Torque 60 lbf·inch / 7 N·m
Terminal Screws 8-32 / 4.2 mm
Busbar Strip Material Tin-plated copper (2.4 x 19 mm)
Base Material ABS, black, UL 94 V-0
Cover Material Clear Polycarbonate, UL 94 HB
Weight (10 screws) 0.7 lb / 0.3 kg
Dimensions (10 screws) 1.8 x 6.0 x 1.25 inch / 45 x 152.4 x 32 mm

SKU: VIC-VBB115022020
Barcode: 8719076056379
Model #: VBB115022020
MPN: VBB115022020
