Victron 12/24/48V 60A BlueSolar MPPT 150/60-Tr Non-Bluetooth Solar Charge Controller
98% Peak Efficiency, Advanced Shading MPPT, 60A Output, VE.Direct
Enerdrive 0-3m (0-30Kpa) Water Tank Level Press...DESCRIPTION

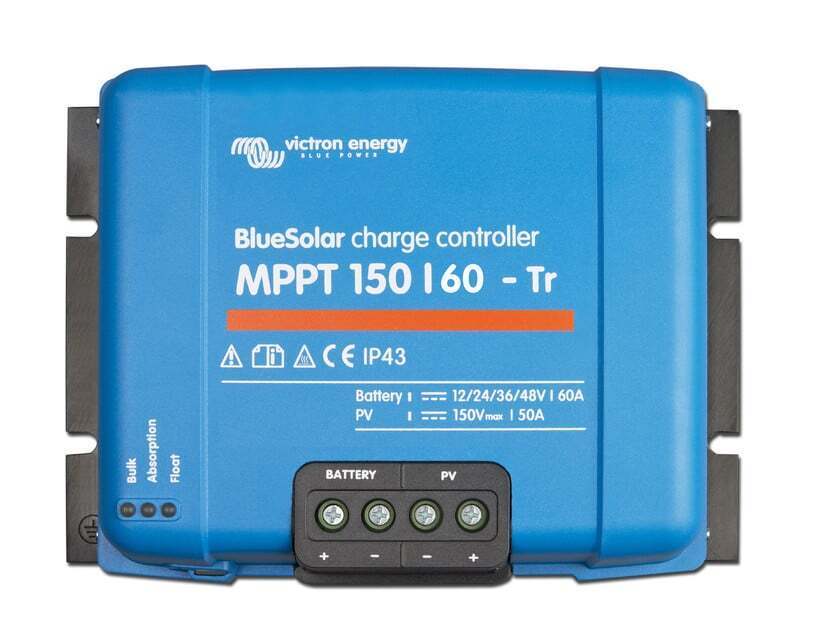

Victron BlueSolar MPPT 150/60-Tr: High-Performance Solar Charge Controller for 12V, 24V, and 48V Systems
Advanced MPPT Technology for Maximum Energy Harvest
The Victron BlueSolar MPPT 150/60-Tr is engineered to extract the maximum available power from your solar array, even under challenging conditions. Its ultra-fast Maximum Power Point Tracking (MPPT) algorithm continuously adjusts to changing light intensity, delivering up to 30% more energy compared to traditional PWM controllers and up to 10% more than slower MPPT designs. This is particularly beneficial during cloudy or rapidly changing weather, ensuring your batteries receive a consistent and optimised charge.
In partial shading scenarios, where multiple power peaks can occur on the PV curve, conventional controllers often lock onto a local rather than the true maximum power point. The BlueSolar MPPT 150/60-Tr employs an advanced detection algorithm that always identifies and tracks the optimal MPP, maximising energy yield even when panels are partially shaded. This capability is critical for installations where shading from trees, masts, or other structures is unavoidable.
Exceptional Efficiency and Robust Design
With a peak conversion efficiency exceeding 98%, the BlueSolar MPPT 150/60-Tr minimises energy losses and operates without a cooling fan, relying on a large aluminium heatsink for silent, maintenance-free thermal management. It delivers full rated charge current up to 40°C, making it suitable for the demanding Australian climate. The controller supports 12V, 24V, and 48V battery systems (with 36V selectable via software), providing flexibility for a wide range of off-grid and mobile applications.
Comprehensive electronic protection safeguards your investment: over-temperature protection with power derating, PV short circuit and reverse polarity protection, and PV reverse current blocking prevent damage from common installation faults. An internal temperature sensor automatically adjusts absorption and float voltages, ensuring correct charging across varying ambient conditions.
Flexible Charging and Monitoring
The charge algorithm is fully programmable via Victron's software, and eight pre-programmed battery presets are selectable via a rotary switch for quick setup. For real-time data visualisation, the controller features a VE.Direct port compatible with the VE.Direct to Bluetooth Low Energy dongle (sold separately) for smartphone monitoring, or the ColorControl panel for advanced system integration.
Note: This model does not include built-in Bluetooth; for integrated wireless connectivity, consider the SmartSolar MPPT range.
Key Features
- Ultra-fast MPPT algorithm for up to 30% more energy harvest versus PWM
- Advanced shading detection locks onto the true maximum power point
- 98% peak efficiency with fanless, silent operation
- Supports 12V, 24V, and 48V battery banks (36V via software)
- 150V maximum PV open circuit voltage for flexible string sizing
- 60A rated charge current for substantial solar arrays
- VE.Direct port for optional Bluetooth dongle or ColorControl panel
- Comprehensive electronic protection and temperature compensation
Built for Australian Conditions

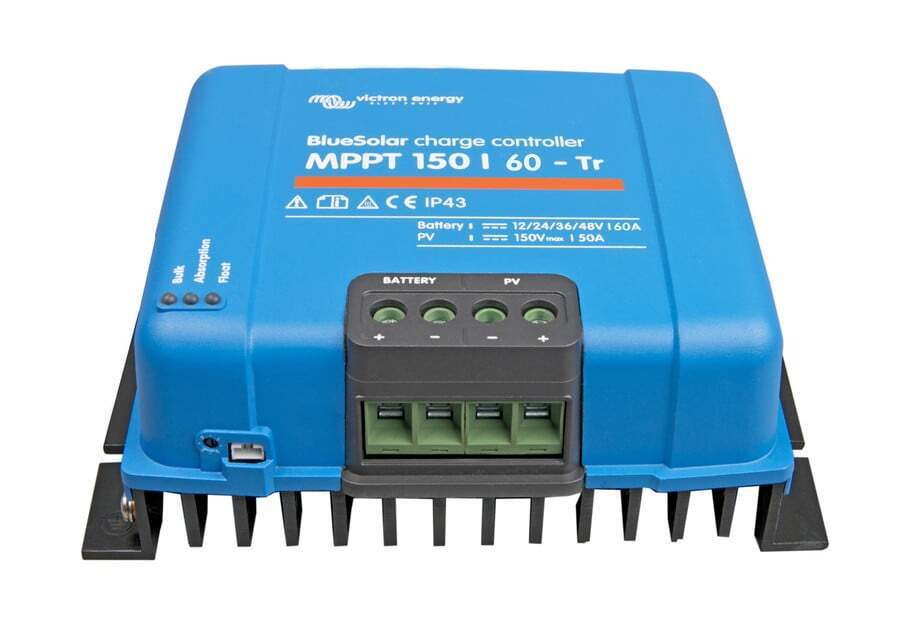

The BlueSolar MPPT 150/60-Tr is designed to withstand harsh environments. Its IP43-rated electronics enclosure protects against water spray and small tools, while the IP22 connection area ensures safe wiring. The robust screw terminals accept up to 35 mm² (AWG2) cable, providing secure, low-resistance connections for both PV and battery circuits. With a wide operating temperature range of -30°C to +60°C, this controller is ready for everything from coastal marine installations to remote outback systems.
Whether you're upgrading an existing off-grid setup, building a new caravan solar system, or managing a remote telecommunications site, the Victron BlueSolar MPPT 150/60-Tr offers reliable, efficient charge control backed by Victron's reputation for quality and durability.
Take Control of Your Solar Harvest
Equip your system with the Victron BlueSolar MPPT 150/60-Tr and experience the difference that advanced MPPT technology makes. Order today to maximise your solar investment with a controller built for performance and longevity.
SKU: Vic-SCC010060200
SPECIFICATIONS
Specifications
| Battery Voltage | 12 / 24 / 48 V Auto Select (Software Tool Needed to Select 36 V) |
|---|---|
| Rated Charge Current | 60 A |
| Nominal PV Power, 12 V | 860 W |
| Nominal PV Power, 24 V | 1720 W |
| Nominal PV Power, 48 V | 3440 W |
| Max. PV Short Circuit Current | 50 A |
| Maximum PV Open Circuit Voltage | 150 V Absolute Maximum Coldest Conditions; 145 V Start-up And Operating Maximum |
| Maximum Efficiency | 98 % |
| Self-consumption | 10 mA |
| Charge Voltage 'Absorption' | Default Setting: 14.4 / 28.8 / 43.2 / 57.6 V (Adjustable) |
| Charge Voltage 'Float' | Default Setting: 13.8 / 27.6 / 41.4 / 55.2 V (Adjustable) |
| Charge Algorithm | Multi-stage Adaptive |
| Temperature Compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV Reverse Polarity / Output Short Circuit / Over Temperature |
| Operating Temperature | -30 to +60 °C (Full Rated Output Up to 40 °C) |
| Humidity | 95 %, Non-condensing |
| Parallel Operation | Yes (Not Synchronized) |
| Colour | Blue (RAL 5012) |
| PV Terminals | 35 mm² / AWG2 (Tr Models) |
| Battery Terminals | 35 mm² / AWG2 |
| Protection Category | IP43 (Electronic Components), IP22 (Connection Area) |
| Weight | 3 kg |
| Dimensions (H x W x D) | 185 x 250 x 95 mm |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| SKU: | Vic-SCC010060200 |
| Barcode: | 8719076025474 |
| Model #: | SCC010060200 |
| MPN: | SCC010060200 |
