Victron 12/24/48V 60A BlueSolar MPPT 150/60-MC4 Non-Bluetooth Solar Charge Controller

Ultra-fast MPPT, 150V PV input, 60A charge, MC4 connectors, VE.Direct port


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Victron BlueSolar MPPT 150/60-MC4: High-Performance Solar Charge Controller for 12V, 24V, and 48V Systems

Engineered for Maximum Energy Harvest in Demanding Off-Grid and Mobile Installations

The Victron BlueSolar MPPT 150/60-MC4 is a professional-grade MPPT solar charge controller designed to extract the maximum available power from your PV array. With an ultra-fast Maximum Power Point Tracking algorithm, this controller significantly outperforms traditional PWM and slower MPPT units, delivering up to 30% more energy in variable light conditions. Its 150V PV input and 60A charge current make it a versatile solution for medium to large 12V, 24V, and 48V battery systems in caravans, RVs, marine vessels, and remote off-grid installations.

Unlike many controllers that struggle under partial shading, the BlueSolar MPPT 150/60 employs an advanced MPPT detection algorithm that continuously scans the power-voltage curve to lock onto the optimal maximum power point. This ensures consistent energy harvest even when panels are partially shaded, a common challenge in mobile and rooftop installations.

Key Features

  • Ultra-fast MPPT tracking — adapts to changing light every 0.1 seconds for up to 30% more energy than PWM controllers
  • Advanced shading management — identifies and locks onto the global maximum power point, avoiding local MPP traps
  • 98% peak conversion efficiency — fanless design with full 60A output up to 40°C ambient temperature
  • Wide PV voltage range — 150V maximum open-circuit voltage allows longer series strings and reduced cable losses
  • Flexible charge programming — eight pre-set battery algorithms plus fully customisable charging via VE.Direct
  • Comprehensive electronic protection — PV reverse polarity, short circuit, over-temperature, and reverse current safeguards
  • Integrated MC4 connectors — two pairs of MC4 PV inputs simplify wiring and reduce installation time
  • VE.Direct communication port — enables wired data logging and system monitoring (Bluetooth dongle sold separately)

Advanced MPPT Technology for Superior Energy Yield

At the core of the BlueSolar MPPT 150/60 is a high-speed tracking processor that reacts to irradiance changes in milliseconds. In overcast or rapidly changing weather, this responsiveness translates directly into higher daily energy harvest. The controller's ability to handle up to 150V PV open-circuit voltage allows installers to configure panels in longer series strings, reducing current, minimising voltage drop, and enabling the use of thinner, more cost-effective cabling over longer distances.

Robust Protection and Reliable Operation

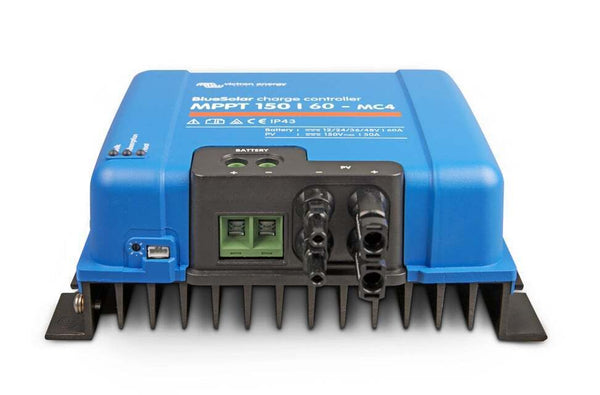

Designed for harsh environments, the BlueSolar MPPT 150/60 features an IP43-rated electronics compartment and a large aluminium heat sink for efficient passive cooling. The absence of a cooling fan eliminates a common point of failure and ensures silent operation. Built-in electronic protections guard against installation errors such as PV reverse polarity and short circuits, while automatic power derating at high temperatures protects internal components without interrupting charging.

Flexible Charging for Any Battery Chemistry

The controller supports a fully programmable charge algorithm via the VE.Direct port and VictronConnect software, allowing precise tailoring for lead-acid, AGM, gel, and lithium batteries. An internal temperature sensor provides automatic compensation of absorption and float voltages, extending battery life. For systems requiring remote on/off control or load management, the built-in programmable relay and remote on/off terminal offer seamless integration.

Monitoring and Control Options

While this BlueSolar model does not include integrated Bluetooth, real-time data and settings can be accessed by connecting the optional VE.Direct Bluetooth Smart Dongle or a Victron Color Control GX panel. This provides wireless monitoring via smartphone or tablet, as well as integration into larger Victron energy systems.

Ideal Applications

  • Caravan and RV solar upgrades requiring high charge current and multi-voltage support
  • Marine battery charging with robust corrosion-resistant construction
  • Off-grid cabins and tiny homes needing reliable, high-efficiency charge control
  • Industrial remote power systems where uptime and energy yield are critical

With its proven reliability and advanced feature set, the Victron BlueSolar MPPT 150/60-MC4 is a trusted choice for professionals seeking a high-performance solar charge controller that maximises energy harvest and protects valuable battery banks.

Upgrade your solar installation with the Victron BlueSolar MPPT 150/60-MC4 today and experience the difference that ultra-fast MPPT tracking makes in real-world conditions.


SKU: Vic-SCC010060300

SPECIFICATIONS

Specifications

Battery Voltage12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated Charge Current60 A
Nominal PV Power, 12 V860 W
Nominal PV Power, 24 V1720 W
Nominal PV Power, 36 V2580 W
Nominal PV Power, 48 V3440 W
Max. PV Short Circuit Current50 A
Maximum PV Open Circuit Voltage150 V absolute maximum coldest conditions; 145 V start-up and operating maximum
Maximum Efficiency98 %
Self-Consumption10 mA
Charge Voltage 'Absorption'Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable)
Charge Voltage 'Float'Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable)
Charge Voltage 'Equalization'Default setting: 16.2 / 32.4 / 48.6 / 64.8 V
Charge AlgorithmMulti-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature Compensation-16 mV/°C / -32 mV/°C / -64 mV/°C
ProtectionPV reverse polarity / Output short circuit / Over temperature
Operating Temperature-30 to +60 °C (full rated output up to 40 °C)
Humidity95 %, non-condensing
Maximum Altitude5000 m (full rated output up to 2000 m)
Data CommunicationVE.Direct Port
Remote On/OffYes, 2 pole terminal
Programmable RelayDPST AC rating: 4 A up to 240 Vac / DC rating: 4 A up to 35 Vdc, 1 A up to 60 Vdc
Parallel OperationYes, but not synchronized
ColourBlue (RAL 5012)
PV Terminals2 pairs of MC4 connectors
Maximum Current Per MC4 Connector30 A
Battery Terminals35 mm² / AWG2
Protection CategoryIP43 (electronic components), IP22 (connection area)
Weight3 kg
Dimensions (H x W x D)215 x 250 x 95 mm
SafetyEN/IEC 62109-1, UL 1741, CSA C22.2

SKU: Vic-SCC010060300
Barcode: 8719076025481
Model #: SCC010060300
MPN: SCC010060300

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
