Victron 275A Battery Switch On/Off

48V Max System Isolator with ISO8846 Ignition Protection


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
13

DESCRIPTION

Victron Energy 275A Battery Isolator Switch: Reliable DC Power Management

Secure Your Off-Grid and Marine Power Systems

The Victron 275A Battery Switch is an essential safety and maintenance component for any serious 12V, 24V, or 48V DC power setup. Serving as a robust physical disconnect between your battery bank and your loads or charge sources, this victron battery isolator switch provides complete control over your energy system. Whether you are performing routine maintenance, placing your camper or boat into long-term storage, or need an emergency shut-off point, this switch ensures that your electrical circuits are fully isolated to prevent parasitic draw and electrical hazards.

Engineered for High-Current Applications up to 48V

Unlike standard automotive switches that may struggle or arc under higher voltages, this unit is engineered to safely handle systems up to a maximum of 48V DC. This makes it an ideal 48V switch for modern high-capacity lithium battery banks and heavy-duty inverter setups. With a continuous current rating of 275A, a one-minute rating of 455A, and a massive cranking rating of 1250A, it easily accommodates the surge demands of large engine starters or high-draw Victron inverter equipment. If you are looking for a reliable victron inverter on off switch for the primary DC cable run, this model delivers the required capacity without risking dangerous voltage drops or overheating.

Heavy-Duty Terminals and Uncompromising Durability

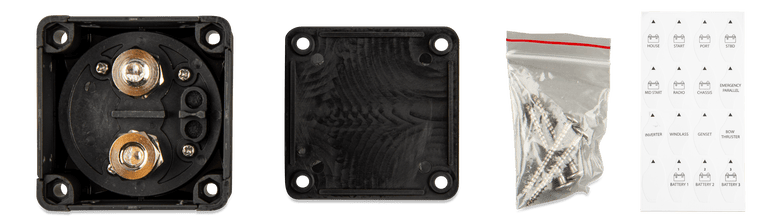

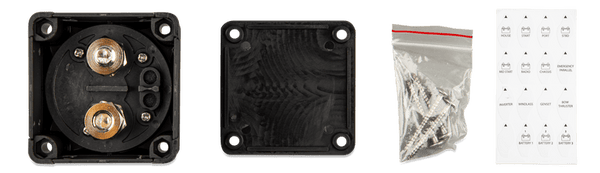

At the core of the switch's performance are the heavy-duty tin-plated copper terminals. These 3/8 inch (approx. 9.5 mm) studs provide exceptional conductivity while resisting corrosion in harsh environments. By utilising tin-plated copper, the switch minimises electrical resistance, ensuring efficient power transfer and reducing the risk of heat build-up under load. The base is constructed from glass fibre reinforced nylon, offering exceptional structural integrity and resistance to both thermal and mechanical stress.

Certified Ignition Protection for Marine Environments

Safety is paramount in enclosed spaces and engine rooms. This victron dc switch holds ISO8846 and SAE J1171 ignition protection certifications. This means the internal switching mechanism is completely sealed against igniting surrounding flammable gases or fuel vapours. For marine applications, automotive engine bays, or tightly enclosed caravan battery compartments, this certification provides vital peace of mind.

Ergonomic Operation and Flexible Installation

Understanding how to install and integrate a battery switch into an existing system is often a challenge, but this model is designed for maximum versatility. The enclosure features removable windows on all four sides, allowing for neat and unobstructed cable routing from any direction. You can configure it as a free-standing surface mount or install it flush as a rear panel mount.

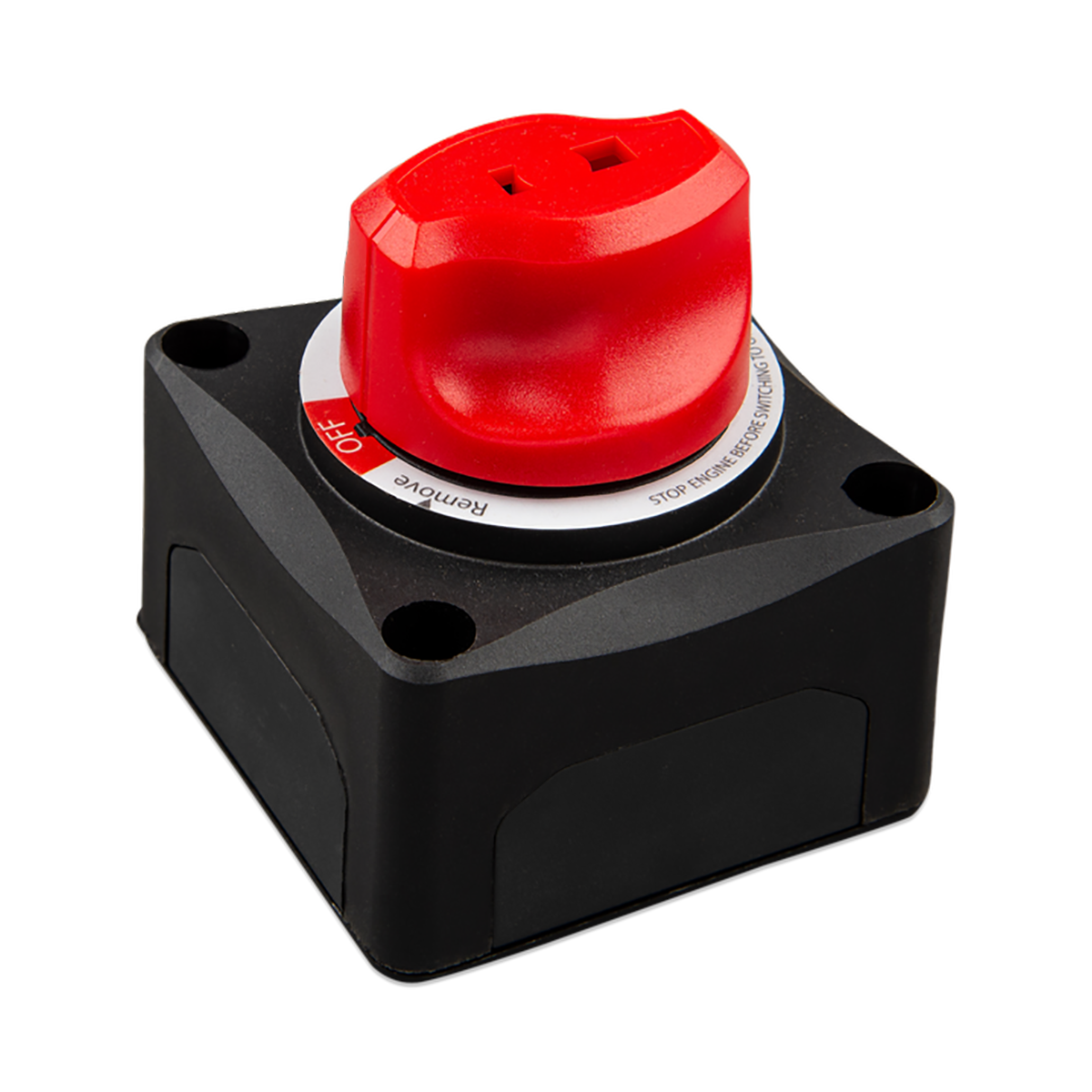

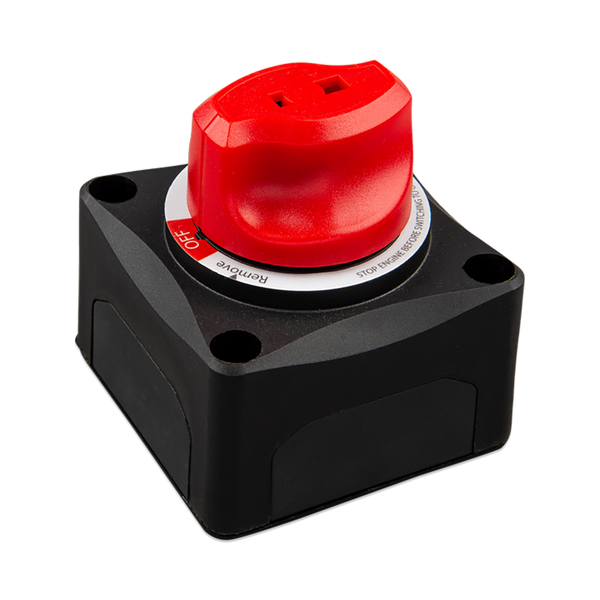

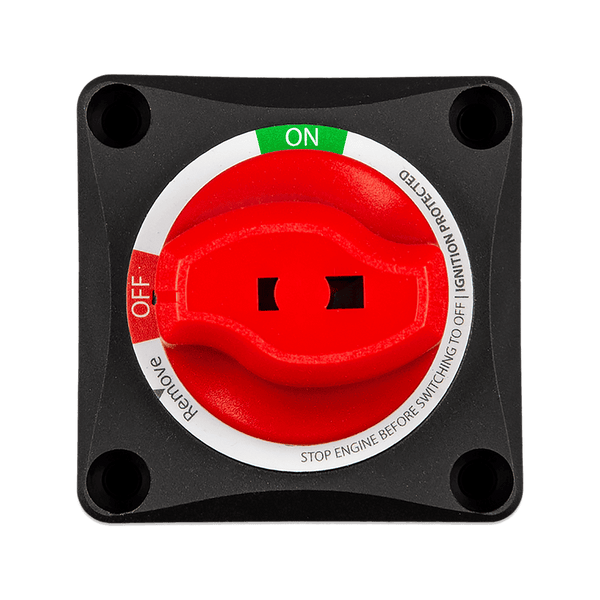

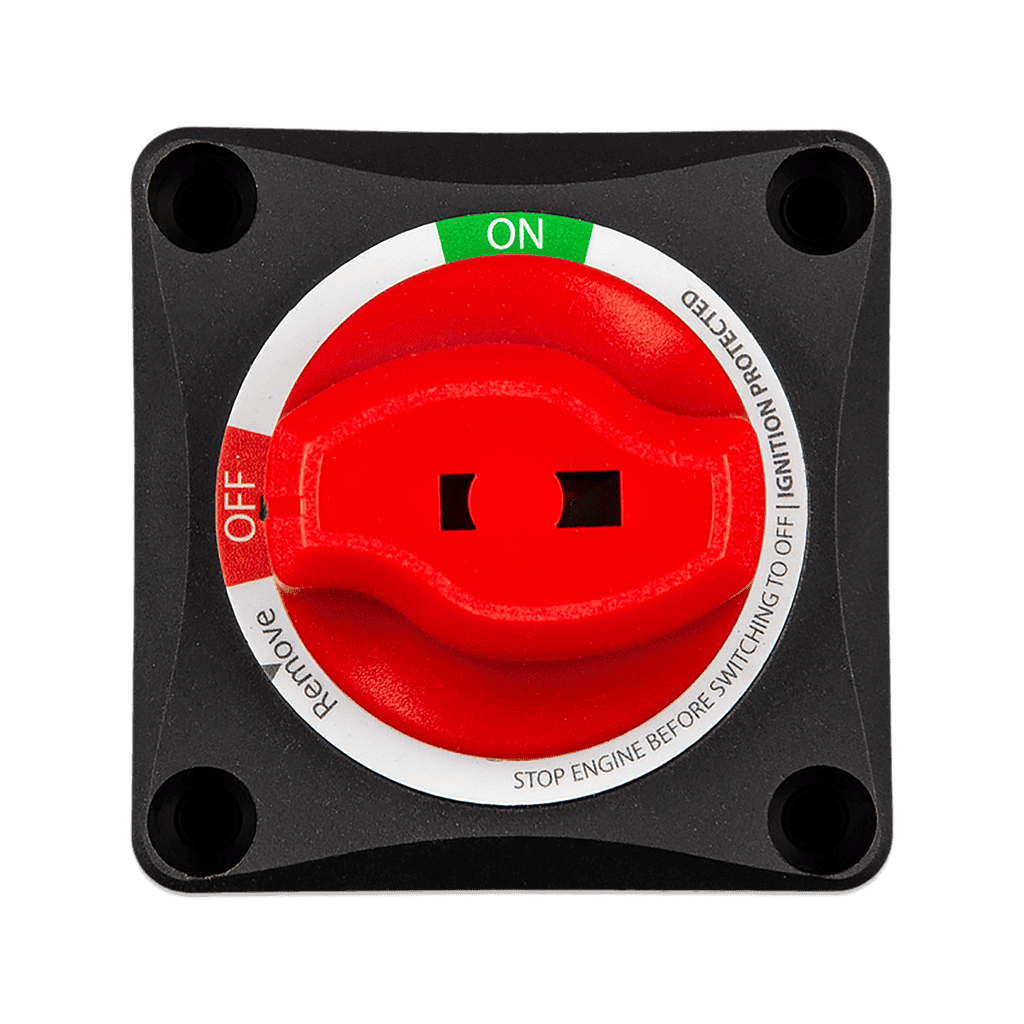

The vibrant red rotary knob is ergonomically shaped for easy operation even when wearing gloves. For added security and maintenance safety, the knob is entirely removable in the "Off" position, effectively serving as a lockout mechanism to prevent accidental re-energisation of the circuit. Furthermore, the unit includes a customisable label sheet, allowing you to clearly identify which battery bank or circuit the switch isolates.

Key Benefits and Features

  • Compatible with high-voltage DC systems up to 48V maximum, ideal for modern off-grid setups
  • Tin-plated 3/8 inch (approx. 9.5 mm) copper studs for superior corrosion resistance and low-resistance conductivity
  • ISO8846 and SAE J1171 ignition protected for safe installation in marine engine rooms and enclosed spaces
  • Removable knob acts as a physical safety lockout during system maintenance
  • Four removable side windows and dual mounting options provide exceptional installation flexibility
  • Included interchangeable label stickers allow for clear identification of isolated circuits

Take Control of Your Energy Storage

Protect your valuable batteries from parasitic drains and ensure your maintenance procedures are completely safe. Upgrade your electrical board with the Victron 275A Battery Switch today and experience the reliability of professional-grade DC power isolation.


SKU: VIC-VBS127010010

SPECIFICATIONS

Specifications

Battery Switch
Max. Continuous Current 275 A
One Minute Rating 455 A
Cranking Rating 1250 A
Voltage Rating 48 V
Terminal Material Tin-plated copper
Hex Nut Material Tin-plated copper
Terminal Diameter 3/8 inch / 9.53 mm
Recommended Torque 70 lbf·inch / 8 N·m
Base Material Glass fiber reinforced nylon
Weight 0.4 lb / 0.2 kg

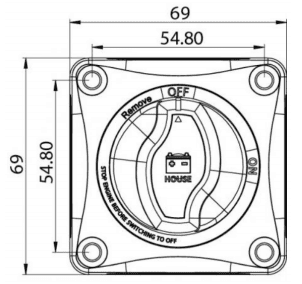

Dimensions (HxWxD) 1.8 x 6.0 x 1.25 inch / 69 x 69 x 73 mm
Mounting Surface or rear panel mount
Ignition Protected ISO8846 / SAE J1171

SKU: VIC-VBS127010010
Barcode: 8719076052258
Model #: VBS127010010
MPN: VBS127010010
