All-in-One Power Management: Victron EasySolar 12V 1600VA System
The Victron EasySolar 12/1600/70-16 is a complete power solution that drastically simplifies the design and installation of mobile and off-grid electrical systems. By combining a high-performance MPPT solar charge controller, a robust inverter/charger, and a comprehensive AC distribution board into a single enclosure, this unit minimises wiring complexity and saves valuable space. It is the ideal foundation for 12V power setups in caravans, motorhomes, and remote cabins where efficiency and reliability are paramount.
Advanced BlueSolar MPPT 100/50 Technology

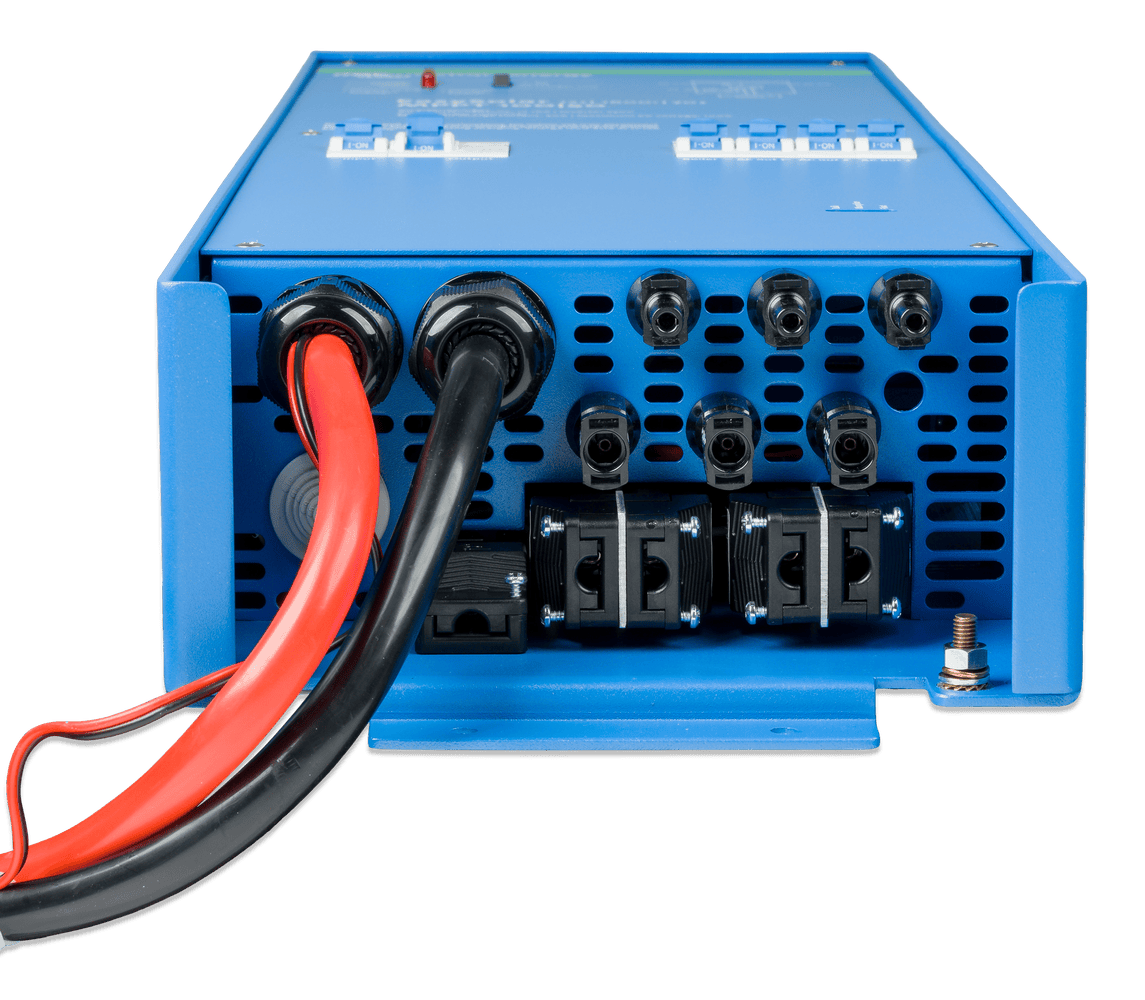

Maximising your solar harvest is critical in mobile applications. The integrated BlueSolar MPPT 100/50 charge controller allows for the connection of up to 700W of photovoltaic power. Featuring three separate sets of MC4 (PV-ST01) connectors located on the bottom panel, wiring your solar arrays is highly efficient. The ultra-fast Maximum Power Point Tracking ensures that even in cloudy conditions or rapidly changing light environments, energy harvesting is optimised to keep your 12V battery bank fully charged.
Reliable MultiPlus Inverter and Charger Performance
At the core of the EasySolar unit sits a highly capable MultiPlus Compact inverter/charger. Delivering a continuous 1600VA (1300W at 25 degrees Celsius) of pure sine wave AC power, it easily runs sensitive electronics, appliances, and essential loads. When connected to shore power or a generator, the heavy-duty 70A battery charger rapidly replenishes your batteries.
Victron's intelligent PowerAssist technology is built into this system. If a limited AC source is at risk of overloading, the EasySolar will seamlessly supplement the supply with power drawn directly from the battery bank, preventing tripped breakers and ensuring your critical devices remain operational without interruption.

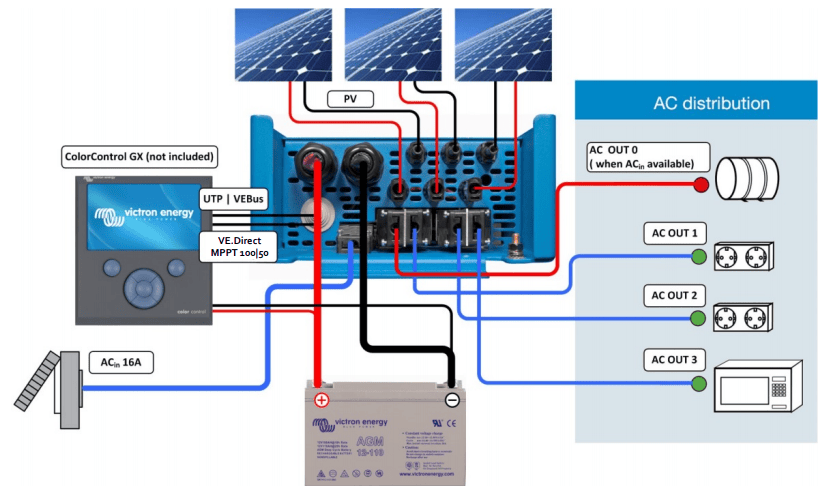

Pre-Wired AC Distribution for Streamlined Installation

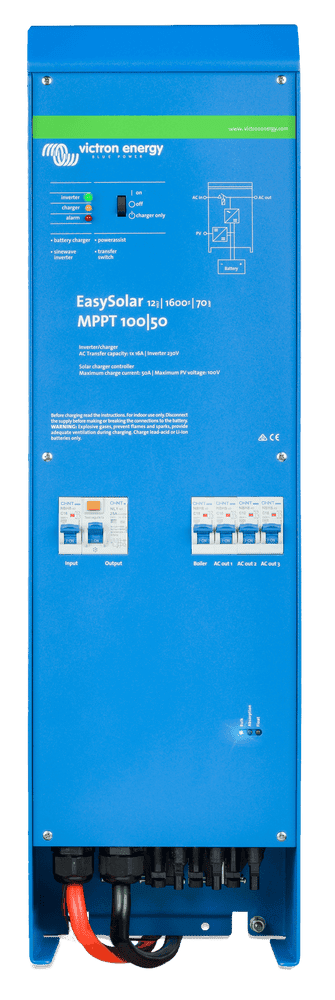

One of the standout advantages of the EasySolar is its integrated AC distribution panel. Designing an off-grid electrical system typically requires external switchboards and complex wiring loops. This unit eliminates that hassle by providing a built-in RCD (30mA/16A) and four dedicated AC outputs protected by two 10A and two 16A circuit breakers. One of these 16A outputs is configured to operate only when external AC power is present, making it perfect for high-draw appliances like water heaters that you do not want draining your battery reserve.
Key System Features
- Integrated all-in-one design reduces wiring complexity and point-of-failure risks
- 1600VA continuous pure sine wave inverter with a 3000W peak capacity
- Built-in MPPT 100/50 solar charge controller supporting up to 700W of solar input
- High-output 70A multi-stage adaptive battery charger
- Comprehensive AC distribution with integrated RCD and four circuit breakers
- Pre-wired 1.5-metre heavy-duty DC battery cables for immediate installation
- Advanced PowerAssist technology to supplement limited grid or generator power
Engineered for Caravans, Motorhomes, and Off-Grid Systems

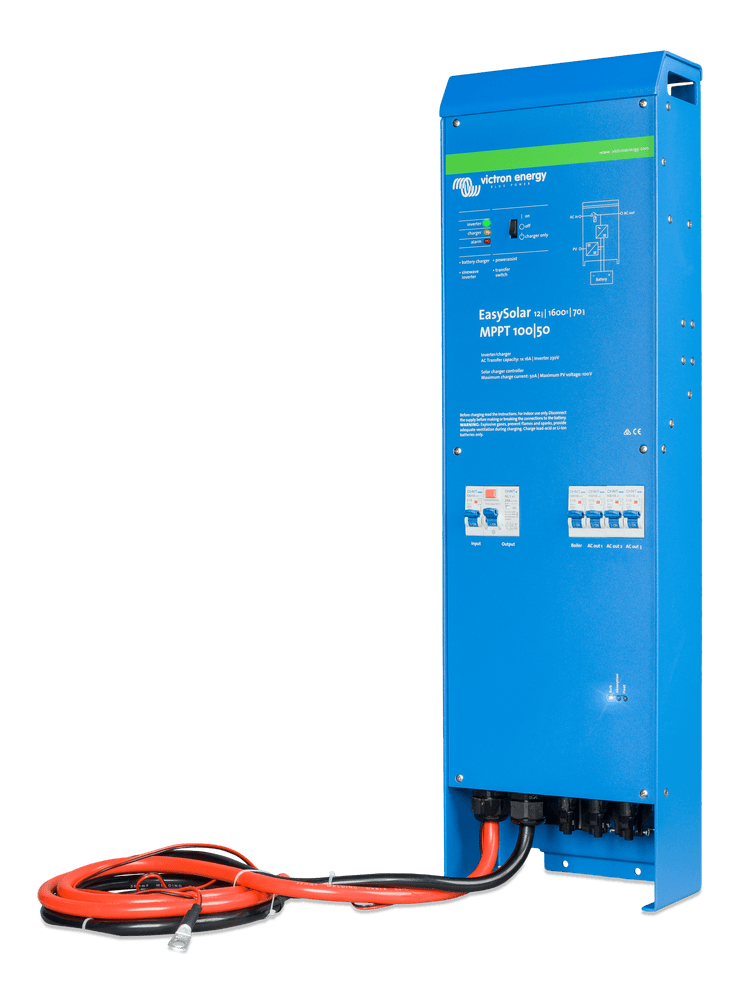

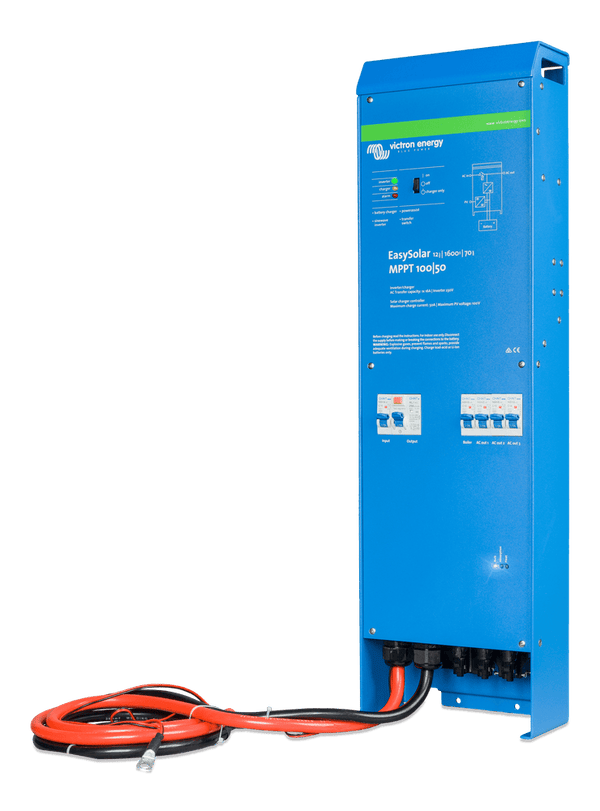

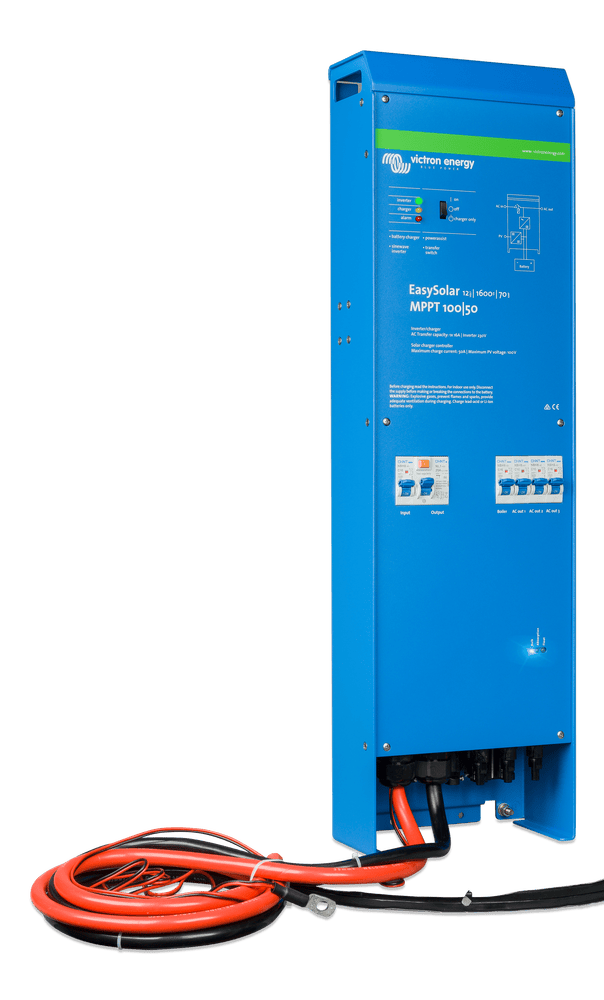

Space is a premium in any mobile application. The vertical profile of the robust aluminium enclosure allows the EasySolar to be mounted securely in tight compartments. The consolidated design drastically reduces the footprint compared to installing a separate inverter, charger, solar controller, and AC fuse box. Whether you are upgrading an existing 12V caravan power system or engineering a new off-grid setup from scratch, this comprehensive unit provides a professional-grade foundation.
Optimise Your Mobile Energy System
Upgrade your off-grid capabilities with a unified, high-performance power solution engineered for demanding environments. Order the Victron EasySolar today to streamline your installation and enjoy reliable, uninterrupted power on your next journey.
SKU: Vic-CEP122161000
SPECIFICATIONS

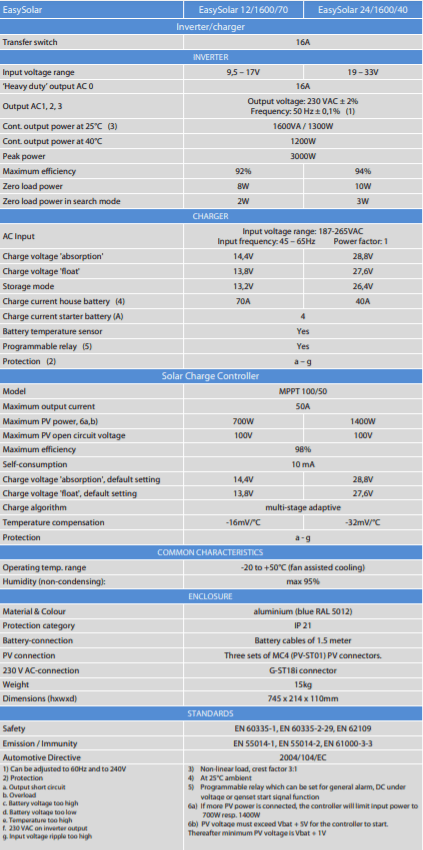

Specifications
| EasySolar | EasySolar 12/1600/70 | EasySolar 24/1600/40 |
| Inverter/charger | ||
| Transfer switch | 16A | 16A |
| Inverter | ||
| Input voltage range | 9.5 – 17V | 19 – 33V |
| ‘Heavy duty’ output AC 0 | 16A | 16A |
| Output AC1, 2, 3 | Output voltage: 230 VAC ±2% | Output voltage: 230 VAC ±2% |
| Frequency: 50 Hz ± 0.1% (1) | Frequency: 50 Hz ± 0.1% (1) | |
| Cont. output power at 25°C | 1600VA / 1300W | 1600VA / 1300W |
| Cont. output power at 40°C | 1200W | 1200W |
| Peak power | 3000W | 3000W |
| Maximum efficiency | 92% | 94% |
| Zero load power | 8W | 10W |
| Zero load power in search mode | 2W | 3W |
| Charger | ||
| Input voltage range: 187-265VAC | Input voltage range: 187-265VAC | |
| AC Input | Input frequency: 45 – 65Hz Power factor: 1 | Input frequency: 45 – 65Hz Power factor: 1 |
| Charge voltage 'absorption' | 14.4V | 28.8V |
| Charge voltage 'float' | 13.8V | 27.6V |
| Storage mode | 13.2V | 26.4V |
| Charge current house battery (4) | 70A | 40A |
| Charge current starter battery (A) | 4 | 4 |
| Battery temperature sensor | Yes | Yes |
| Programmable relay (5) | Yes | Yes |
| Protection | a – g | a – g |
| Solar Charge Controller | Solar Charge Controller | |
| Model | MPPT 100/50 | MPPT 100/50 |
| Maximum output current | 50A | 50A |
| Maximum PV power, 6a,b) | 700W | 1400W |
| Maximum PV open circuit voltage | 100V | 100V |
| Maximum efficiency | 98% | 98% |
| Self-consumption | 10 mA | 10 mA |
| Charge voltage 'absorption', default setting | 14.4V | 28.8V |
| Charge voltage 'float', default setting | 13.8V | 27.6V |
| Charge algorithm | multi-stage adaptive | multi-stage adaptive |
| Temperature compensation | -16mV/°C | -32mV/°C |
| Protection | a - g | a - g |
| COMMON CHARACTERISTICS | COMMON CHARACTERISTICS | |
| Operating temp. range | -20 to +50°C (fan assisted cooling) | -20 to +50°C (fan assisted cooling) |
| Humidity (non-condensing): | max 95% | max 95% |
| ENCLOSURE | ||
| Material & Colour | aluminium (blue RAL 5012) | aluminium (blue RAL 5012) |
| Protection category | IP 21 | IP 21 |
| Battery-connection | Battery cables of 1.5 meter | Battery cables of 1.5 meter |
| PV connection | Three sets of MC4 (PV-ST01) PV connectors. | Three sets of MC4 (PV-ST01) PV connectors. |
| 230 V AC-connection | G-ST18i connector | G-ST18i connector |
| Weight | 15kg | 15kg |
| Dimensions (hxwxd) | 745 x 214 x 110mm | 745 x 214 x 110mm |
| STANDARDS | ||
| Safety | EN 60335-1, EN 60335-2-29, EN 62109 | EN 60335-1, EN 60335-2-29, EN 62109 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 | EN 55014-1, EN 55014-2, EN 61000-3-3 |
| Automotive Directive | 2004/104/EC | 2004/104/EC |
- Can be adjusted to 60Hz and to 240V
- Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 230 VAC on inverter output g. Input voltage ripple too high
- Non-linear load, crest factor 3:1
- At 25°C ambient
- Programmable relay which can be set for general alarm, DC under voltage or genset start signal function 6a) If more PV power is connected, the controller will limit input power to 700W resp. 1400W 6b) PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V
| SKU: | Vic-CEP122161000 |
| Barcode: | 8719076065012 |
| Model #: | CEP121621000 |
| MPN: | CEP121621000 |
