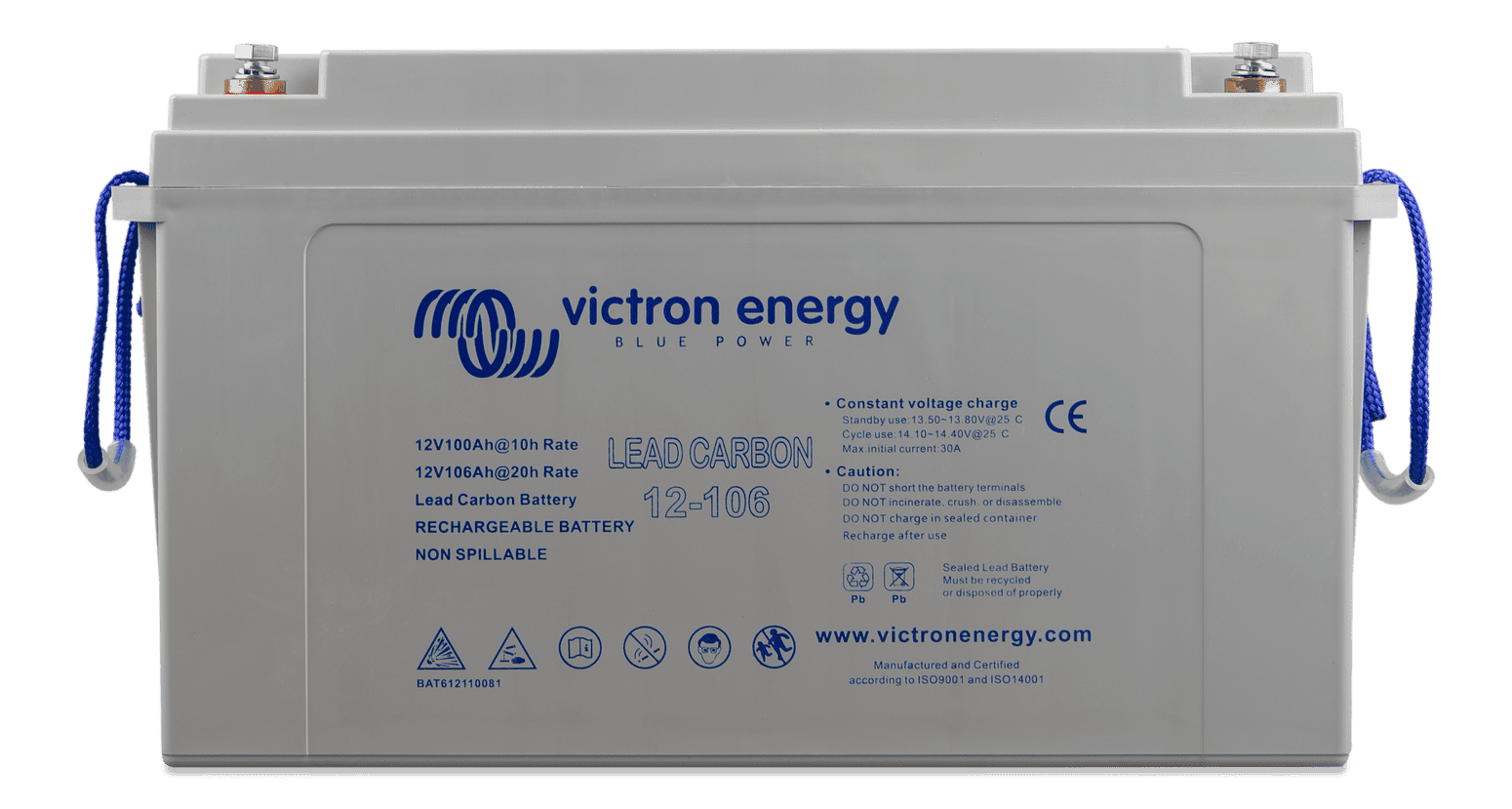

Victron 12V/106Ah Lead Carbon Deep Cycle Battery (M8)

Up to 1400 Cycles at 40% DoD - Improved Partial State-of-Charge


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

Advanced Off-Grid Energy Storage: 12V 106Ah Lead Carbon Technology

The Victron 12V 106Ah Lead Carbon Deep Cycle Battery delivers a robust energy storage solution for demanding off-grid, marine, and caravan power systems. By integrating advanced carbon composite materials into the negative plate, this battery bridges the performance gap between traditional flat plate VRLA lead acid batteries and complex lithium alternatives. It is specifically engineered to handle the rigorous demands of deep cycling and partial state-of-charge operation, making it an exceptional choice for solar setups where reaching a full charge daily is not always possible.

Overcoming Standard Lead Acid Limitations

Standard flat plate VRLA lead acid batteries often suffer from premature failure when subjected to intensive cycling. During regular discharge, the lead oxide on the positive plate transforms into lead sulfate. Frequent cycling reduces the cohesion of the active material due to volume expansion. Furthermore, if a traditional battery is left in a partial state-of-charge, the lead sulfate crystals harden and form an impenetrable layer on the negative plate. This process, known as sulfation, permanently reduces battery capacity until the unit becomes unusable.

The Lead Carbon Advantage

Victron Energy has solved this issue by replacing the active material of the negative plate with a proprietary lead carbon composite. This advanced chemistry significantly reduces sulfation and dramatically improves the charge acceptance of the negative plate. As a result, the battery charges faster and operates far more efficiently. The lower required charge voltage also minimises corrosion on the positive plate, which substantially extends the overall cycle life of the battery compared to generic AGM equivalents.

Superior Partial State-of-Charge Performance

Rigorous testing demonstrates the superior endurance of these units under heavy loads. The Victron lead carbon chemistry can withstand at least 500 complete 100 percent depth of discharge (DoD) cycles. Under more typical off-grid conditions, it delivers up to 1400 cycles at a 40 percent DoD. This enhanced cycle life ensures your off-grid solar system, 4x4 dual battery setup, or marine application remains reliably powered for longer, even during extended periods of overcast weather where full recharges are difficult to achieve.

Key Technical Features and Benefits

  • Improved Partial State-of-Charge Operation: Resists sulfation when not regularly charged to 100 percent, ideal for erratic solar charging conditions.
  • High Cycle Life: Delivers up to 1400 cycles at 40 percent DoD and at least 500 cycles at 100 percent DoD.
  • Faster Recharge Times: Enhanced charge acceptance allows for quicker replenishment of your energy reserves, reducing generator runtime.
  • Efficient Power Conversion: Lower charge voltage requirements reduce positive plate corrosion and increase overall electrical efficiency.

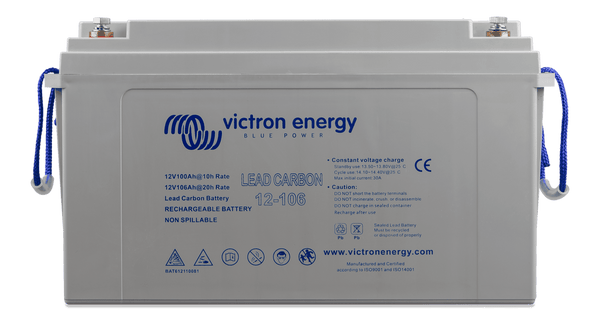

  • Robust Physical Design: Features top-mounted M8 insert terminals for secure electrical connections and integrated blue rope handles for easier lifting and installation.
  • Convenient Footprint: Physical dimensions of 410 x 172 x 225 mm and a net weight of 36kg suit a wide variety of deep cycle battery boxes and tight mounting locations.

Upgrade Your Off-Grid Power System Today

If you require a highly durable energy storage solution that handles deep cycling with ease, Victron lead carbon technology is an outstanding choice. Enhance the reliability of your remote solar setup or mobile power system by investing in proven performance. Order the Victron 12V 106Ah Lead Carbon Deep Cycle Battery today and secure dependable, long-lasting power for your next off-grid project.


SKU: VIC-BAT612110081

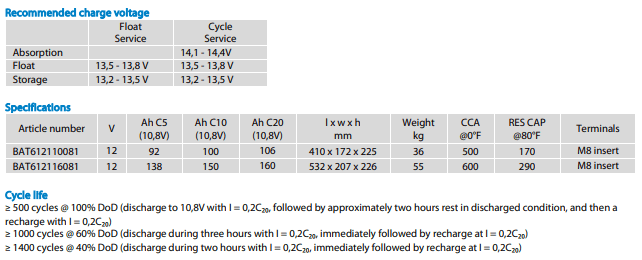

SPECIFICATIONS

Specifications

Battery TypeLead Carbon Battery
Article NumberBAT612110081
Nominal Voltage12 V
Capacity C5 (10.8 V)92 Ah
Capacity C10 (10.8 V)100 Ah
Capacity C20 (10.8 V)106 Ah
Dimensions (L x W x H)410 x 172 x 225 mm
Weight36 kg
CCA @0°F500
RES CAP @80°F170
TerminalsM8 Insert
Recommended Charge Voltage, Absorption (Cycle Service)14.1 - 14.4 V
Recommended Charge Voltage, Float13.5 - 13.8 V
Recommended Charge Voltage, Storage13.2 - 13.5 V
Cycle Life @ 100% DoD≥ 500 cycles (discharge to 10.8 V with I = 0.2C20, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0.2C20)
Cycle Life @ 60% DoD≥ 1000 cycles (discharge during three hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20)
Cycle Life @ 40% DoD≥ 1400 cycles (discharge during two hours with I = 0.2C20, immediately followed by recharge at I = 0.2C20)

SKU: VIC-BAT612110081
Barcode: 8719076045465
Model #: BAT612110081
MPN: BAT612110081

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
