Simarine Quad Shunt Module 4x 25A & 4x Tank Level

Advanced Load and Tank Monitoring for Simarine PICO Systems

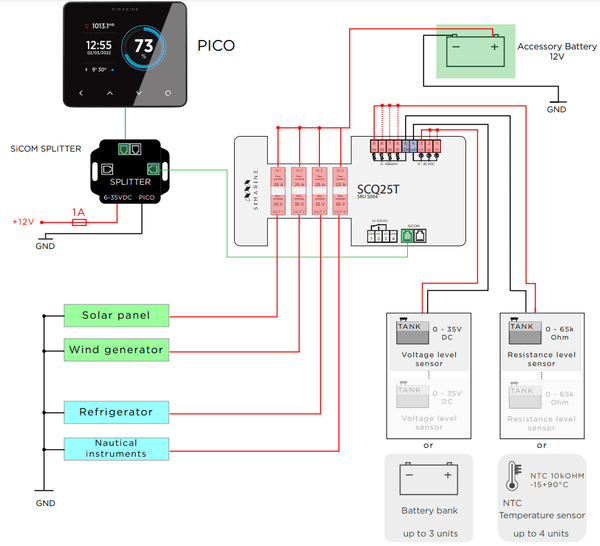

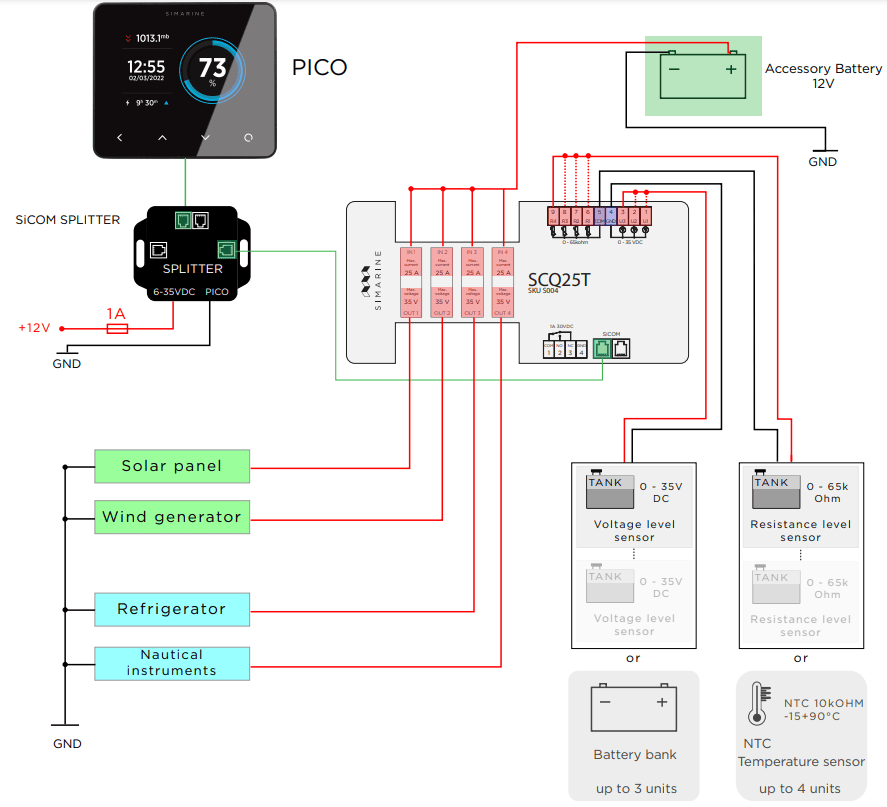

The Simarine SCQ25T is a highly versatile active digital shunt and sensor module designed specifically for the Simarine PICO battery monitoring system. While a main battery shunt measures total system current, the SCQ25T allows you to monitor up to four individual smaller power sources or consumer loads, each up to 25A. Whether you need to track the exact power draw of a 12V refrigerator, or monitor incoming generation from solar panels, wind turbines, or hydro generators, this module provides granular visibility into your 12V or 24V electrical system.

Combine Current, Voltage, and Tank Monitoring in One Unit

Instead of installing multiple independent sensor interfaces, the SCQ25T serves as an innovative, all-in-one data collection hub. Beyond its four precise current measuring channels, the module features three dedicated voltage inputs and four resistance inputs. This flexibility makes it perfectly suited for marine vessels, caravans, and off-grid setups where space and wiring efficiency are critical.

The resistance inputs allow seamless integration with various tank level sensors, ensuring you always know your fresh water, grey water, or fuel capacities. Alternatively, these inputs can be utilised for temperature sensors. The additional voltage inputs are ideal for monitoring starter batteries or specific equipment voltages, giving you a comprehensive overview of your system's health on your PICO display.

Enhanced Control with Integrated Relay

Automation and control are essential in modern power systems. The SCQ25T features a built-in configurable relay output with Normally Open (NO) and Normally Closed (NC) contacts. This enables automated system controls or alerts directly through the Simarine PICO ecosystem. For example, you could configure the relay to automatically activate an extraction fan if a temperature sensor reading climbs too high, or switch off a specific lighting circuit when your auxiliary battery bank drops to a predefined voltage. This level of active response transforms your PICO setup from a passive monitoring display into an active energy management system.

Key Features of the SCQ25T Module

• Four 25A current channels: Precisely track individual consumer loads or charging sources down to a 0.01A resolution.
• Multi-sensor compatibility: Interfaces with up to four resistance-based tank level or temperature sensors and three voltage inputs.
• SiCOM network connectivity: Features dual SiCOM RJ9 sockets for straightforward daisy-chaining with other Simarine modules and PICO displays.
• Broad system compatibility: Operates efficiently across a 6V to 35V range, making it suitable for standard 12V and 24V battery systems.
• Integrated automated control: Includes a configurable relay output for external device management or system alerts.

Robust Design for Demanding Environments

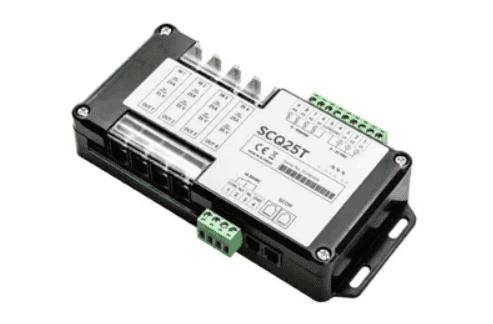

Engineered for reliability in mobile and marine applications, the module maintains strict accuracy across a wide temperature range of -20 to +70 degrees Celsius. Its compact dimensions (182 x 80 x 32 mm) and integrated mounting flange ensure a secure, screw-down installation even in confined spaces behind bulkheads or inside caravan electrical cabinets. By consolidating multiple monitoring functions into a single 230g unit, you significantly reduce wiring complexity and installation time.

Upgrade Your Power Visibility Today

Take complete control of your vessel or vehicle's energy and fluid management. Integrate the Simarine SCQ25T into your setup to eliminate guesswork and clearly understand exactly how your power is being generated and consumed. Add this comprehensive monitoring module to your cart today and unlock the full potential of your PICO system.
