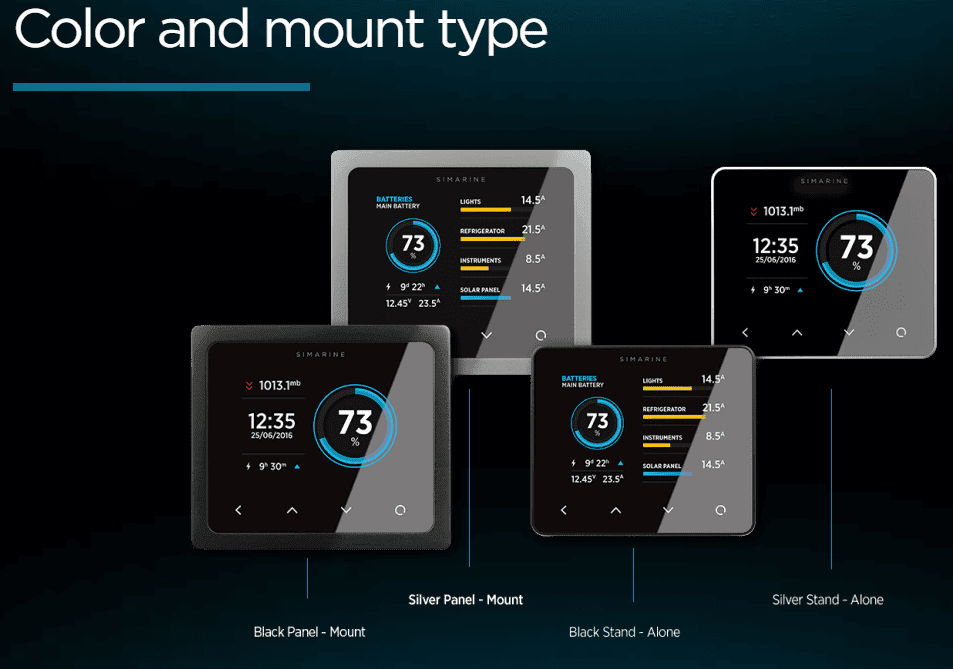

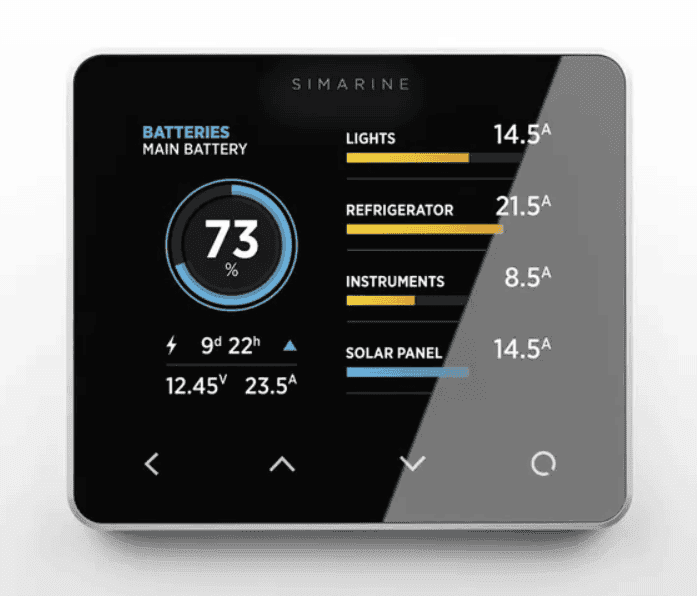

Simarine Pico Display Stand Alone (Surface Mount) Silver

Simarine Pico Standalone Battery Monitor: Precision System Tracking

Advanced System Monitoring for Caravans, RVs, and Marine Environments

The Simarine Pico Stand Alone in silver is an exceptionally capable system monitor designed to give you complete visibility over your off-grid power and fluid levels. Far exceeding the capabilities of basic voltmeters, this advanced battery monitor consolidates critical system data into a single, highly readable 3.5 inch (Approx. 89 mm) IPS LCD display. Engineered for precision and versatility, it is an ideal upgrade for complex 12V, 24V, and 48V setups in marine vessels, caravans, and recreational vehicles.

By bringing together real-time battery status, tank levels, temperature readings, and environmental data, this monitor significantly reduces the dashboard clutter often associated with multiple individual gauges. The surface mount design allows for straightforward installation without the need to cut large mounting holes into your cabinetry or bulkhead.

Comprehensive Energy and Fluid Management

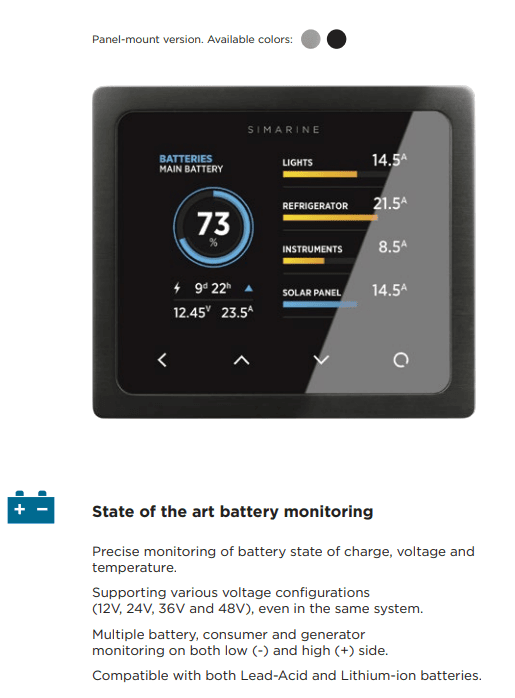

Off-grid systems require careful management to ensure consistent power and fluid availability. When paired with compatible shunts and modules, the Simarine Pico is capable of monitoring up to six separate battery banks and twenty individual consumer or power generation loads. This level of granular tracking ensures you know exactly how much power your fridge, lighting, or solar array is using and generating at any given moment.

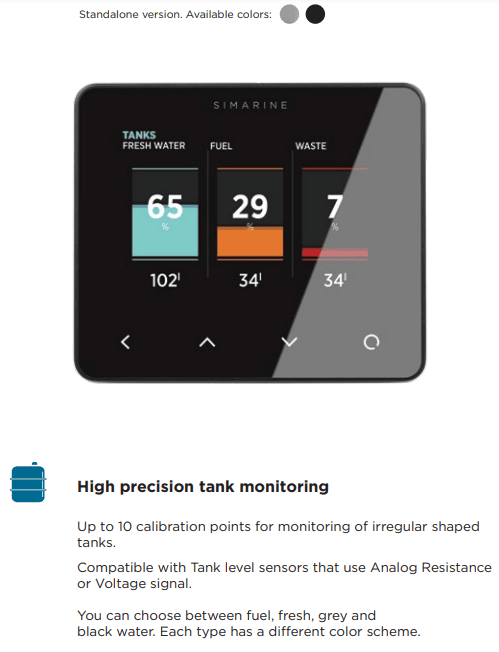

Beyond electrical monitoring, the system supports up to 14 tank level sensors and 10 temperature sensors. Whether you need to track fresh water, grey water, fuel levels, or battery compartment temperatures, the Pico processes these inputs with outstanding accuracy. The system features a maximum voltage input range of up to 75V, making it highly adaptable for systems ranging from standard 12V automotive setups to sophisticated 48V lithium battery banks.

Premium Build Quality and Readability

Constructed with a CNC milled anodised aluminium casing in a sleek silver finish, the Simarine Pico is built to withstand the rigours of mobile and marine environments. The ultra-thin 10 mm profile ensures an unobtrusive aesthetic once mounted. To protect the high-contrast screen, it utilises anti-reflective Gorilla Glass, which maintains excellent readability even in bright ambient lighting conditions.

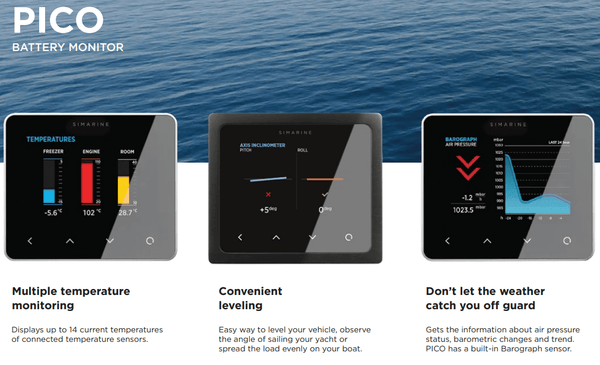

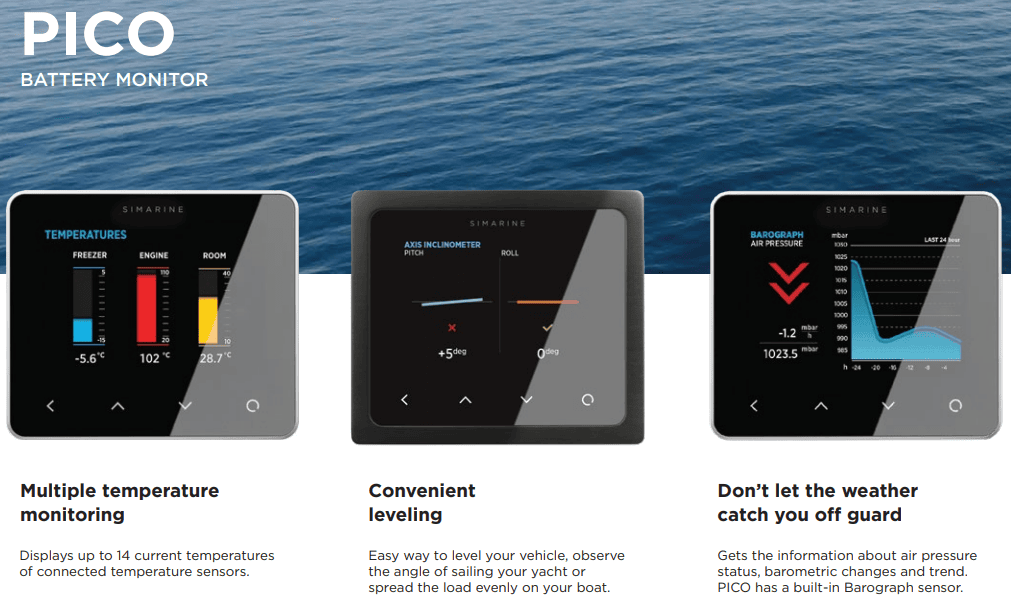

Navigation is handled via four water-tolerant touch-sensitive buttons, ensuring reliable operation even if your hands are wet or the environment is humid. Additionally, the unit incorporates an integrated inclinometer for vessel and vehicle levelling, alongside a built-in barograph to track air pressure and weather trends, adding critical functionality for marine and remote overland applications.

Seamless Smartphone Connectivity

For modern off-grid management, remote access is essential. The Simarine Pico includes a built-in WiFi module that connects directly to the Simarine smartphone application. This allows users to view live system data, track historical performance trends, and easily configure settings directly from a mobile device. The internal data logger holds up to three months of history, ensuring you can review past performance and identify any system anomalies.

Key Features

• Extensive Connectivity: Supports up to 6 batteries, 24 shunts, 14 tank sensors, and 10 temperature sensors.
• High-Resolution Display: 3.5 inch (Approx. 89 mm) IPS LCD screen protected by anti-reflective Gorilla Glass.
• Premium Construction: Silver CNC milled anodised aluminium casing with an ultra-thin 10 mm profile.
• Surface Mount Design: Simplified standalone installation without requiring a deep cutout.
• Advanced Sensors: Integrated inclinometer for levelling and a barograph for weather tracking.
• Wireless Integration: Built-in WiFi for full control and monitoring via the Simarine smartphone application.

Take control of your mobile power and fluid systems with unparalleled accuracy. Upgrade your setup with the Simarine Pico Standalone Silver display today and enjoy clear, comprehensive data for your next off-grid journey.
