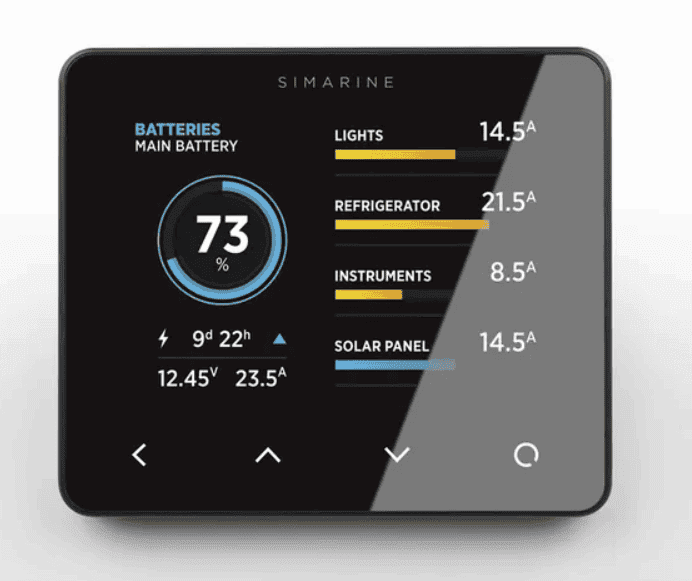

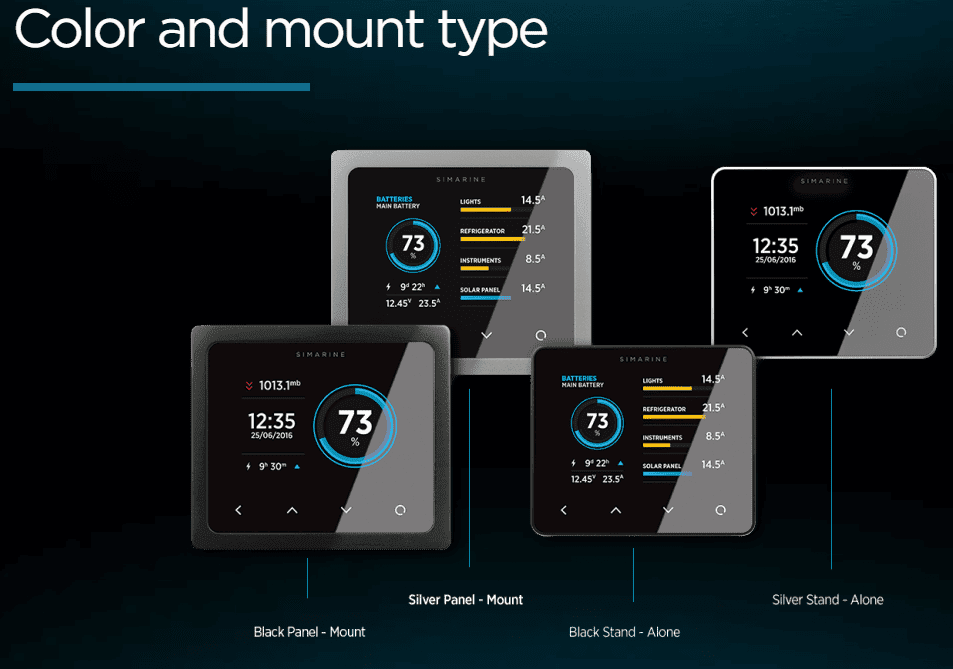

Simarine Pico Display Stand Alone (Surface Mount) Black

Precision Energy Management with the Simarine Pico Battery Monitor

Take complete control of your vehicle or vessel electrical system with this highly accurate battery monitor. Housed in a premium 10mm thick CNC milled anodised aluminium body, the Pico screen provides a sleek, low-profile surface mount solution for real-time energy tracking. Whether you are navigating off-grid terrain in a caravan or managing complex marine power systems, this unit offers exceptional visibility over your electrical and fluid assets.

The interface features a vibrant 3.5 inch IPS LCD protected by anti-reflective Gorilla Glass, ensuring excellent readability in high-glare outdoor environments. Menu navigation is simple and responsive, thanks to water-tolerant touch control buttons specifically designed to handle the rigours of marine and mobile conditions.

Comprehensive System Tracking Capabilities

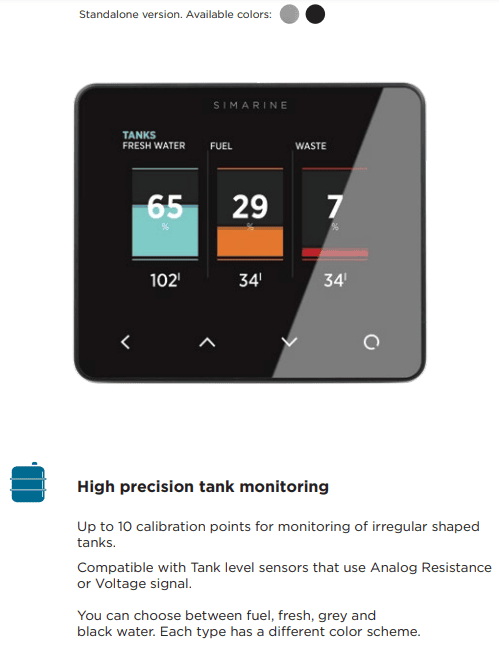

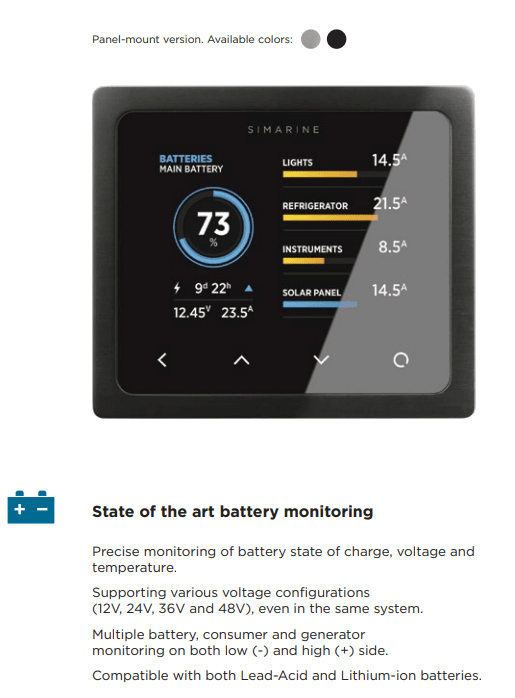

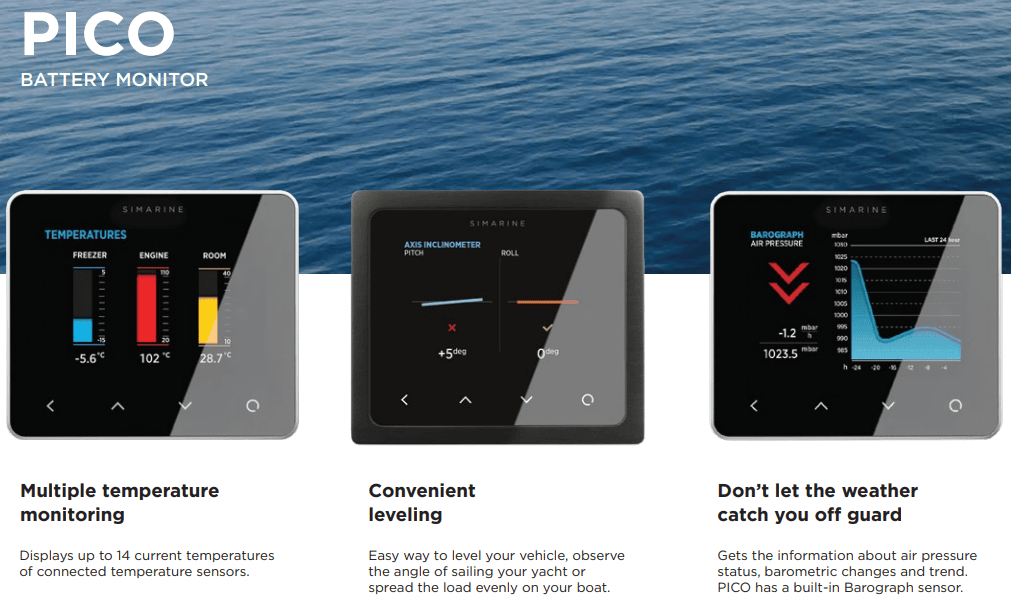

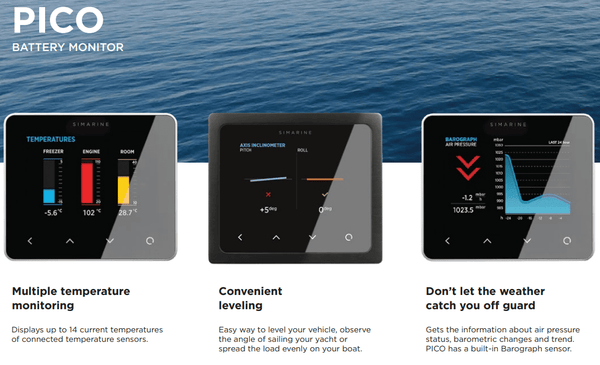

Unlike standard generic meters, this advanced energy management tool integrates seamlessly with a massive array of sensors to provide a complete picture of your system's health. You can monitor up to six battery banks, 24 shunts, 14 tank levels (including fuel, fresh water, grey water, and black water), and 10 temperature sensors. This expansive connectivity drastically reduces the risk of undetected power drains or unexpectedly empty water tanks while you are off-grid.

Operating efficiently on a power source voltage range of 6V to 35V, it is perfectly suited for both 12V and 24V configurations. Furthermore, its ultra-low power circuitry consumes just 90mA at full illumination with WiFi active, and a mere 5mA when powered off with the data logger still running. The onboard logger records up to three months of historical data, giving you deep insights into your energy consumption patterns over time.

Advanced Connectivity and Straightforward Installation

Stay connected to your power system from anywhere within range using the integrated 2.4 GHz WiFi. The dedicated smartphone application mirrors the Simarine Pico monitor interface, allowing you to view detailed state of charge, voltage, and temperature metrics directly from your mobile device.

For DIY installers and professional auto-electricians alike, the setup process is highly logical. By referencing the comprehensive manual and the specific Simarine Pico wiring diagram during installation, you can correctly configure complex setups like 10-point calibrations for irregular tank shapes, ensuring your water and fuel readings remain highly accurate at all times.

Key Features

• High-Clarity Interface: 3.5 inch IPS LCD screen with anti-reflective Gorilla Glass for maximum visibility.
• Robust Construction: Surface mounted, 10mm thick CNC milled anodised aluminium body in a sleek black finish.
• Expansive Connectivity: Supports up to 6 batteries, 24 shunts, 14 tank level sensors, and 10 temperature sensors.
• Wireless Access: Built-in WiFi for direct smartphone application monitoring and remote configuration.
• High Precision Data: Delivers current and voltage accuracy to 0.01 units, delivering reliable state of charge reporting.
• Water-Tolerant Controls: Designed with touch-sensitive buttons engineered for damp and demanding environments.

Upgrade Your Off-Grid Electrical Setup

Maximise the reliability of your mobile power system with accurate, real-time data. Order your Simarine Pico display today to ensure complete confidence in your energy reserves on your next adventure.
