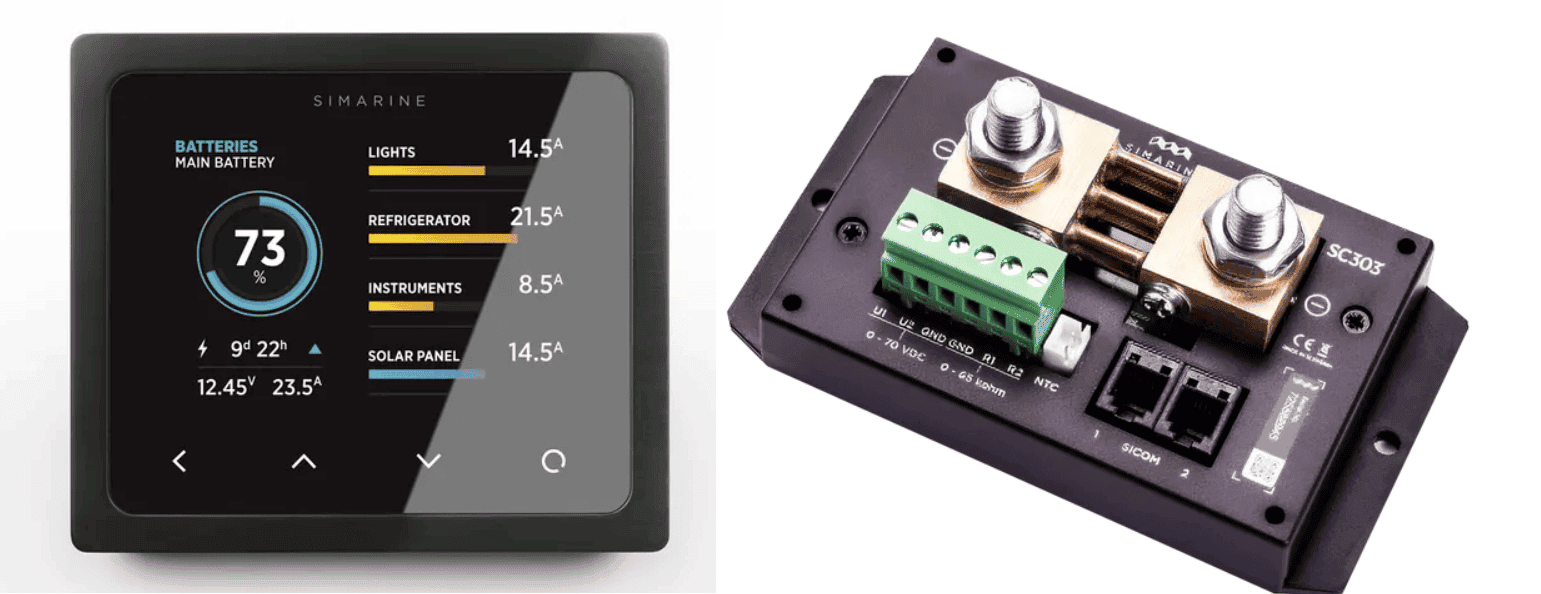

Complete Simarine Pico-3 and SC303 Shunt Bundle
Advanced Lithium Battery Monitoring System for Marine and Off-Grid Use
Take complete control of your off-grid power network with the Simarine Pico-3 panel mount display and SC303 active digital shunt bundle. Designed specifically for complex power setups in caravans, marine vessels, and remote 4x4 builds, this premium command centre completely eliminates the guesswork associated with generic voltage meters. By centralising your battery state of charge, solar monitoring systems, and tank levels into a single intuitive interface, you gain absolute visibility over your critical resources.

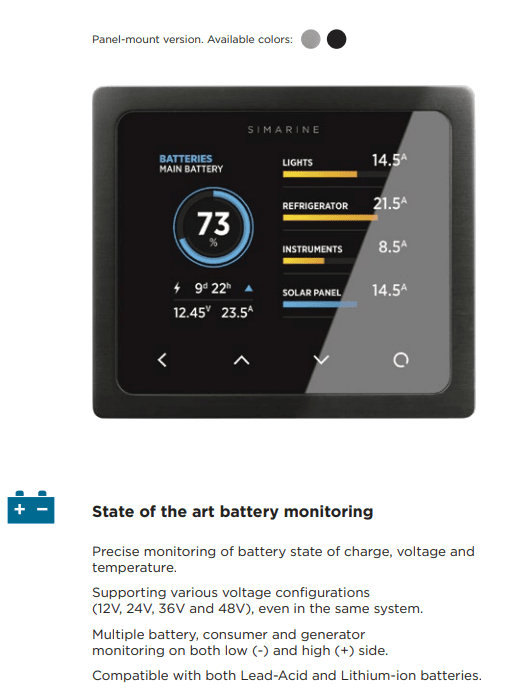

Unlike basic monitors that simply read resting voltage, the Simarine system actively calculates energy flow in real time. This makes it an exceptional lithium battery monitoring system, providing highly accurate State of Charge (SOC) percentages, time-to-go estimates, and precise tracking of heavy current draws from inverters or winches.
High-Accuracy SC303 300A Active Battery Shunt
The included SC303 combo shunt is the powerhouse behind the system's accuracy. Rated for 300A continuous current and capable of handling peak loads up to 700A for under 5 minutes, it is robust enough to monitor the most demanding off-grid configurations. The unit features heavy-duty M10 bolts for secure integration into your primary battery cabling.
Beyond standard current measurement, the SC303 shunt is incredibly versatile. It supports 12V, 24V, and 48V setups (up to 75V maximum), whilst offering additional inputs to monitor two auxiliary voltages, two resistance-based tank levels or temperatures, and one dedicated temperature sensor. Whether you are tracking the input of your solar arrays or monitoring the output to your bow thrusters, the SC303 delivers sampling rates of 100ms for instantaneous data processing.
Premium Pico Panel Mount Display

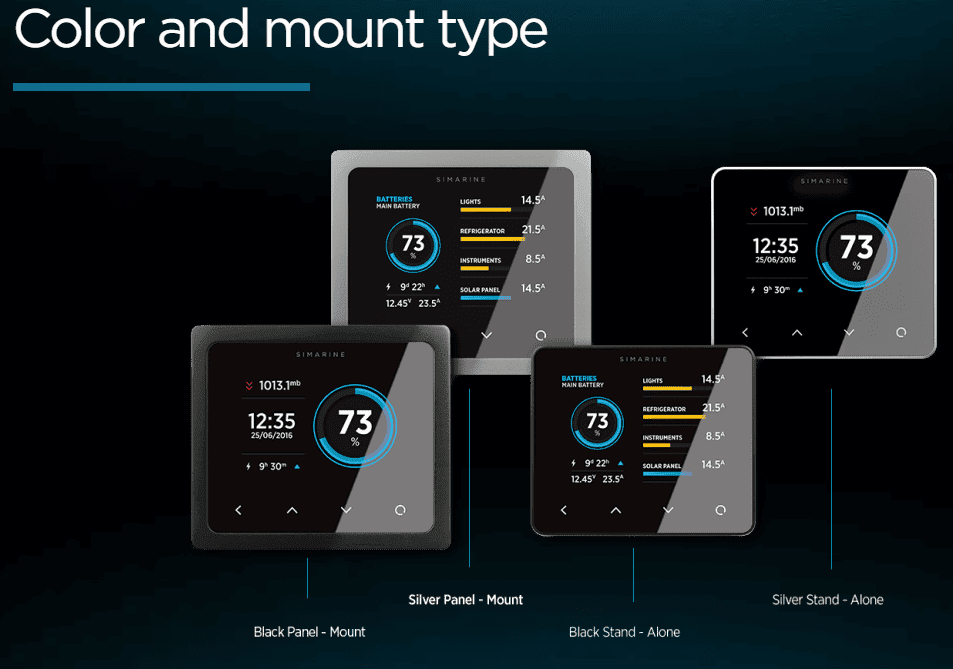

The visual interface of the bundle is the sleek Pico-3 panel mount display in black. Housed in a slim 10mm casing that is CNC-milled from a single piece of premium anodised aluminium, it blends durability with modern aesthetics. The 3.5-inch (approx. 89mm) IPS LCD is protected by anti-reflective Gorilla Glass, ensuring excellent readability even in bright coastal environments. Furthermore, the unit features water-tolerant touch buttons, significantly reducing the risk of moisture failure commonly seen in lower-grade monitors.

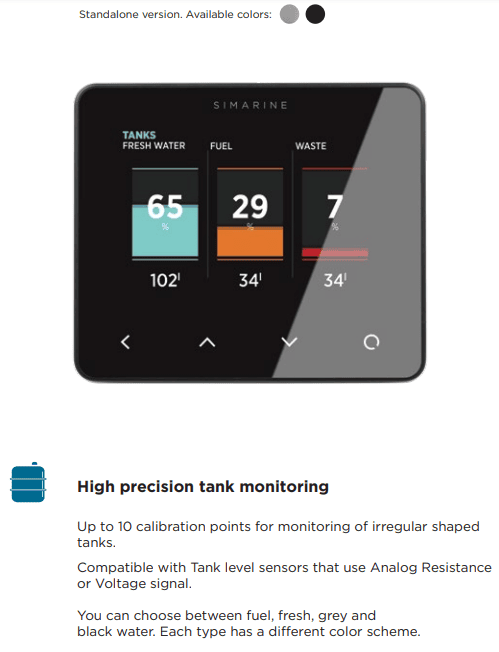

With an integrated WiFi module, the display connects directly to the Simarine smartphone app. This allows you to monitor all battery banks, fluid tanks, and power generation metrics directly from your phone, ensuring you never have to leave your seat to check your remaining power or fresh water levels.
Key Features
- Comprehensive visibility: Connect up to 6 battery banks, 24 shunts, 10 temperature sensors, and 14 tank level sensors.
- Active 300A shunt: SC303 handles 300A continuous and up to 700A peak current with high-accuracy precision.
- Rugged construction: Premium CNC-milled aluminium casing with water-tolerant buttons and anti-reflective Gorilla Glass.
- App integration: Built-in 2.4 GHz WiFi for real-time monitoring and configuration via the Simarine smartphone application.
- Lithium and AGM compatible: Advanced algorithms provide exact State of Charge (SOC) tracking for multiple battery chemistries.
- Extensive expandability: Included SICOM splitter and 4m data cable make daisy-chaining additional modules simple.
- Built-in logger: Retains up to 3 months of power usage data to help identify consumption trends.
Reduce Risks on the Road and Water

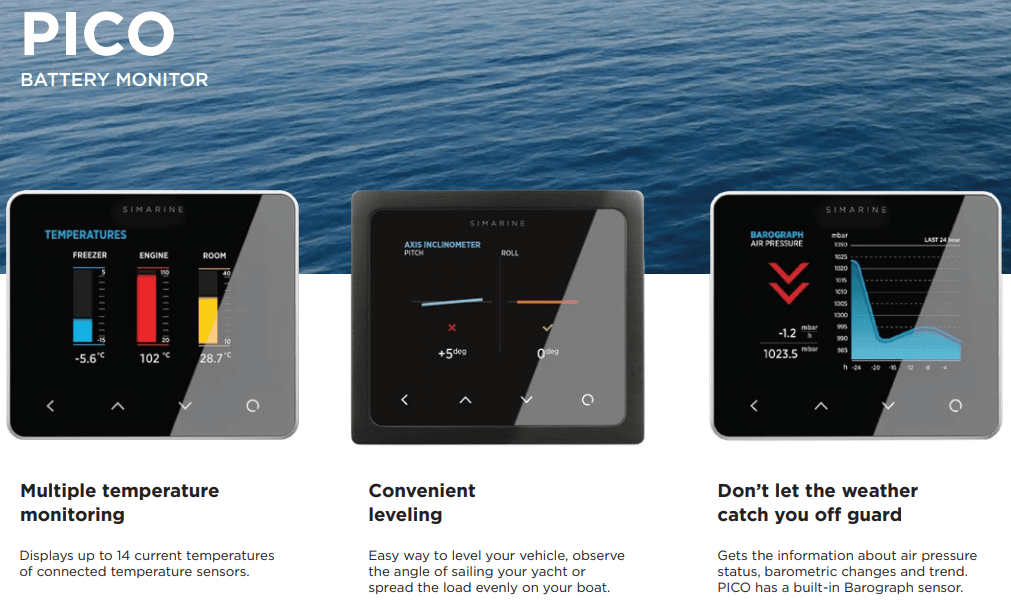

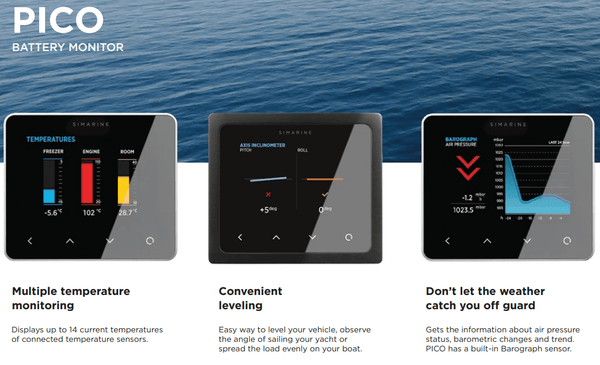

Upgrading to a professional-grade battery and tank monitoring system solves the core issues of off-grid travel: power anxiety and resource depletion. By having exact measurements of your fresh, grey, and black water tanks alongside your battery capacity, you eliminate the risk of unexpected power blackouts or running dry in remote locations. The system also includes barograph and inclinometer functionalities to further enhance environmental awareness by tracking air pressure trends and vehicle levelling.
Ready to Upgrade Your Command Centre?
Secure total peace of mind for your next off-grid adventure. Install the Simarine Pico-3 and SC303 shunt bundle to experience unparalleled accuracy in your power and fluid management system.
SKU: SI-BUNDLE-01
SPECIFICATIONS
Specifications
| Display Unit | PICO Battery Monitor |
|---|---|
| Display Mount Type | Panel Mount |
| Display Colour | Black |
| Display Screen | 3.5" High Resolution IPS Display with Gorilla® Glass and Anti-Reflective Coating |
| Display Protection | Water and Dust Resistant |
| Display Power Source Voltage Range | 6 - 35 V |
| Display Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Display Power Consumption at 12 V | WiFi On, 100% illumination 90 mA; WiFi Off, 70% illumination 35 mA; WiFi Off, 0% illumination 18 mA; Power Off, logger still active 5 mA |
| Display Current | Range -999.99 to +999.99 A; Resolution 0.01 A |
| Display Voltage | Range 0 - 75 VDC; Resolution 0.001 V |
| Display Amp Hours (Ah) | ±0.1 Ah |
| Display Temperature | Range -40°C to +150°C; Resolution 0.1°C / °F |
| State Of Charge | 0 - 100 % |
| WiFi Radio Frequency Band | 2.4 GHz |
| Display Dimensions (Without Connector) | 108.5 x 94 x 10 mm (4.27 x 3.70 x 0.39 in) |
| Panel Cutout | 98 x 83 mm |

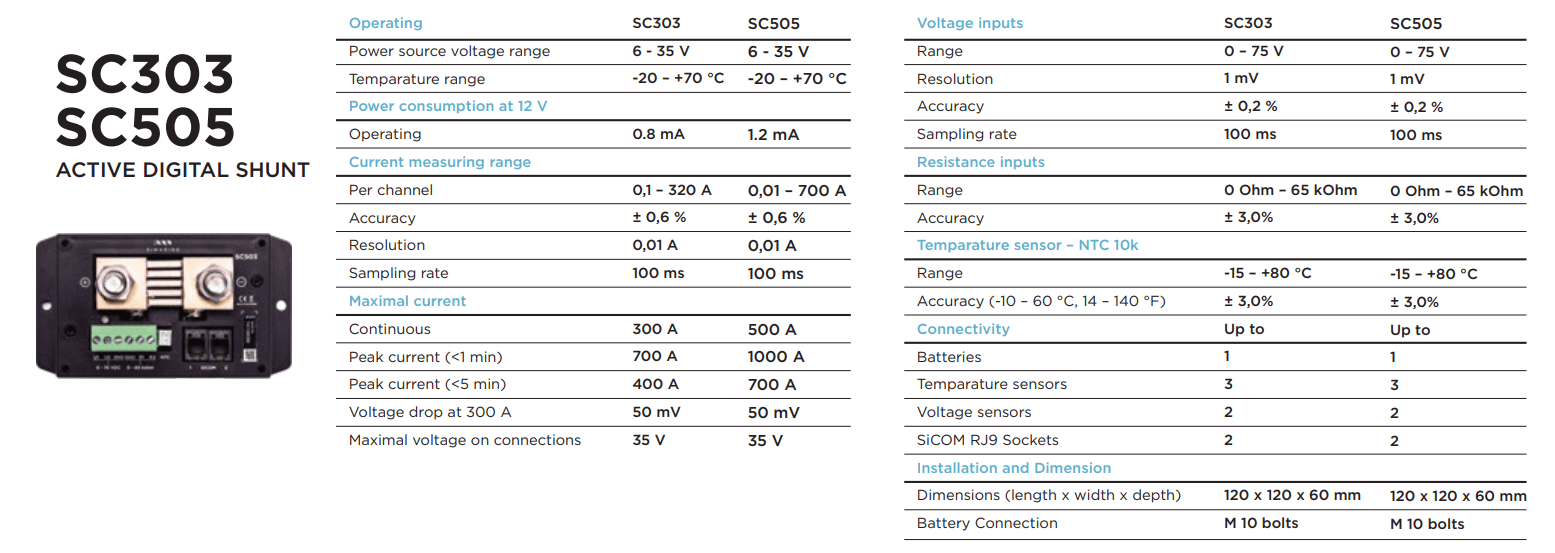

| Shunt Module | SC303 |
| Shunt Type | Active Combo Shunt |
| Shunt System Compatibility | Up to 75 V systems |
| Shunt Maximal Power | 3600 W at 12 V or 7200 W at 24 V |
| Shunt Input Configuration | 2 voltage inputs, 2 resistance inputs, 1 JST socket for the temperature sensor |
| Shunt Voltage Range | 6 - 35 V |
| Shunt Operating Temperature Range | -20°C to +70°C (-4°F to +158°F) |
| Shunt Power Consumption at 12 V | 1.2 mA |
| Shunt Current Measurement | 0.01 - 300 A; Accuracy ±1%; Resolution 0.01 A; Sampling Rate 100 ms |
| Shunt Current Rating | Continuous 300 A; Peak current (<5 min) 400 A; Peak current (<1 min) 700 A |
| Shunt Voltage Drop at 300 A | 37.5 mV |
| Shunt Maximal Voltage on Terminals | 35 V |
| Shunt Voltage Inputs (U1, U2) | 2; Range 0 - 75 V; Accuracy ±0.3%; Resolution 1 mV; Sampling Rate 100 ms |
| Shunt Resistance Inputs (R1, R2, JST Socket) | 3; Range 0 Ohm - 65 kOhm; Accuracy ±3% |
| Temperature Sensor | NTC 10k; Range From -13°C to +80°C; Accuracy ±3.0% (from -10 to +60°C, from 14 to 140°F) |
| Shunt Communication | SiCOM |
| Shunt Dimensions | 125 x 70 x 22 mm (4.92 x 2.75 x 0.86 in) |
| Shunt Battery Connection | M10 bolts |
| SKU: | SI-BUNDLE-01 |
| Model #: | SI-BUNDLE-01 |
| MPN: | SI-BUNDLE-01 |
