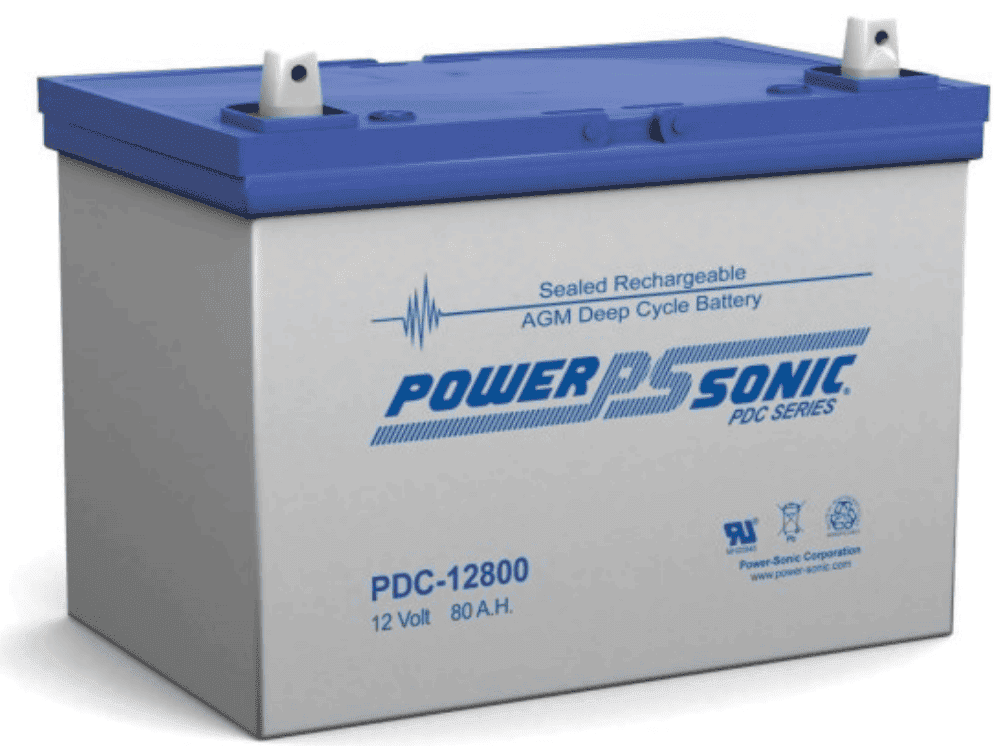

Power-Sonic 12V 80Ah AGM Deep Cycle Battery
Spill-Proof AGM Tech - Ideal for Marine, RV & Mobility - 260x168x208mm
Victron 12/24V 65A BatteryProtect Low Voltage D...DESCRIPTION
Power-Sonic PDC Series: Reliable 12V 80Ah AGM Deep Cycle Battery
The Power-Sonic 12V 80Ah AGM Deep Cycle Battery from the PDC series is engineered for applications demanding consistent, long-duration power delivery. Unlike standard starter batteries designed for short, high-current bursts, this unit features oversized negative plates and a specialised paste formulation optimised for deep cycling. This construction allows the battery to withstand regular charge and discharge cycles without significant degradation, making it an ideal choice for off-grid energy storage, marine auxiliary power, and mobility solutions.
Built with Absorbent Glass Mat (AGM) technology, the electrolyte is suspended in fibreglass separators, creating a spill-proof and maintenance-free design. This valve-regulated construction ensures safe operation in any orientation, a critical feature for marine and caravan installations where space is limited and movement is constant. The rugged ABS case, rated UL94-HB for impact resistance, protects internal components from vibration and physical stress, ensuring longevity in harsh environments.
Superior Deep Cycle Performance
Deep cycle batteries are subjected to different stresses than starting batteries. The Power-Sonic PDC range addresses this by incorporating special additives in the active material paste, enhancing performance during deep discharge situations. With a nominal capacity of 80Ah at the 20-hour rate, this battery provides reliable energy for extended periods. Whether powering a trolling motor, running lighting systems in a camper, or supporting a mobility scooter, the consistent voltage output ensures your equipment operates efficiently.
- True Deep Cycle Design: Oversized plates and specialised paste formulation support repeated deep discharges.
- Spill-Proof AGM Technology: Valve-regulated design allows safe mounting in any position.
- High Energy Density: Compact footprint delivers substantial power relative to its size and weight (approx. 22.7 kg).
- Rugged Construction: Impact-resistant ABS case meets UL94-HB standards for durability.
- Transport Approved: Certified for air transport under D.O.T., I.A.T.A., F.A.A., and C.A.B. regulations.
Versatile Applications for Mobile and Stationary Use
This 12V 80Ah battery is versatile enough for a wide range of uses. Its ability to handle deep cycles makes it suitable for:
- Marine and Boating: Reliable auxiliary power for electronics, lighting, and trolling motors.
- Caravans and RVs: Stable energy source for living amenities when off-grid.
- Mobility Solutions: Consistent power for electric wheelchairs, scooters, and golf carts.
- Renewable Energy Systems: Effective storage for small-scale solar or wind setups requiring regular cycling.
Technical Specifications and Safety
The battery features a maximum short circuit discharge current of 1725A, providing robust protection against sudden loads. It operates effectively within a discharge temperature range of -20°C to 55°C, accommodating various Australian climate conditions. For optimal lifespan, use a recommended charger such as the Power-Sonic PSC-126000ACX to ensure proper voltage regulation during the recharge phase.
Dimensions are compact at 260mm (L) x 168mm (W) x 208mm (H), with a total height including terminals of 230mm, allowing for easy integration into existing battery compartments. The integrated carry handle facilitates safer handling during installation and maintenance.
Invest in Reliable Power
Upgrade your power system with the Power-Sonic 12V 80Ah AGM Deep Cycle Battery. Designed for durability and consistent performance, it offers a dependable solution for your deep cycle energy needs. Order today to ensure uninterrupted power for your next adventure or project.
SKU: PDC12800
SPECIFICATIONS
Specifications
| Series | PDC Series - Deep Cycle AGM |
|---|---|
| Nominal Voltage | 12.0 V (6.0 cells) |
| Nominal Capacity, 20-hr. | 80.0 Ah (4.0 A to 10.8 V) |
| Nominal Capacity, 10-hr. | 75.0 Ah (7.5 A to 10.8 V) |
| Nominal Capacity, 5-hr. | 68.5 Ah (13.7 A to 10.2 V) |
| Nominal Capacity, 1-hr. | 47.3 Ah (47.3 A to 9.6 V) |
| Approximate Weight | 50.04 lbs (22.7 kg) |
| Dimensions | L: 10.24 in (260.0 mm); W: 6.61 in (168.0 mm); H: 8.19 in (208.0 mm); TH: 9.06 in (230.0 mm) |
| Dimensional Tolerances | +/- 0.08 in (+/- 2 mm) for length, width, and height dimensions |
| Internal Resistance (Approx.) | 7.2 mΩ |
| Max Short Circuit Discharge Current | 1725.0 A |
| Operating Temperature Range, Charge | 32°F (0°C) to 104°F (40°C) |
| Operating Temperature Range, Discharge | -4°F (-20°C) to 131°F (55°C) |
| Case | ABS |
| Recommended Power-Sonic Charger | PSC-126000ACX |
| Configuration Options | PDC-12800 M6; PDC-12800 U |
| SKU: | PDC12800 |
| Model #: | PDC12800 |
| MPN: | PDC12800 |
WARRANTY
Power-Sonic Batteries are warranted throughout Australia against faulty workmanship and materials. Depending on the battery and application the amount of time covered varies (refer below for details).
If a Power-Sonic Battery is defective (other than for the warranty exclusions specified below) during that period, we will replace or repair it at our cost. To make a claim please return the part to Solar 4 RV's. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality. The benefits under this warranty are in addition to other rights and remedies you may have at law. This voluntary warranty is given by Solar 4 RV's.
PS & PSH Series 12 months when used in standby applications 6 months when used in cyclic applications PG Series 24 months when used in standby applications 12 months when used in cyclic applications if average depth of discharge does not exceed 50% 6 months when used in mobility applications (including but not limited to wheelchair, electric scooter, pallet jack, golf buggy) PDC Cyclic & DCG Gel Series 12 months when used in standby and cyclic applications Powersports Motorcycle and Jet Ski Series 12 months warranty PSOPzV – 3 Years full replacement when used in standby or cyclic applications Warranty commences from date of purchase.
Warranty Conditions- This warranty does NOT cover: Normal wear and tear, Transportation costs to and from the place of purchase, Labour for removal and replacement of the unit unless prior written approval has been obtained from Solar 4 RV's, Parts which have been subjected to deliberate abuse, Conditions resulting from abnormal wear, negligence, alterations or accidents, Incorrect fitment, Parts used in an incorrect application or parts that are not used for their intended purpose.
