Victron 48V 20000VA MultiPlus 48/20k/250-100 Inverter/Charger

Advanced multifunctional inverter charger delivering 20 kW continuous power, 25 kW peak power for heavy loads, and a 250 A charger for ultimate energy reliability.


Notify me when available

You have already submited form for Default Title

Thanks for contacting us. We'll get back to you as soon as product / variant is back in stock.
0

DESCRIPTION

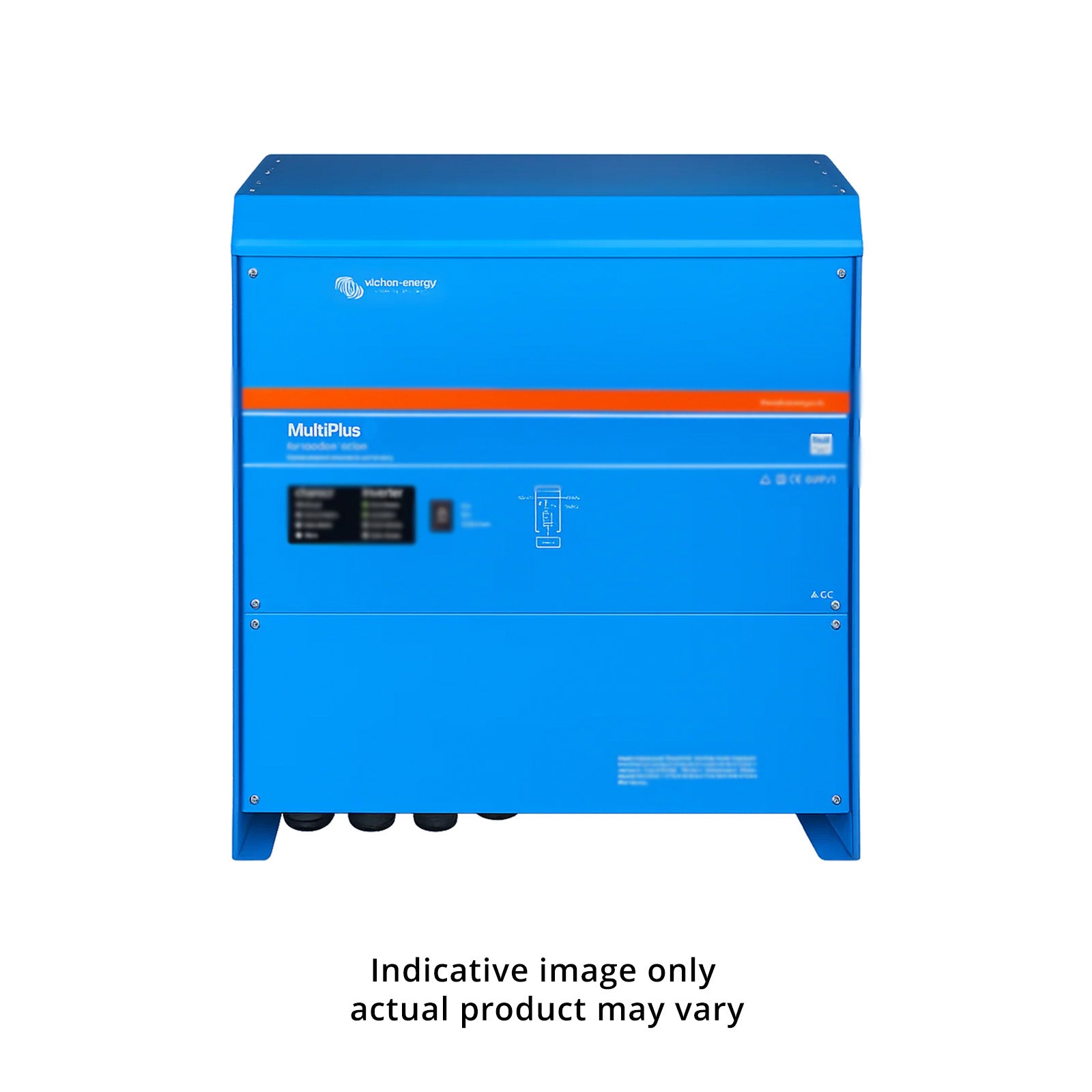

Victron MultiPlus 48/20k/250-100 230V: Professional Off-Grid Energy Management

High-Performance Inverter and Charger for Demanding Applications

The Victron MultiPlus 48/20k/250-100 230V is a premium multifunctional inverter and charger engineered for demanding off-grid, marine, mobile, and industrial setups. Designed to provide a reliable and uninterrupted AC power supply, this unit integrates flawlessly with solar arrays, generators, and grid connections. By combining advanced power conversion technology with intelligent energy management, it ensures your critical systems remain operational even in the most challenging conditions.

Unlike standard power solutions that may struggle with sudden surges, this system delivers an impressive 25 kW of peak power. This high peak capacity is crucial for starting heavy-duty equipment with high inrush currents, such as air conditioners, water pumps, and power tools, without overloading the system. Additionally, the integrated battery charger provides a 250 A charge current, allowing for rapid replenishment of your battery bank. This fast-charging capability is highly beneficial when relying on a generator, as it drastically reduces run hours, minimises noise, and lowers fuel consumption.

Intelligent PowerControl and PowerAssist

Managing multiple power sources can be complex, but the built-in PowerControl and PowerAssist features simplify the process while protecting your equipment. PowerControl allows you to configure a maximum limit for your generator or grid input. The system will prioritise supporting your AC loads and only use the surplus energy for battery charging, preventing the external AC source from overloading.

PowerAssist takes this functionality further by actively supplementing a limited generator or shore power connection with energy from your batteries. When peak demand exceeds the capacity of your AC source, the inverter instantly provides the difference. Once the load decreases, the surplus power is immediately redirected back to charging the batteries. This seamless load sharing provides unmatched stability for high-draw applications.

Seamless Transfer and Dual AC Outputs

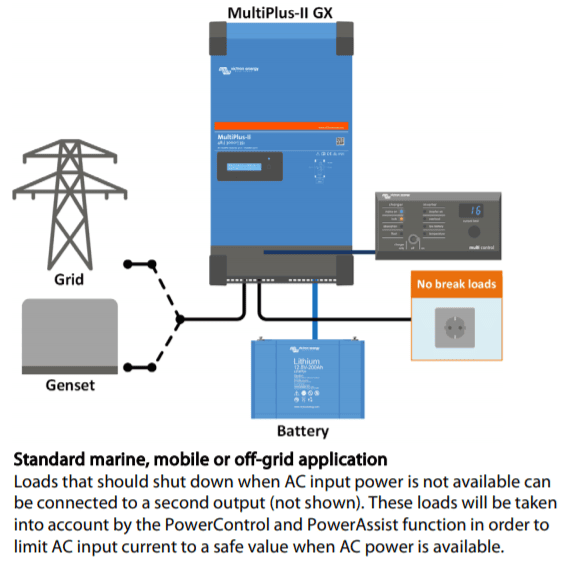

In the event of a grid failure or generator disconnection, the main AC output features an ultra-fast transfer switch that takes over in under 20 milliseconds. This acts as an uninterruptible power supply (UPS), ensuring sensitive electronics like computers, servers, and communication gear remain online without rebooting. A secondary AC output is also available, which remains active only when an external AC source is present, making it perfect for high-draw, non-critical loads like water heaters.

Scalable and Future-Proof System Design

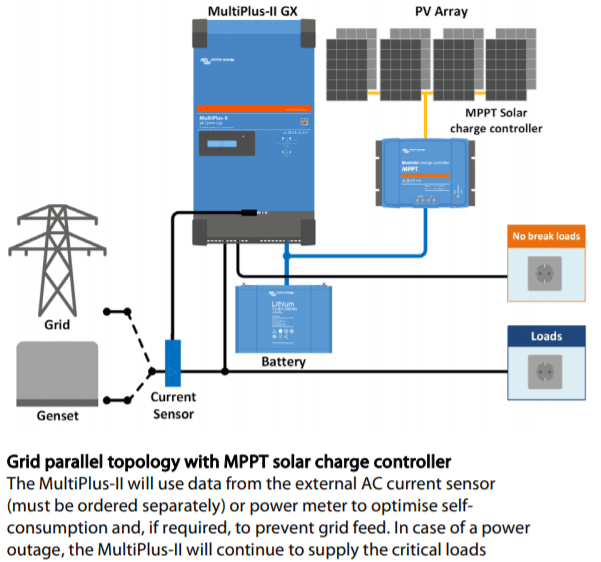

For systems that require even more power, up to six units can operate in parallel to achieve higher output. Furthermore, they can be configured for three-phase operation, making this an incredibly versatile foundation for large-scale energy storage systems. When paired with a GX device, you gain full access to the Victron Remote Management (VRM) portal, allowing you to monitor, control, and optimise your entire power system from anywhere in the world.

Delivering an exceptional 20kW of continuous output power and supporting a 38V to 60V DC input range, this specific model is perfectly suited for large commercial battery banks and heavy industrial loads.

Key Features and Benefits

  • High Peak Power: Effortlessly handles high-inrush appliances like motors and compressors.
  • Rapid Battery Charging: High-capacity charger reduces generator run times and maximises solar utilisation.
  • Advanced Load Management: PowerAssist prevents generator overloads by supplementing power from the battery.
  • Uninterruptible Power Supply (UPS): Instantaneous transfer switch keeps critical loads running seamlessly.
  • Scalable Architecture: Supports parallel and three-phase configurations for expanded system capacity.
  • Robust Construction: Housed in a durable aluminium enclosure with fan-assisted cooling for reliable operation in extreme temperatures.

Build a Resilient Energy System Today

Invest in reliable, continuous power for your remote home, commercial facility, or marine vessel. Upgrade your electrical architecture with the Victron MultiPlus 48/20k/250-100 230V and experience unparalleled control over your energy generation, storage, and consumption.


SKU: VIC-PMC483200400

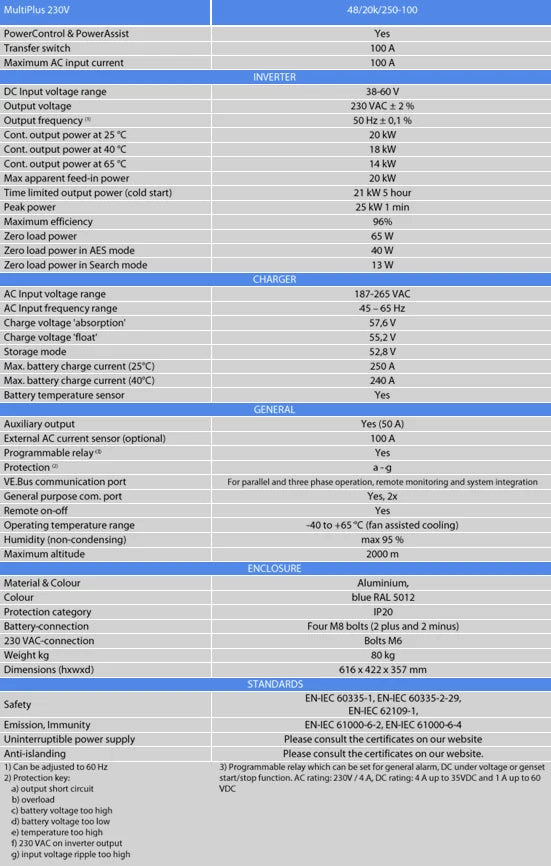

SPECIFICATIONS

Specifications

Model MultiPlus 230V 48/20k/250-100
PowerControl & PowerAssist Yes
Transfer switch 100 A
Maximum AC input current 100 A
INVERTER
DC input voltage range 38 – 60 V
Output voltage 230 VAC ± 2%
Output frequency 50 Hz ± 0.1% (adjustable to 60 Hz)
Continuous output power @ 25°C 20 kW
Continuous output power @ 40°C 18 kW
Continuous output power @ 65°C 14 kW
Max apparent feed-in power 20 kW
Time limited output power (cold start) 21 kW (5 hours)
Peak power 25 kW (1 min)
Maximum efficiency 96%
Zero load power 65 W
Zero load power in AES mode 40 W
Zero load power in Search mode 13 W
CHARGER
AC input voltage range 187 – 265 VAC
AC input frequency range 45 – 65 Hz
Charge voltage (absorption) 57.6 V
Charge voltage (float) 55.2 V
Storage mode 52.8 V
Max battery charge current @ 25°C 250 A
Max battery charge current @ 40°C 240 A
Battery temperature sensor Yes
GENERAL
Auxiliary output Yes (50 A)
External AC current sensor (optional) 100 A
Programmable relay Yes
Protection a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Maximum altitude 2000 m
ENCLOSURE
Material Aluminium
Colour Blue RAL 5012
Protection category IP20
Battery connection Four M8 bolts (2 plus and 2 minus)
230 VAC connection Bolts M6
Weight 80 kg

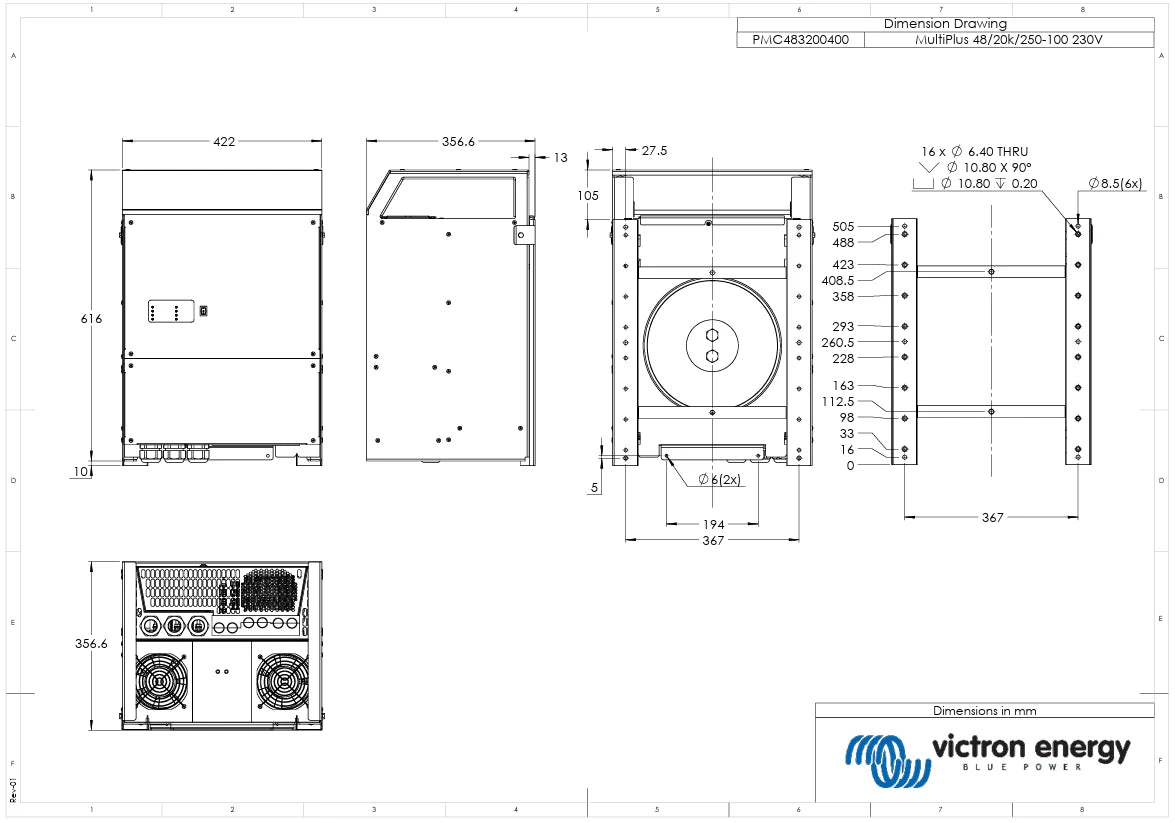

Dimensions (h x w x d) mm 616 x 422 x 357
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN-IEC 61000-6-2, EN-IEC 61000-6-4
Uninterruptible power supply Please consult the certificates on our website
Anti-islanding Please consult the certificates on our website

SKU: VIC-PMC483200400
Barcode: 8719076068358
Model #: PMC483200400
MPN: PMC483200400

WARRANTY

Victron Energy Limited Warranty Policy

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the end user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead acid batteries; 2 years from date of purchase by the end user, with a maximum of 30 months from the Victron Energy invoice date, Lithium-ion batteries; 3 years from date of purchase by the end user. In addition to this proof of correct battery usage is required when making a battery warranty claim.

During this period, Victron Energy will, at its option, repair or replace the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation and re‐installation. This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like: • Reverse of battery polarity. • Inadequate connection. • Mechanical shock or deformation. • Contact with liquid or oxidation by condensation. • Use in inappropriate environment (dust, corrosive vapor, humidity, high temperature, biological infestation...). • Breakage or damage due to lightning. • Connection terminals and screws destroyed or other damages, like overheat, due to insufficient tightening. • For any electronical breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state ofthe internal control diode and of the inputs/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone else than Victron Energy or one of its authorized Qualified Service Partners. In order to qualify for the warranty, the product must not be disassembled or modified.

Repair or replacement are our sole remedies and Victron Energy shall not be liable for damages, whether direct, incidental,special, or consequential, even caused by negligence or fault.

Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers in performing warranty repairs and building replacement products. If Victron Energy repairs or replaces a part of a product, its warranty term is not extended. In case of replacement the new component has a warranty of 6 months, without effect on the initial warranty period. All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent orspecial damages, even if having been advised of the probability of such damages. Any and all other warranties expressed or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited in duration to a period of two (2) years from the date of purchase.

Life Support Policy As a general policy, Victron Energy, does not recommend the use of any of its products in life support applications where failure or malfunction of the Victron Energy's product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the Liability of Victron Energy is adequately protected under the circumstances.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be taken with the merchant, or if he is either unable or not allowed to provide service, direct contact should be taken with Victron Energy.

Warranty on Repairs The warranty period on products or on printed circuits boards repaired by Victron Energy as well as on printed circuit boards for replacement is 6 months from delivery by Victron Energy.

Transport It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability If a part of the terms and conditions set out above is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions remaining.

For Australia only Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
