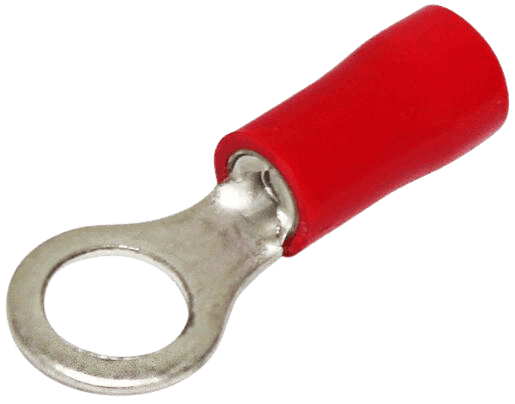

Hellermann Tyton Pre-Insulated Terminal Red Ring Lug M8 Hole

Hellermann Tyton Pre-Insulated Red Ring Lug M8: Reliable Connections for 0.5–1.5 mm² Cable

Engineered for Secure, Vibration-Resistant Terminations

The Hellermann Tyton Pre-Insulated Red Ring Lug M8 is a professional-grade electrical terminal designed to create durable, low-resistance connections in demanding environments. Suitable for 0.5–1.5 mm² conductors, this ring lug features an 8.4 mm stud hole (M8) and a double-grip crimp design that provides exceptional mechanical strength and electrical integrity, even under high vibration. Its colour-coded red vinyl insulation enables quick identification of the correct terminal for your cable size, reducing installation errors and improving workflow efficiency.

Manufactured from high-conductivity copper with a three-piece construction, this terminal ensures a robust connection that resists pull-out and maintains performance over time. The PVC insulation is rated for continuous operation up to +75 °C, making it suitable for a wide range of automotive, marine, and industrial applications where reliability is critical.

Key Features

• Double-grip crimp secures both conductor and insulation for superior vibration resistance
• Colour-coded red vinyl insulation for instant cable size recognition (0.5–1.5 mm²)
• Three-piece copper construction ensures consistent electrical performance and mechanical durability
• 8.4 mm stud hole fits M8 bolts and studs, common in electrical panels and equipment
• Rated to 600 V maximum voltage and 19 A maximum current for versatile low-voltage use
• RoHS compliant materials for environmentally responsible installations

Why Choose Hellermann Tyton Pre-Insulated Terminals?

Generic terminals often compromise on material quality or insulation integrity, leading to loose connections, overheating, or premature failure. Hellermann Tyton’s pre-insulated ring lugs address these risks with a precision-engineered design that meets stringent industry standards. The double-grip crimp is particularly valuable in mobile or machinery applications where constant movement can loosen standard terminals. By gripping both the wire strands and the insulation, it minimises strain on the conductor and helps prevent intermittent faults.

The vinyl insulation is not only colour-coded for convenience but also provides reliable dielectric protection up to 600 V. This makes the terminal suitable for 12 V, 24 V, and 48 V DC systems commonly found in automotive, solar, and backup power installations, as well as low-voltage AC circuits. Note that the stated 19 A rating is a maximum current; typical de-rating factors apply based on ambient temperature, bundling, and duty cycle.

Applications

This red M8 ring lug is ideal for terminating 0.5–1.5 mm² cables in a variety of settings:

• Automotive wiring: secure connections for lighting, sensors, and auxiliary circuits
• Marine and RV systems: vibration-resistant terminations for onboard electronics
• Control panels: neat, identifiable connections for PLCs, relays, and terminal blocks
• Solar and battery installations: reliable low-voltage connections up to 600 V
• General electrical maintenance: a dependable choice for repairs and upgrades

Installation Notes

For best results, use a quality ratchet crimping tool with the appropriate die profile for pre-insulated terminals. The double-grip design requires a two-stage crimp: one section compresses the conductor barrel, while the other secures the insulation. This ensures maximum pull-out strength and long-term reliability. Always verify that the conductor size falls within the 0.5–1.5 mm² range and that the stud size matches the 8.4 mm hole.

When selecting terminals for your project, consider the environmental conditions. The PVC insulation performs well in dry, moderate-temperature environments. For applications exceeding +75 °C or involving exposure to chemicals, consult the manufacturer’s specifications or consider alternative insulation materials.

Upgrade Your Electrical Connections Today

Whether you’re wiring a vehicle, building a control panel, or maintaining industrial equipment, the Hellermann Tyton Pre-Insulated Red Ring Lug M8 delivers the quality and consistency professionals demand. Add this terminal to your toolkit and experience the difference that precision engineering makes in every connection.
