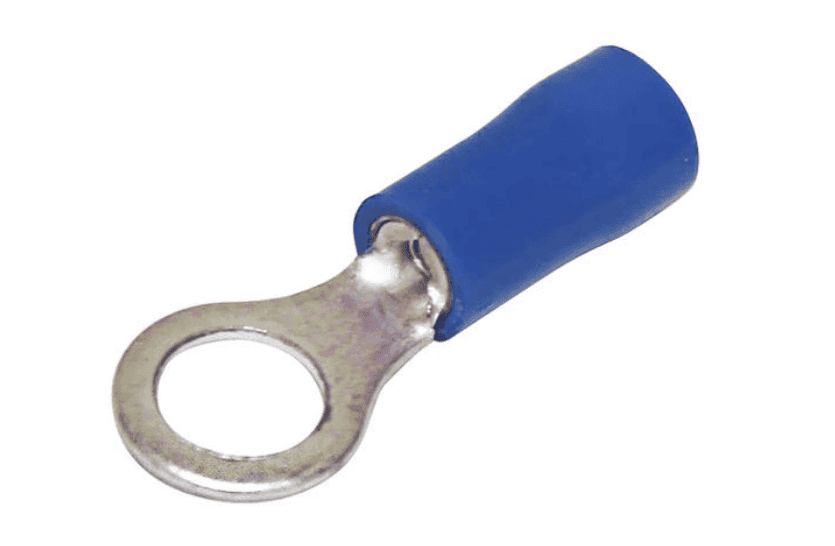

Hellermann Tyton Pre-Insulated Terminal Blue Ring Lug M10 Hole

Hellermann Tyton Blue Pre-Insulated Ring Terminal: Reliable Connections for High-Vibration Environments

Engineered for Secure, Long-Lasting Electrical Terminations

The Hellermann Tyton Pre-Insulated Blue Ring Lug is designed to deliver consistent, secure connections in demanding applications. With a double-grip crimp design, this terminal provides enhanced mechanical holding force, making it particularly effective in high-vibration environments such as automotive engine bays, marine electrical systems, and industrial machinery. The M10 stud hole (10.5 mm) accommodates standard metric fasteners, ensuring broad compatibility across common electrical installations.

Manufactured using a three-piece process, the terminal integrates a copper conductor barrel, a vinyl insulation sleeve, and a tin-plated ring tongue. This construction ensures optimal conductivity while the colour-coded blue insulation enables quick identification for 1.5–2.5 mm² cable sizes. The vinyl insulation is rated for continuous operation at +75 °C, providing reliable performance in moderate thermal conditions.

Double-Grip Crimp: Superior Vibration Resistance

Unlike standard single-crimp terminals, the double-grip feature employs two distinct crimping zones: one secures the conductor strands, while the other grips the insulation. This dual-action mechanism significantly reduces the risk of wire pull-out and fatigue failure, a common issue in applications subject to constant movement or vibration. For installers working on automotive wiring, marine electronics, or control panels, this design translates to fewer maintenance callbacks and improved system reliability.

Key Features

• Double-grip crimp for enhanced mechanical strength in high-vibration settings
• Colour-coded blue vinyl insulation for fast, error-free cable size identification
• Three-piece construction with copper barrel and tin-plated ring for excellent conductivity
• M10 stud hole (10.5 mm) fits standard metric bolts and studs
• Rated for 27 A maximum current and 600 V maximum voltage, suitable for low-voltage DC and AC circuits
• Operating temperature up to +75 °C, ideal for engine compartments and enclosed panels
• Supplied in resealable bags for convenient storage and inventory management

Built for Demanding Electrical Systems

The copper conductor barrel ensures low electrical resistance, minimising voltage drop and heat generation at the connection point. The tin-plated ring tongue resists corrosion, extending service life even in humid or mildly corrosive environments. While the vinyl insulation is rated to +75 °C, it is important to note that typical de-rating factors apply when bundling multiple cables or operating in high-ambient-temperature enclosures. Always refer to local wiring regulations and derating tables to ensure safe current-carrying capacity.

This terminal is part of the Hellermann Tyton pre-insulated range, known for consistent manufacturing quality and compliance with ROHS standards. The resealable bag packaging helps keep terminals organised and protected from contamination, a practical benefit for workshops and field service kits.

Ideal Applications

• Automotive wiring: Secure connections for lighting, sensors, and auxiliary circuits
• Marine electrical systems: Corrosion-resistant terminations for bilge pumps, navigation lights, and switch panels
• Industrial control panels: Reliable ring lug terminations for terminal blocks and earth bars
• Caravan and RV power systems: Durable connections for 12 V and 24 V DC circuits
• General low-voltage wiring: Suitable for power supplies, battery connections, and equipment grounding

Professional-Grade Termination for Critical Circuits

When compared to generic uninsulated terminals, the Hellermann Tyton pre-insulated ring lug reduces installation time and the risk of short circuits by providing integrated insulation. The double-grip design addresses a key failure mode in mobile and industrial applications: wire fatigue at the crimp point. By securing both the conductor and the insulation, this terminal helps maintain electrical integrity over thousands of thermal cycles and vibration events.

For technicians and engineers who prioritise long-term reliability, this terminal offers a practical solution that aligns with professional wiring standards. Whether you are rewiring a classic vehicle, building a custom switch panel, or maintaining fleet equipment, the Hellermann Tyton Blue Ring Lug M10 delivers consistent performance.

Upgrade Your Electrical Connections Today

Stock your workshop or service vehicle with Hellermann Tyton pre-insulated terminals and experience the difference that precision manufacturing and thoughtful design can make. Add the Blue M10 Ring Lug to your order now and ensure your next wiring project is built to last.
