Exotronic 200W Portable Folding Solar Panel - No Controller

Exotronic 200W Portable Folding Solar Panel: High-Efficiency PERC Technology for Off-Grid Power

Compact, Foldable 200W Solar Panel for Camping, Caravans, and Emergency Backup

The Exotronic 200W Portable Folding Solar Panel delivers reliable, high-efficiency energy in a lightweight, foldable design. Built with 23% efficient Trina half-cut PERC monocrystalline cells and a 9-wire busbar layout, this panel maximises power output while minimising resistive losses and hot spots. Whether you're camping off-grid, topping up a caravan battery, or need a portable charging solution for remote work, this panel provides consistent performance even in challenging conditions.

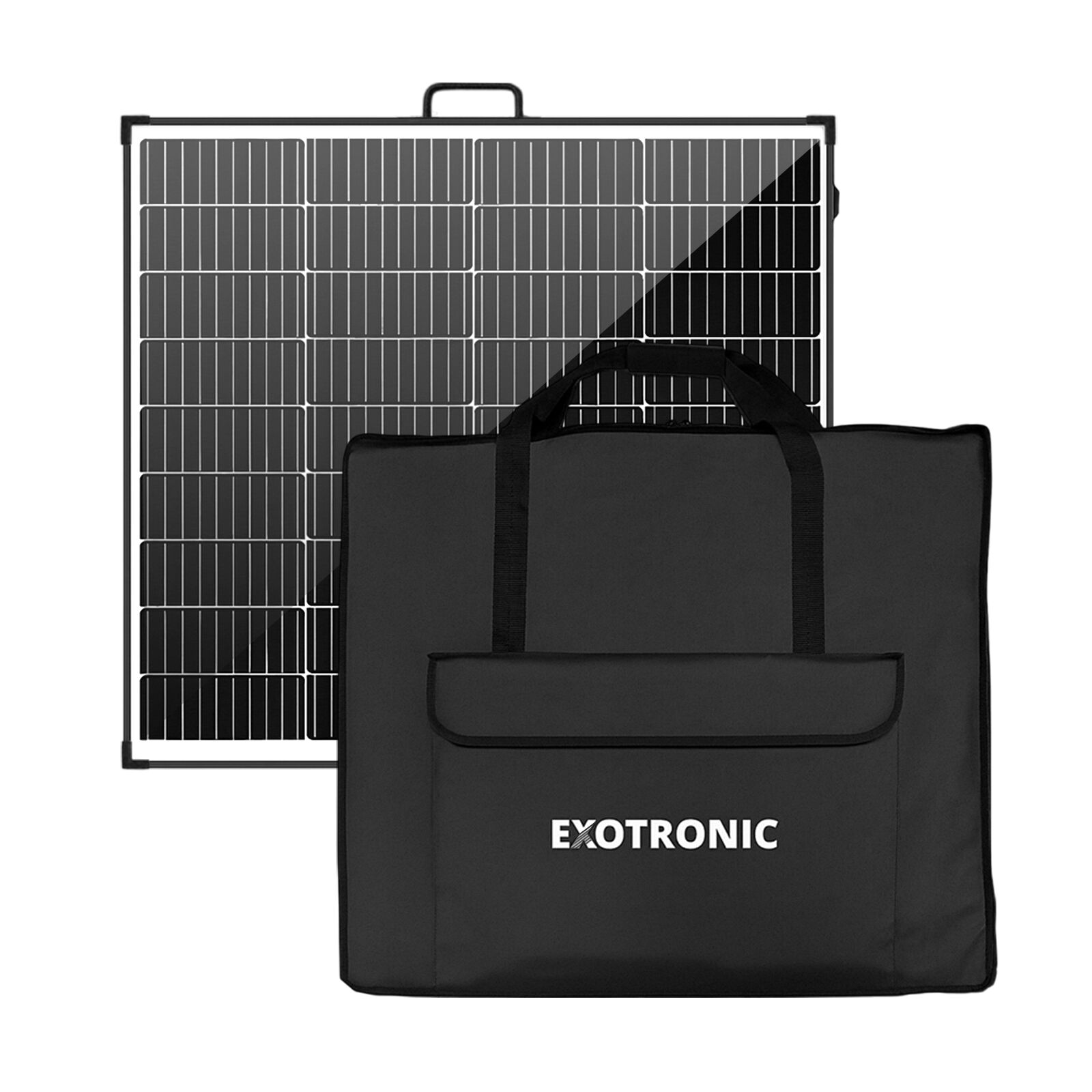

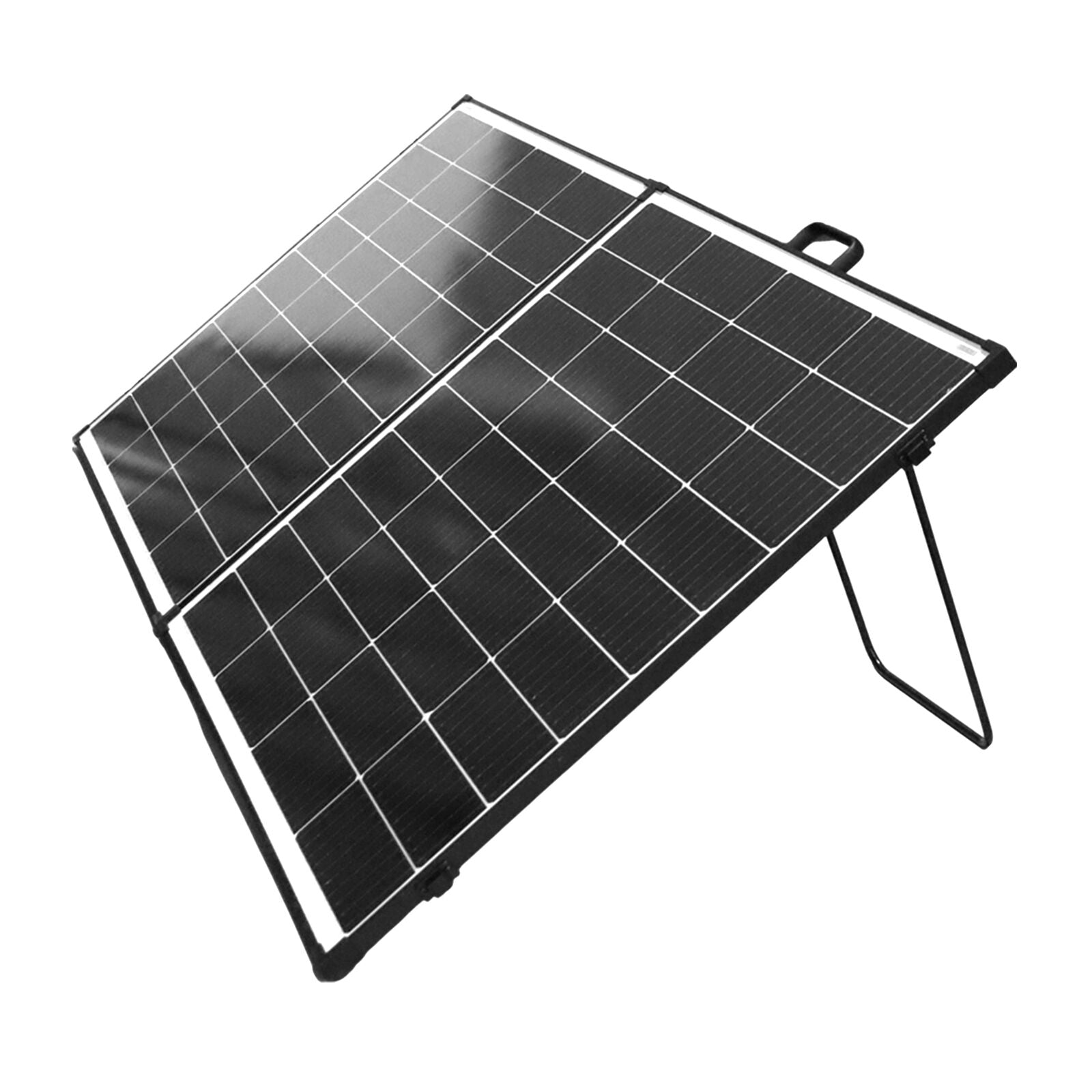

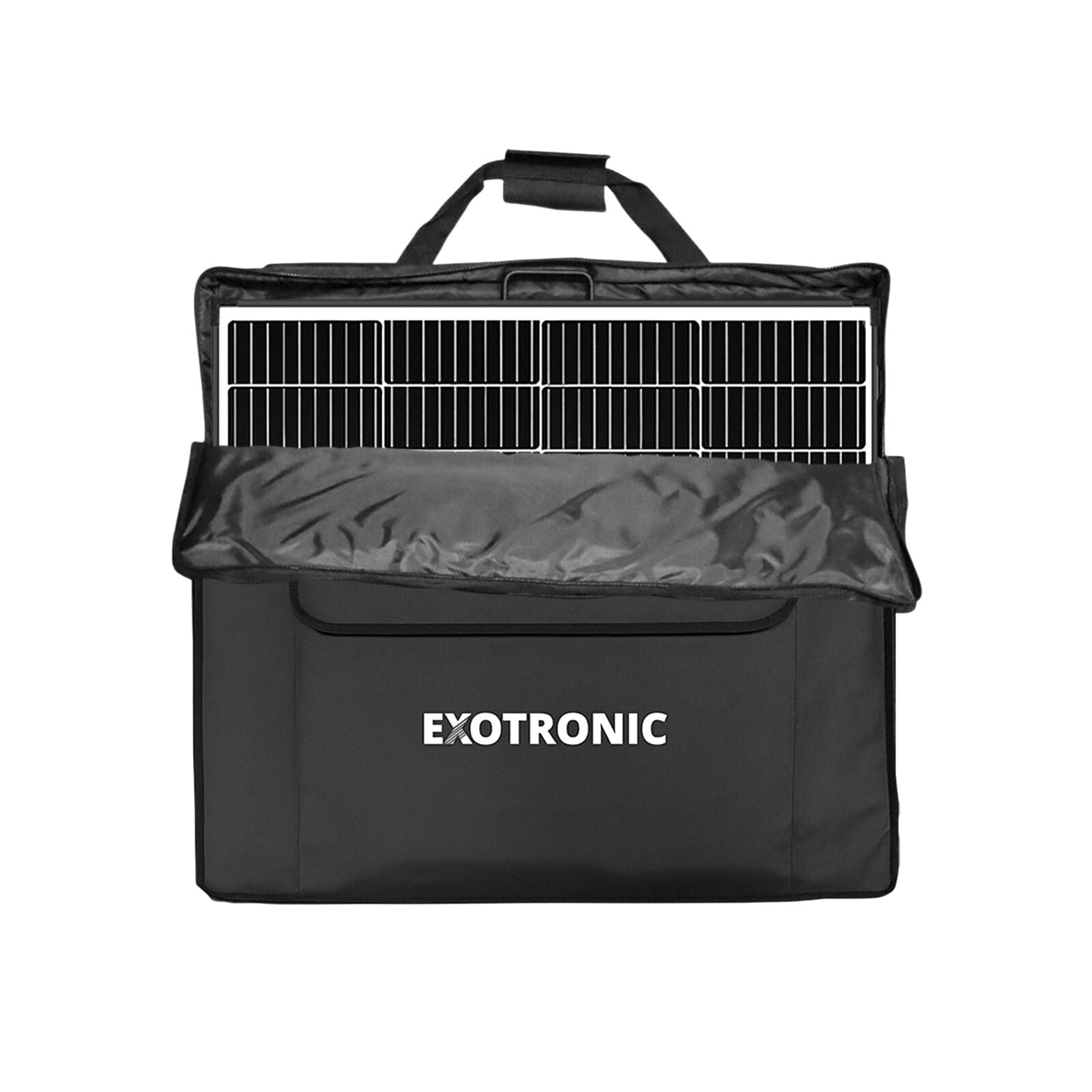

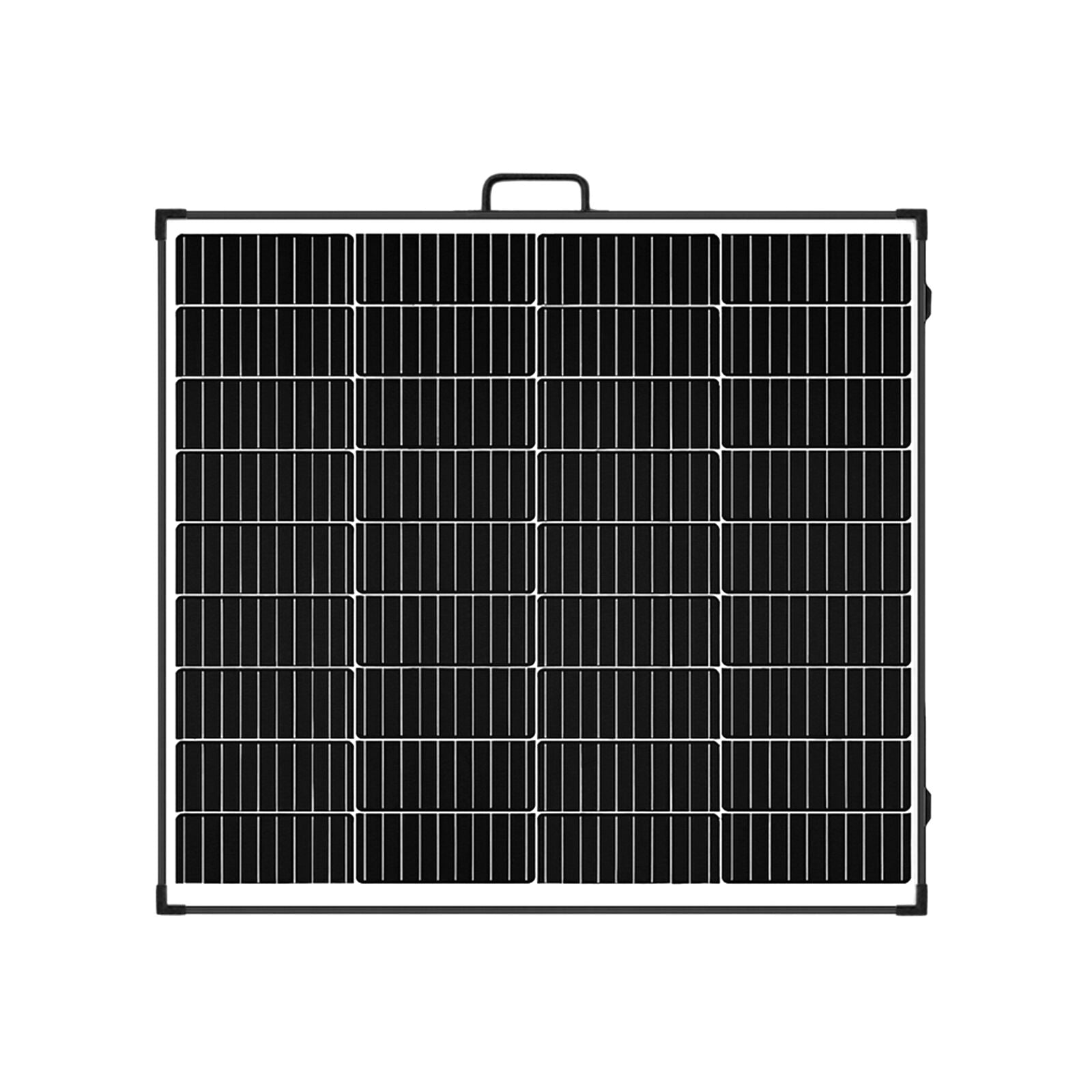

Weighing only 11.2 kg and folding down to 780 x 670 x 40 mm, it’s easy to transport and store. The included padded canvas carry bag protects the panel during transit and features a pocket for cables and accessories. Fold-away legs and corner bumpers enable quick setup on uneven terrain, while the independent wiring of each 100W section ensures continued operation if one side is shaded—a critical advantage over single-circuit portable panels.

Advanced PERC Cell Technology for Superior Low-Light Performance

At the core of this panel are Trina monocrystalline PERC (Passivated Emitter Rear Contact) cells. Unlike standard monocrystalline cells, PERC technology reflects unabsorbed light back into the cell for a second pass, boosting energy capture in low-light conditions such as overcast skies, early mornings, or shaded campsites. Combined with a 9-wire busbar design, current is distributed evenly across the cell surface, reducing resistance and minimising hot spots that can degrade performance over time.

This results in a module efficiency of 19.3% and a positive power tolerance, meaning the panel consistently meets or exceeds its rated 200W output under real-world conditions. The half-cut cell configuration further enhances shade tolerance and reduces mismatch losses, making it a robust choice for mobile solar applications.

Premium Connectivity and Versatile Cable Set

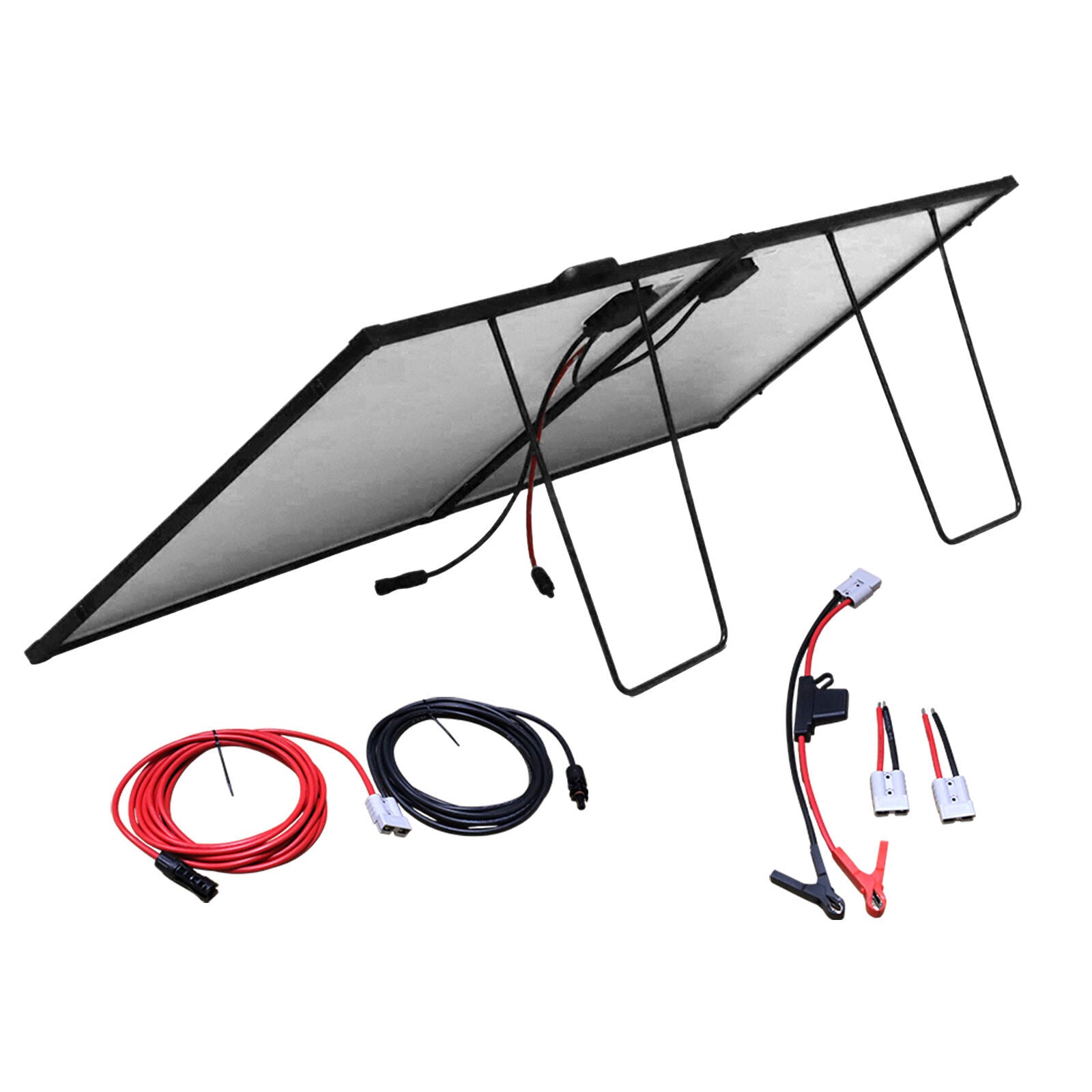

The Exotronic 200W panel comes equipped with a comprehensive cable kit to suit a variety of setups:

• 5m 4 m² PV1-F tinned copper marine cable with MC4 to 50A grey Anderson connector—ideal for connecting to a solar charge controller or DC-DC charger solar input. Tinned copper resists corrosion in humid or coastal environments.
• Two 50A grey Anderson tails for direct integration with your existing MPPT or PWM solar controller.
• Alligator clips to 50A grey Anderson with a 30 A fuse—useful for jump-starting a lithium battery BMS or charging a starter battery in an emergency.

Note: Always use a solar charge controller between the panel and battery to prevent overcharging. The panel’s MC4-compatible connectors and IP65/IP67 junction box ensure reliable, weather-resistant connections.

Built for Australian Conditions

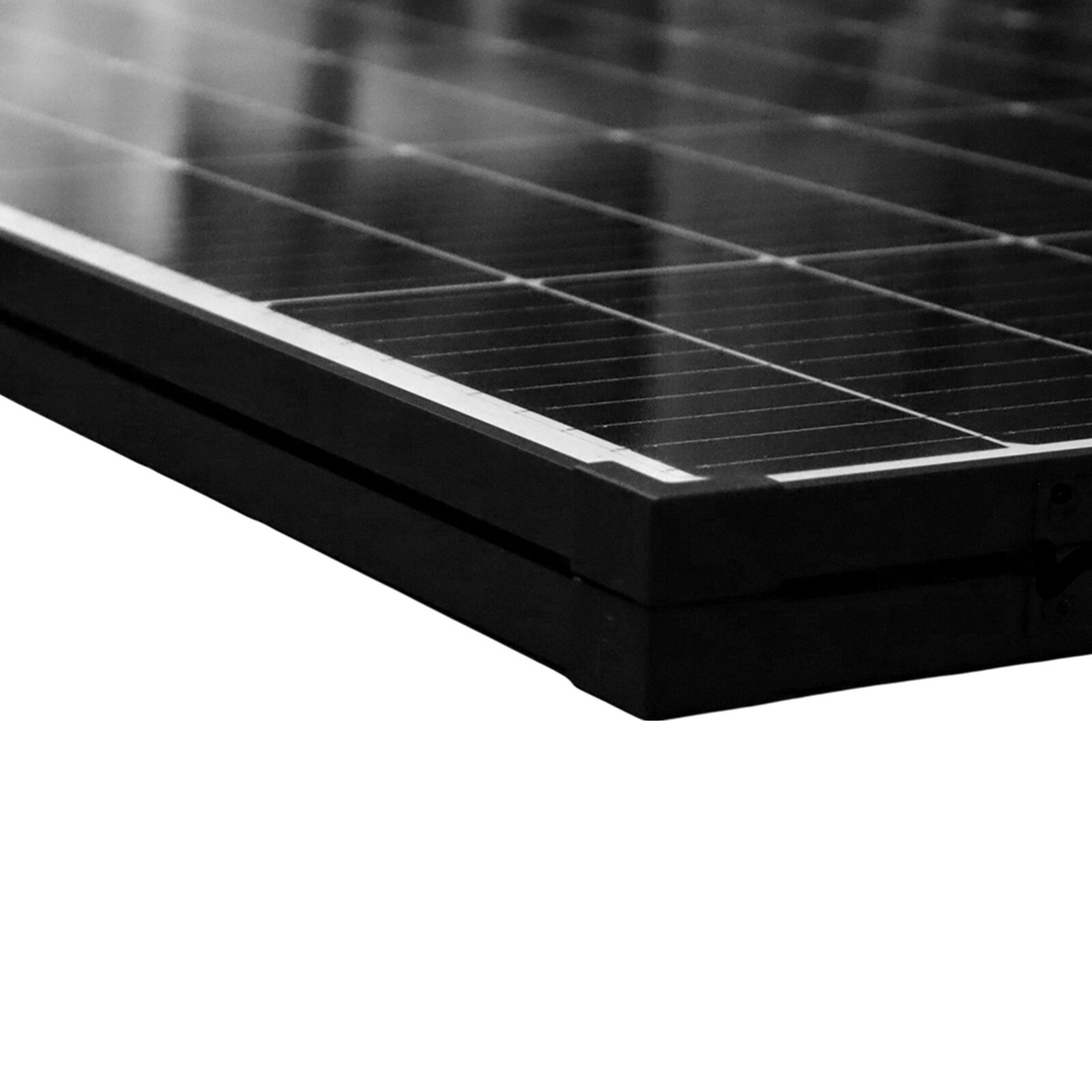

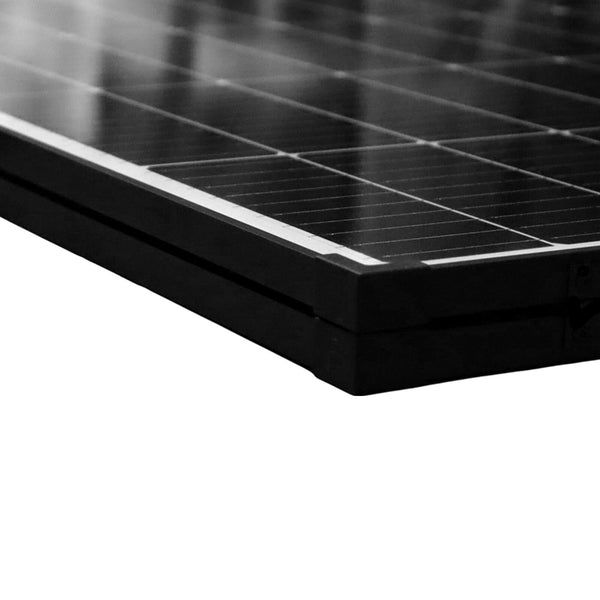

Designed to withstand the rigours of outdoor use, the panel features a 3.2 mm tempered glass front and a black anodised aluminium alloy frame that resists corrosion and physical impact. The junction box is rated IP65/IP67, providing protection against dust and water ingress—essential for unpredictable weather. With an operating temperature range of -40 °C to +85 °C, it performs reliably in extreme heat or cold.

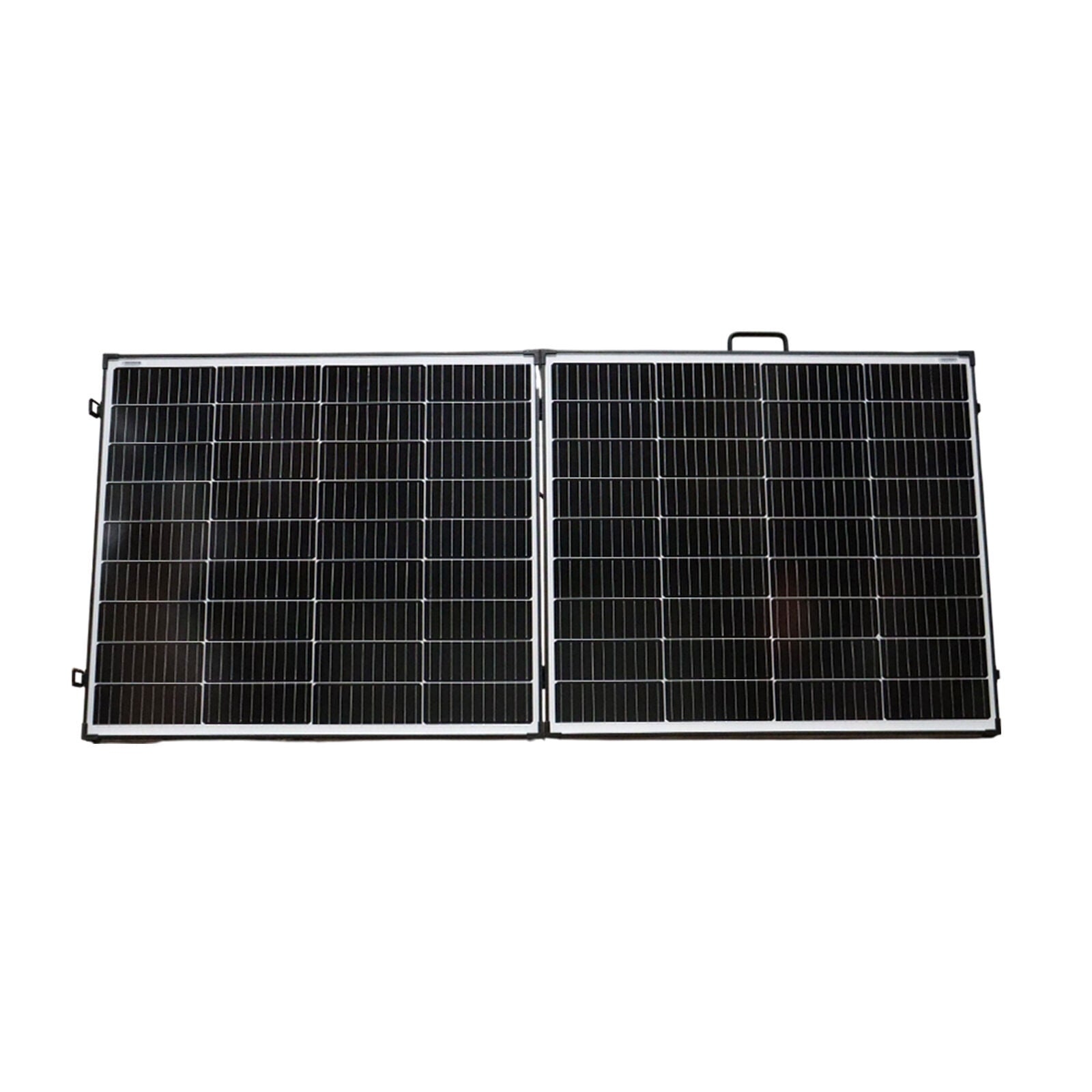

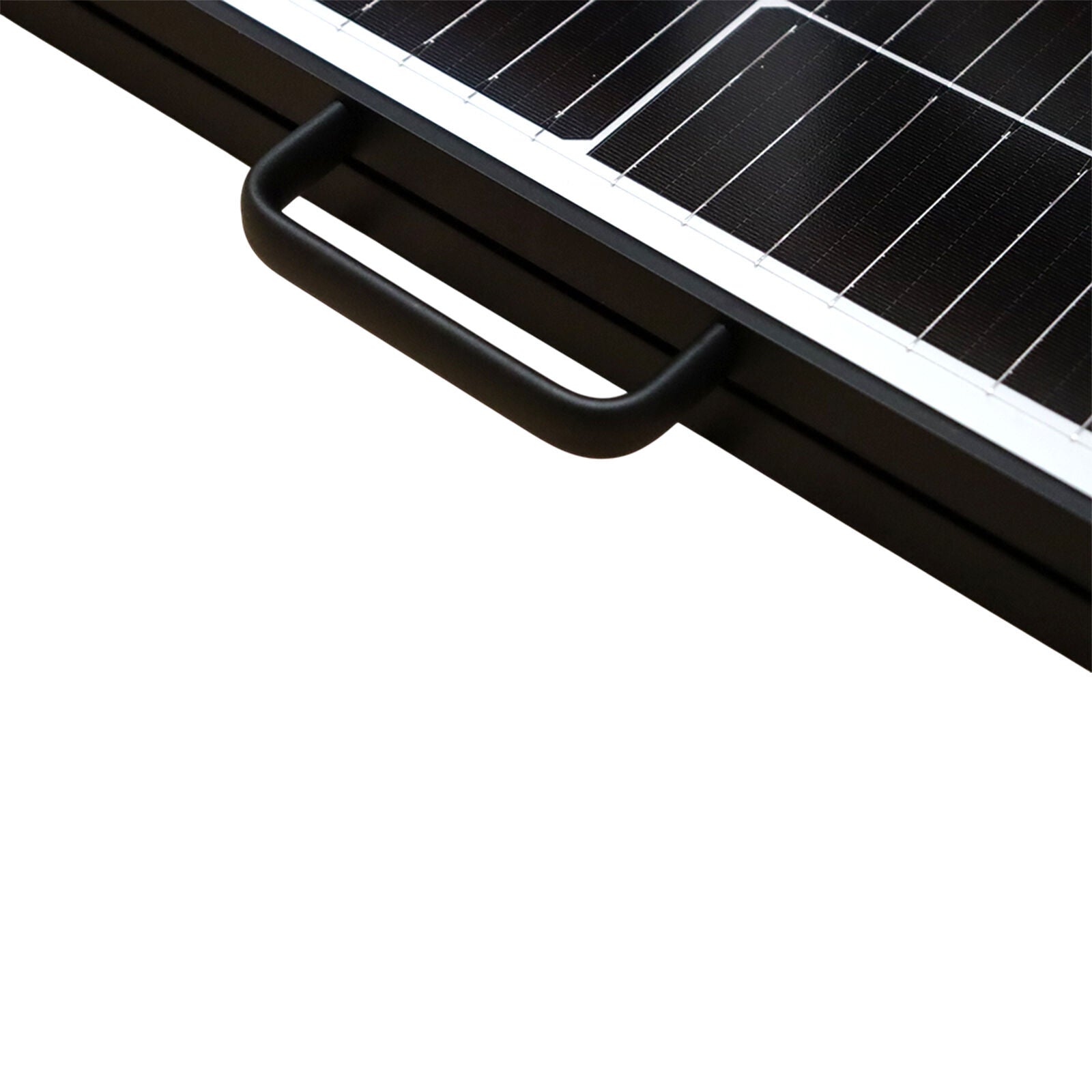

The foldable design, with secure latches and a carry handle, makes it a practical choice for frequent travellers. When unfolded, the panel measures 780 x 1350 x 19 mm, offering a large surface area for maximum sun exposure without permanent mounting.

Key Features at a Glance

• 200W total output from two independently wired 100W modules for shade resilience
• 23% efficient Trina half-cut PERC monocrystalline cells with 9-wire busbars
• Lightweight 11.2 kg design with fold-away legs and corner bumpers for easy setup
• Comprehensive cable kit including 5m marine-grade MC4 to Anderson lead, Anderson tails, and fused alligator clips
• Padded canvas carry bag with storage pocket for cables and accessories
• Durable construction: 3.2 mm tempered glass, anodised aluminium frame, IP65/IP67 junction box
• Wide operating temperature range (-40 °C to +85 °C) for Australian extremes

Ideal Applications

This portable solar panel is suited for a range of off-grid scenarios:

• Camping and caravanning: Keep 12 V batteries charged for lights, fridges, and devices.
• Emergency backup: Jump-start lithium BMS or charge starter batteries with the included alligator clip cable.
• Remote work sites: Power tools or equipment where grid access is unavailable.
• Marine use: Tinned copper cables and corrosion-resistant frame suit coastal environments.

Power Your Next Adventure with Confidence

Equip your setup with the Exotronic 200W Portable Folding Solar Panel and enjoy reliable, efficient solar energy wherever you go. Order today and experience the freedom of off-grid power without compromise.
