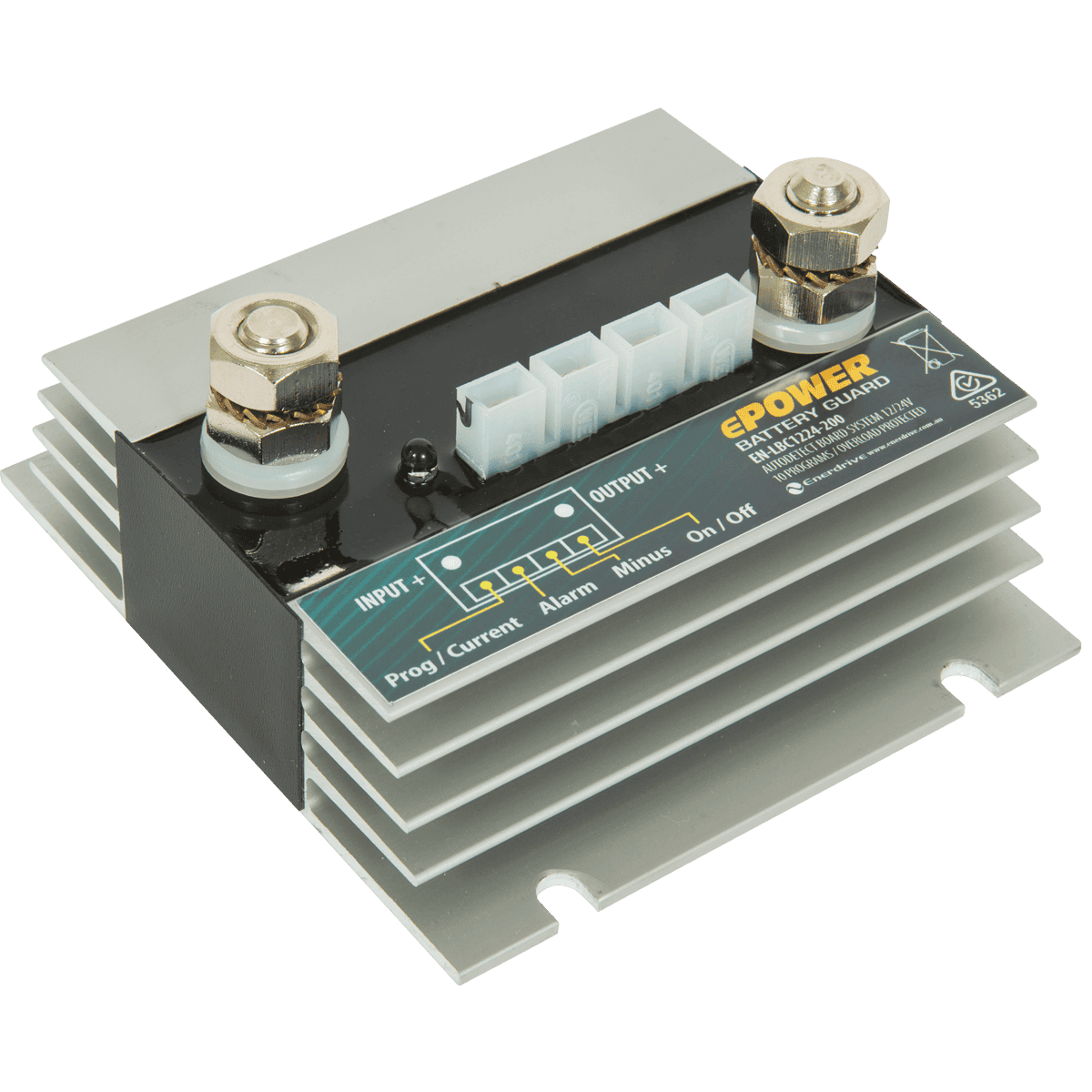

Enerdrive 12V/24V 200A IP66 Battery Guard - Low Battery Cutout

Enerdrive 200A Battery Guard: Intelligent Low Voltage Protection

Safeguard your expensive deep cycle and starting batteries from destructive over-discharge with the Enerdrive ePOWER 200A Battery Guard. Complete battery depletion not only damages the cells and significantly shortens their lifespan but can also leave you stranded by denying your engine crucial cranking power. This highly capable low voltage disconnect acts as an automated safety net, disconnecting non-essential DC loads before your battery bank drops to a critical level.

Operating seamlessly in both 12V and 24V systems through automatic voltage detection, this unit handles a continuous load of up to 200A and manages peak currents of up to 480A. It is the ideal protective measure for demanding dual battery setups, off-grid canopies, and marine electrical systems.

Microprocessor Controlled for Precision

Unlike basic mechanical isolation switches, the Enerdrive Battery Guard is a solid-state, microprocessor-controlled device. It features 10 distinct, user-selectable programs that dictate exactly when the unit engages or disengages the voltage load based on your specific battery chemistry and system requirements. This flexibility ensures it pairs perfectly with everything from traditional AGM to advanced lithium battery banks.

To prevent nuisance tripping caused by momentary voltage drops, such as an induction motor or heavy 12V fridge compressor starting, the unit features a delayed load disconnect. Furthermore, a delayed alarm output provides an early warning system, giving you time to start an engine or a generator before the power is completely cut off.

Ignition Proof and Weather Resistant

Safety is paramount in any mobile electrical system. The Enerdrive Battery Guard features an ignition-proof design, operating without mechanical relays. This solid-state construction means no electrical arcing or sparks, making it exceptionally safe for installation in confined battery compartments or near potentially flammable gases. This is a critical requirement for marine applications and enclosed camper trailer storage boxes.

Overvoltage Defense

Protection goes both ways. In addition to low voltage cutouts, this device acts as a shield against alternator or charger malfunctions. If the system voltage surges beyond safe parameters, over 16V in 12V mode or over 32V in 24V mode, the unit automatically disconnects the load to protect your sensitive 12V appliances, lighting, and electronics from catastrophic overvoltage damage.

Key Features

• Intelligent Voltage Detection: Automatically switches between 12V and 24V operation.
• Programmable Parameters: 10 selectable voltage thresholds to suit various battery types.
• Solid-State Design: Ignition-proof with no moving relays or risk of sparking.
• Surge Resilience: Delayed load disconnect prevents false triggering from temporary high-current draws.
• Overvoltage Protection: Shields connected appliances from extreme voltage spikes.
• Heavy-Duty Capacity: Sustains up to 200A continuous current and 480A peak current for high-demand loads.

Versatile Integration for Mobile Power

With its robust construction, the Enerdrive 200A Battery Guard is purpose-built for the rigours of the Australian outdoors. It is highly recommended for recreational vehicles, 4WD canopies, service vehicles, and maritime environments where reliable power management is non-negotiable.

Ensure your batteries are protected and your essential electronics are safe. Upgrade your power system with the Enerdrive Battery Guard today.
