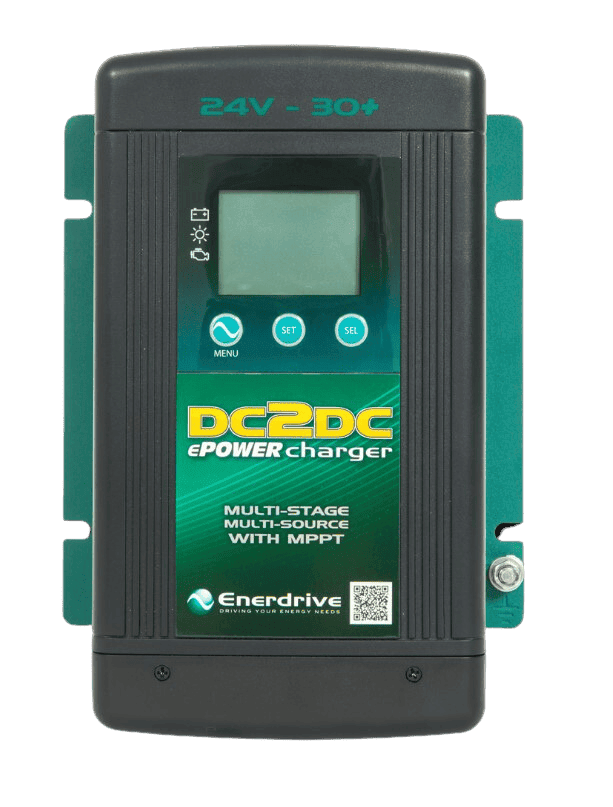

Enerdrive 24V 30A ePower DC2DC/MPPT Charger

Advanced 24V Power Management: Enerdrive ePOWER DC2DC Charger

The Enerdrive ePOWER 24V 30A DC2DC Battery Charger is a highly advanced, fully automatic multi-stage charger designed to keep your 24V deep cycle house batteries in peak condition. Engineered for marine vessels, heavy duty 4x4s, and large off-grid caravan setups, this intelligent charger takes the guesswork out of power management. By seamlessly managing power inputs from both your vehicle alternator and solar array, it ensures your secondary battery bank receives an accurate, fast, and safe charge without the need for manual switching or external relays.

Dual Input Engine and Solar Power Management

Operating a reliable dual battery system requires efficient power distribution. The Enerdrive ePOWER DC to DC charger features two independent inputs, allowing your house battery to draw power from the engine alternator while driving, or from your solar panels when parked. The system automatically prioritises the most efficient power source. Capable of handling both 12V and 24V alternator inputs to charge a 24V battery bank, it is an exceptionally versatile solution for a wide range of vehicle and marine applications.

Integrated MPPT Solar Regulator

Maximise your solar yield with the dedicated Maximum Power Point Tracking (MPPT) solar controller built directly into the unit. This advanced regulator ensures you extract the maximum available power from your solar panels, boosting overall charging efficiency. When stationary, the MPPT controller takes over to recharge your batteries using pure solar energy, making it an ideal eco-friendly solution for extended off-grid travel.

Multi-Stage Smart Charging for All Battery Chemistry

Deep cycle batteries require precise charging algorithms to maintain their capacity and lifespan. The Enerdrive DC2DC charger delivers a strict multi-stage charging profile: Bulk, Absorption, and Float. Once the battery reaches the float stage, the unit functions as a dependable DC power supply to support onboard loads like refrigeration and lighting. It is fully compatible with GEL, AGM, Flooded, and Custom programmable batteries, alongside a dedicated Lithium charging profile to support modern energy storage systems.

Key Features

• Two independent DC inputs for automatic alternator and solar charging
• Dedicated built-in MPPT solar regulator for maximum panel efficiency
• Compatible with Lithium, AGM, GEL, Flooded, and Custom battery profiles
• Fully programmable LCD display showing active power source, voltage, and amperage
• Heavy duty M6 screw terminals for secure, low resistance cable connections
• Includes a battery temperature sensor for highly accurate charge compensation
• Smart load based regulation prevents overcharging when DC appliances are running

Intelligent Load Regulation

The Enerdrive ePOWER system actively protects your battery bank by regulating its output based on connected loads. Standard chargers often misinterpret active DC loads as battery discharge, trapping the system in a bulk charge state which can permanently damage deep cycle cells. This unit uses intelligent load based regulation to correctly transition to a float state exactly when it should, extending the service life of your batteries.

Built for Harsh Off-Grid Environments

Designed to operate reliably in challenging conditions, the unit delivers a continuous 30A output in temperatures up to 40 degrees Celsius, supported by thermo-controlled fan cooling. Its compact footprint makes it significantly easier to install in tight caravan compartments or under marine consoles compared to bulky traditional AC chargers.

Upgrade Your Power System Today

Ensure your off-grid power system is always ready for the next journey. Order the Enerdrive ePOWER 24V 30A DC2DC Battery Charger today to experience seamless, reliable, and intelligent battery management for your 24V marine or recreational vehicle setup.
