Enerdrive 12V 300Ah B-TEC Slimline Lithium Battery
Bluetooth Monitoring, 250A Discharge, 176.5mm Depth
Enerdrive 12V 300Ah B-TEC Ultra IP67 Waterproof...DESCRIPTION
Compact High-Capacity Lithium Power for Mobile and Off-Grid Systems

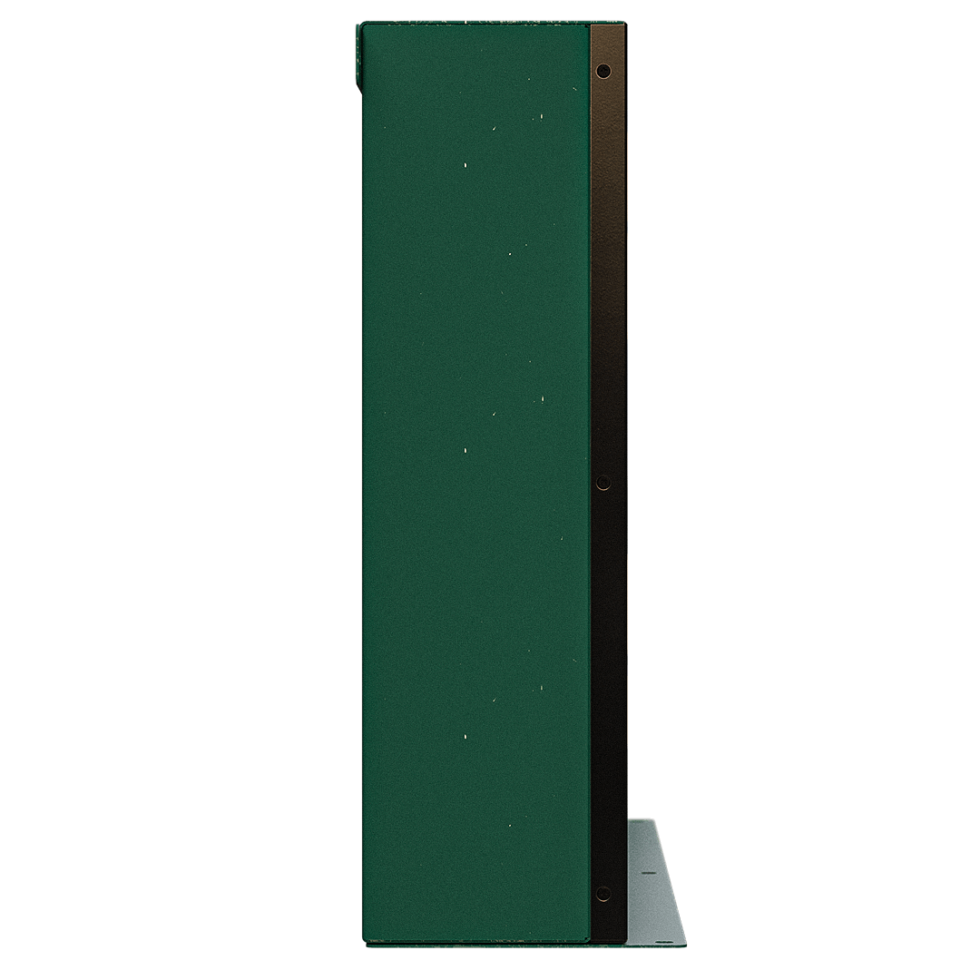

Space-Saving Design with Heavy-Duty Output

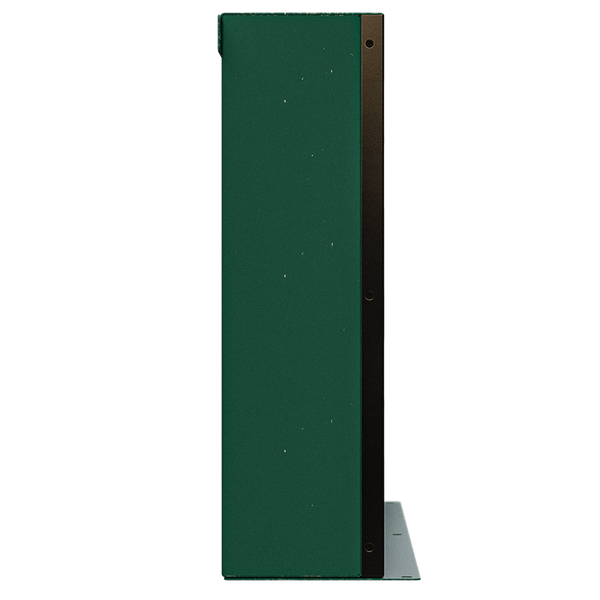

The Enerdrive 12V 300Ah B-TEC Slimline Lithium Battery is a premium deep cycle LiFePO4 battery engineered for caravan, RV, 4WD, and marine applications. Delivering robust performance in a narrow 176.5mm depth profile, this slimline battery is built specifically for internal installations where space is at a premium. It provides high usable energy with reduced weight and footprint compared to conventional AGM alternatives, supporting inverter setups up to 3000W and offering a maximum discharge current of 250A for demanding appliances.
Smart Monitoring and Advanced BMS Protection
Featuring integrated Bluetooth, this smart lithium battery allows you to track voltage, capacity, state of charge, temperature, and individual cell diagnostics in real time via iOS and Android apps. The advanced internal Battery Management System (BMS) protects against over-charge, over-discharge, over-current, and extreme temperatures. A dedicated flat battery reset button allows you to easily wake up the BMS after a low voltage disconnect, ensuring you remain in control of your power system.
Efficient, Lightweight and Expandable

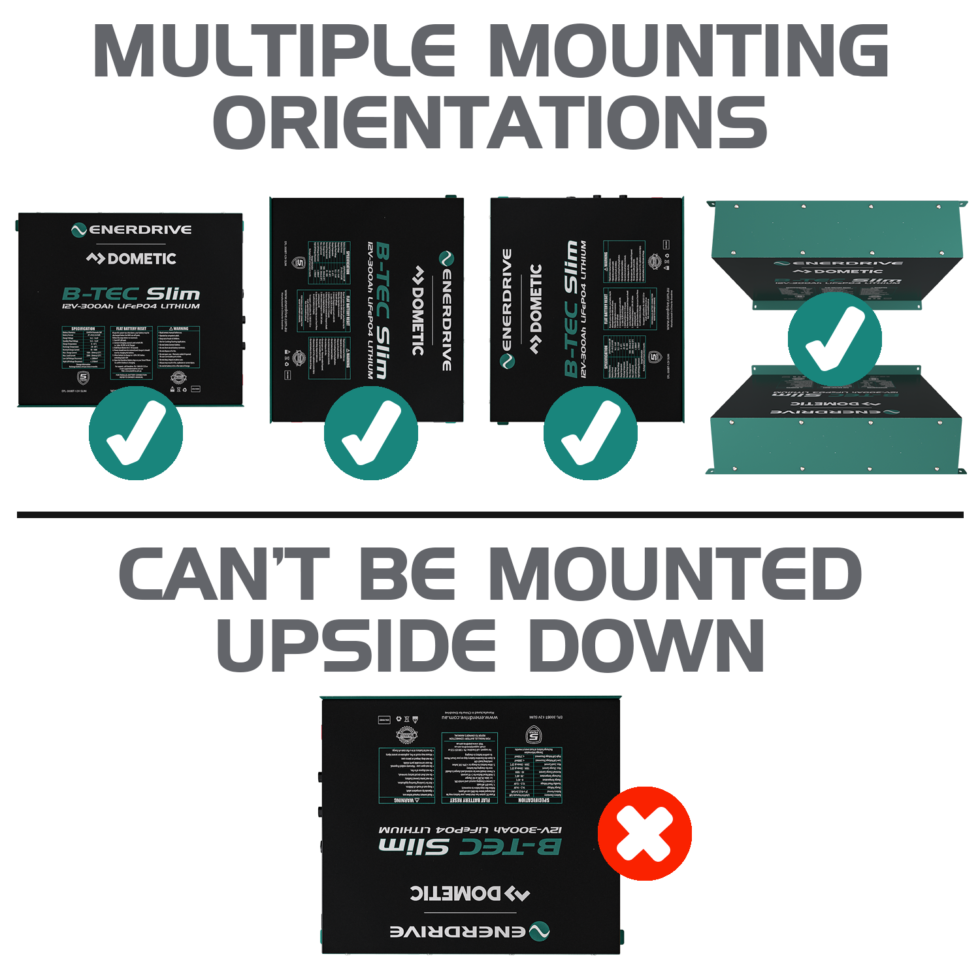

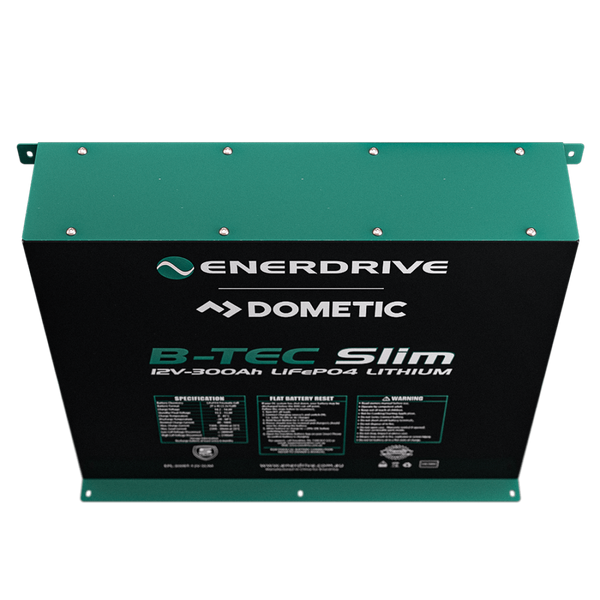

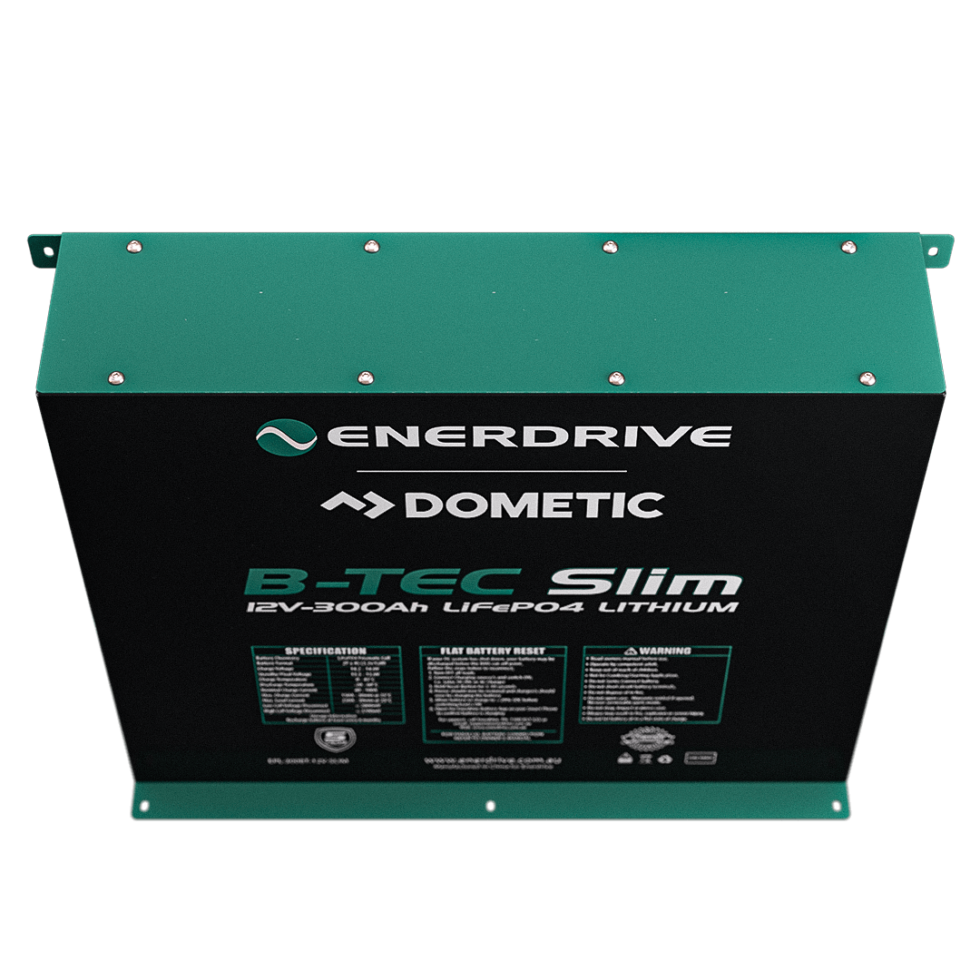

Offering up to 60% more usable power than lead acid equivalents, this 300Ah lithium battery is nearly 50% lighter and significantly more compact. It can be paralleled for increased capacity, making it ideal for extensive caravan, RV, marine, off-grid, industrial, and tiny home applications. The robust powder-coated zinc plate casing ensures durability, while the integrated mounting flanges and multiple approved mounting orientations (upright, side-lying, and end-standing) provide flexible installation options.
Key Features
- 300Ah LiFePO4 slimline design with 176.5mm depth for tight spaces
- Integrated Bluetooth monitoring via iOS and Android apps
- Internal BMS with over-charge, over-discharge, and temperature protection
- Flat battery reset button for easy BMS wake-up
- IP52-rated powder-coated zinc plate casing for durability
- Multiple approved mounting orientations for flexible installation
Upgrade to Reliable Lithium Power
Choose the Enerdrive B-TEC Slimline for a high-performance 12V 300Ah lithium battery upgrade that maximises space, efficiency, and reliability. Equip your caravan, RV, or off-grid system with smarter, longer-lasting power today.
SKU: EN-EPL-300BTM-12V
SPECIFICATIONS
Specifications
| Specification | Details |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 300Ah |
| Charge Cycles | >2500 Cycles (80% DOD) |
| Battery Charge Temperature | 0°C to 45°C |
| Normal Charge Voltage | 14.20V - 14.60V |
| Standby (Float) Voltage | 13.50V - 13.80V |
| Maximum Charge Current | 150A @ 25°C (30 mins) |
| Recommended Charge Current | 60A - 120A |
| Battery Discharge Temperature | -20°C to 60°C |
| Output Voltage Range | 11.00V - 14.60V |
| Maximum Discharge Current | 250A @ 25°C ±5°C (30 mins) |
| Pulse Discharge Current | 450A (1.0s) |
| Discharge Cut-off Voltage | <11.20V |
| Over-Charge Protection (Per Cell) | 3.75V ± 0.03V |
| Over-Charge Release | 3.60V ± 0.05V |
| Over-Discharge Protection (Per Cell) | 2.80V ± 0.05V |
| Over-Discharge Release | 3.20V ± 0.05V |
| Over Current Protection | 280A (25s), 400A (3.5s) |
| Over Temperature Protection (Discharge) | 65°C ±5°C (Release at 50°C ±5°C) |
| Over Temperature Protection (Charge) | 55°C ±5°C (Release at 45°C ±5°C) |
| Short Circuit Protection | Auto release after 5s |
| Dimensions (L x D x H) | 630mm x 176.5mm x 498mm |
| Weight | Approx 48kg |
| Case Construction | Powder Coated Zinc Plate |
| Storage Temperature (<30 days) | -20°C to 60°C (5% - 75% RH) |
| Storage Temperature (>30 days) | -10°C to 45°C (5% - 75% RH) |
| Warranty | 5 Years |
| SKU: | EN-EPL-300BTM-12V |
| Model #: | EPL-300BTM-12V |
| MPN: | EPL-300BTM-12V |
