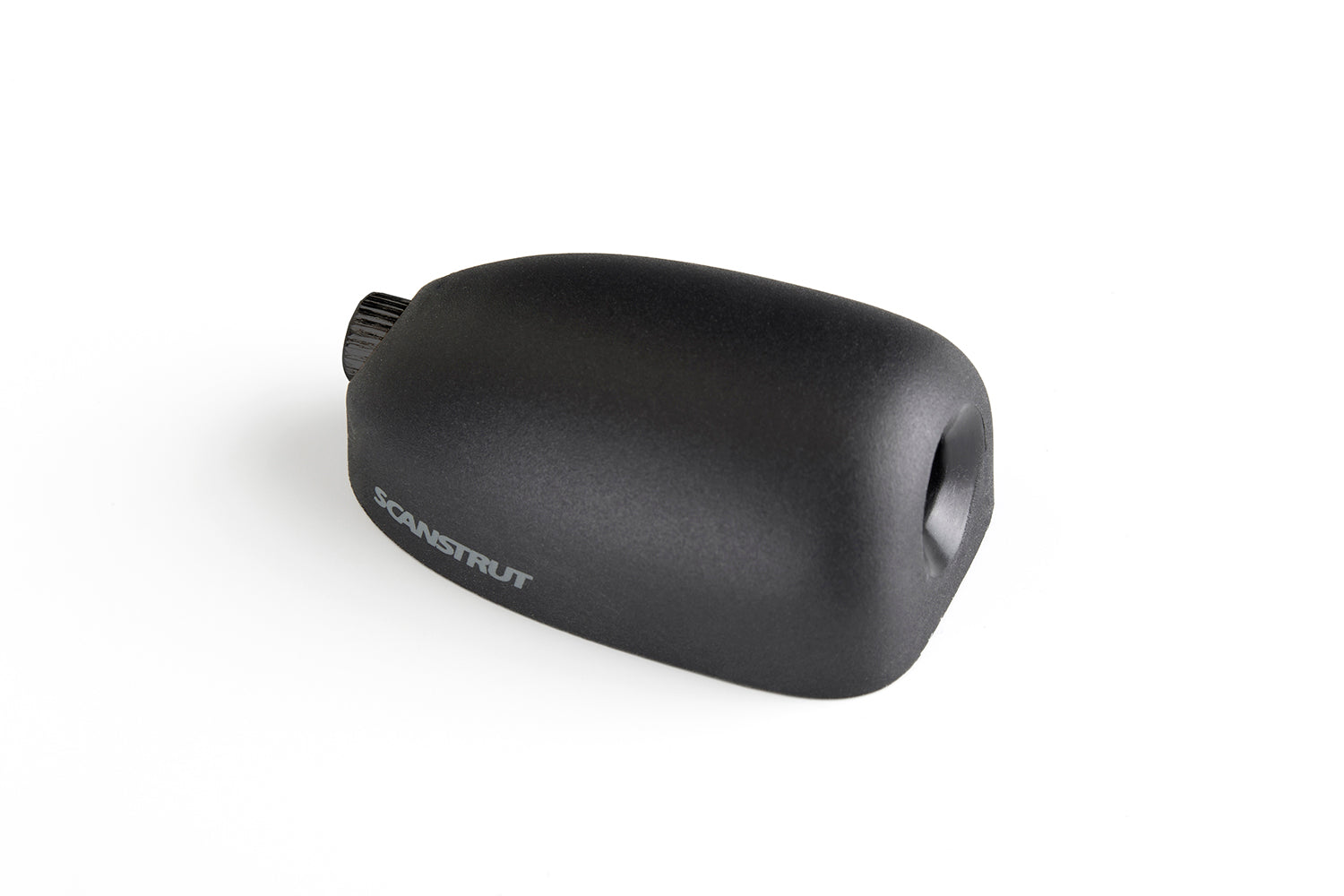

Scanstrut Black 2-6mm Horizontal Cable Seal

Professional Grade Waterproof Cable Routing for Mobile and Marine Systems

Routing wiring through the roof of a caravan, 4WD, or boat introduces the risk of water ingress and environmental damage. The Scanstrut Black 2-6mm Horizontal Cable Seal provides a highly reliable, flush-fitting solution designed to mitigate these risks. Engineered specifically for 2mm to 6mm cables, this horizontal entry gland creates a secure pathway for solar panels, light bars, and communication antennas without the need for unreliable liquid sealants.

Built from UV-stable, high-impact plastic in a sleek black finish, this cable seal blends perfectly with modern vehicle and vessel aesthetics. It is built to stand up to harsh Australian conditions, including intense sunlight, heavy rain, and coastal salt spray.

100% Watertight IP68 Reliability

Traditional cable entry methods often rely on silicones that degrade over time, leading to leaks and interior water damage. This advanced system utilizes a customisable split-seal rubber bung and a closed-cell base gasket to achieve a stringent IP68 waterproof rating. The secure compression fit ensures that moisture, dust, and debris remain securely outside your vehicle or vessel. This superior level of protection keeps sensitive interior electronics, headliners, and interior cabins completely dry and safe from the elements.

Low-Profile and Durable Construction

The horizontal orientation routes cables parallel to the mounting surface. This streamlined approach significantly reduces the risk of snagging on branches, ropes, or other roof-mounted equipment, while also improving aerodynamics on fast-moving vehicles. The impact-resistant outer shell provides robust mechanical protection against physical strikes and long-term UV exposure, easily outperforming standard grade alternatives that can become brittle and crack over time.

• IP68 waterproof rating for complete, long-lasting protection against water and dust
• UV-stable and impact-resistant outer shell designed for extreme outdoor environments
• Supplied with a closed-cell base gasket, completely eliminating the need for messy sealants

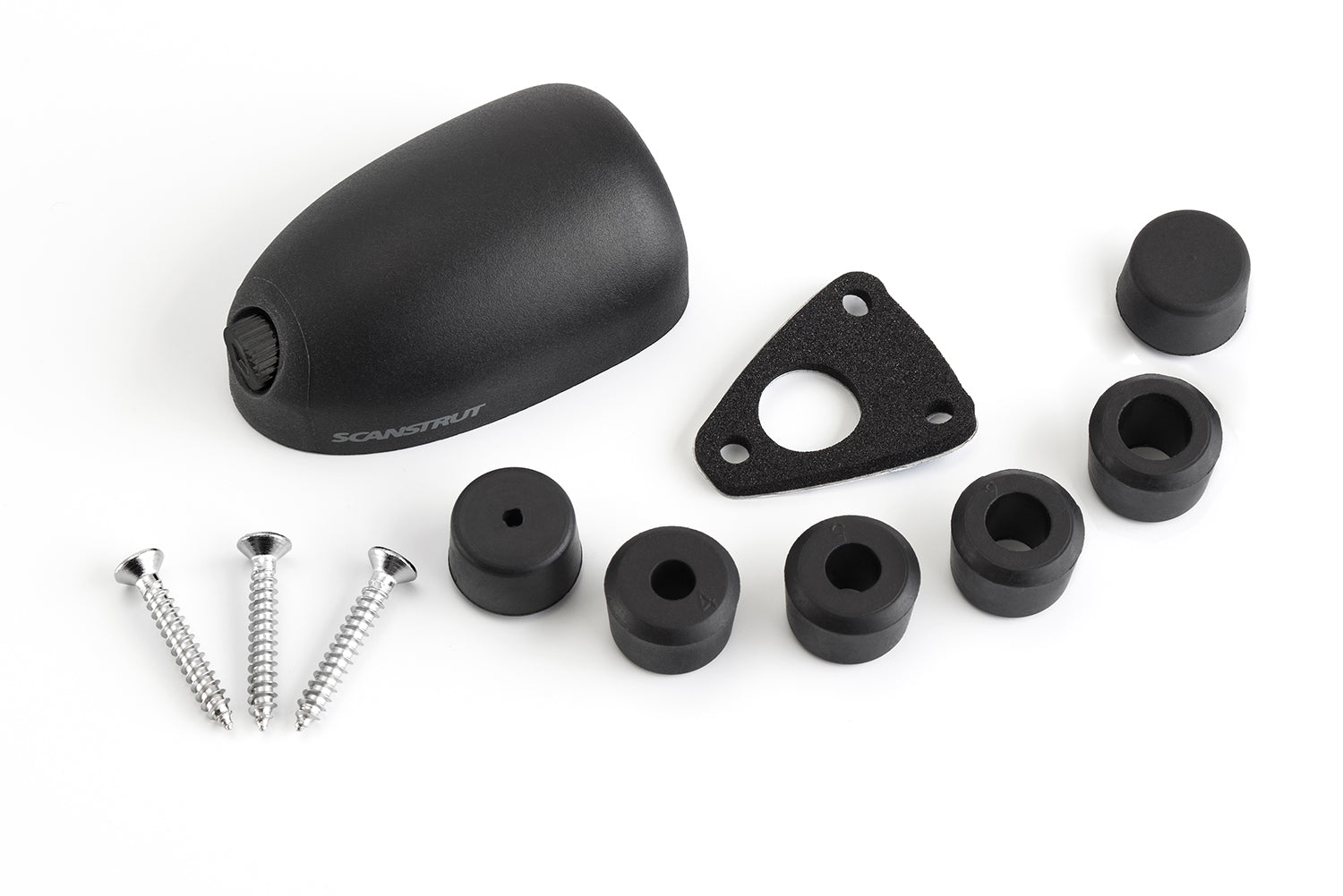

• Includes multiple pre-drilled rubber bungs and one blank bung for a precise, custom cable fit
• Marine-grade 316 stainless steel fasteners and captive nuts for simple, repeatable assembly

Versatile Applications Across Land and Sea

Whether you are upgrading an off-grid electrical system or fitting new exterior accessories, this seal offers exceptional versatility. It is highly suited for a wide variety of demanding applications, including:

• Caravan and RV solar panel wiring installations
• 4WD roof rack lighting and high-power LED light bars
• Marine electronics, VHF antennas, and vessel navigation lights
• Telecommunications wiring and external sensor cabling for remote off-grid monitoring

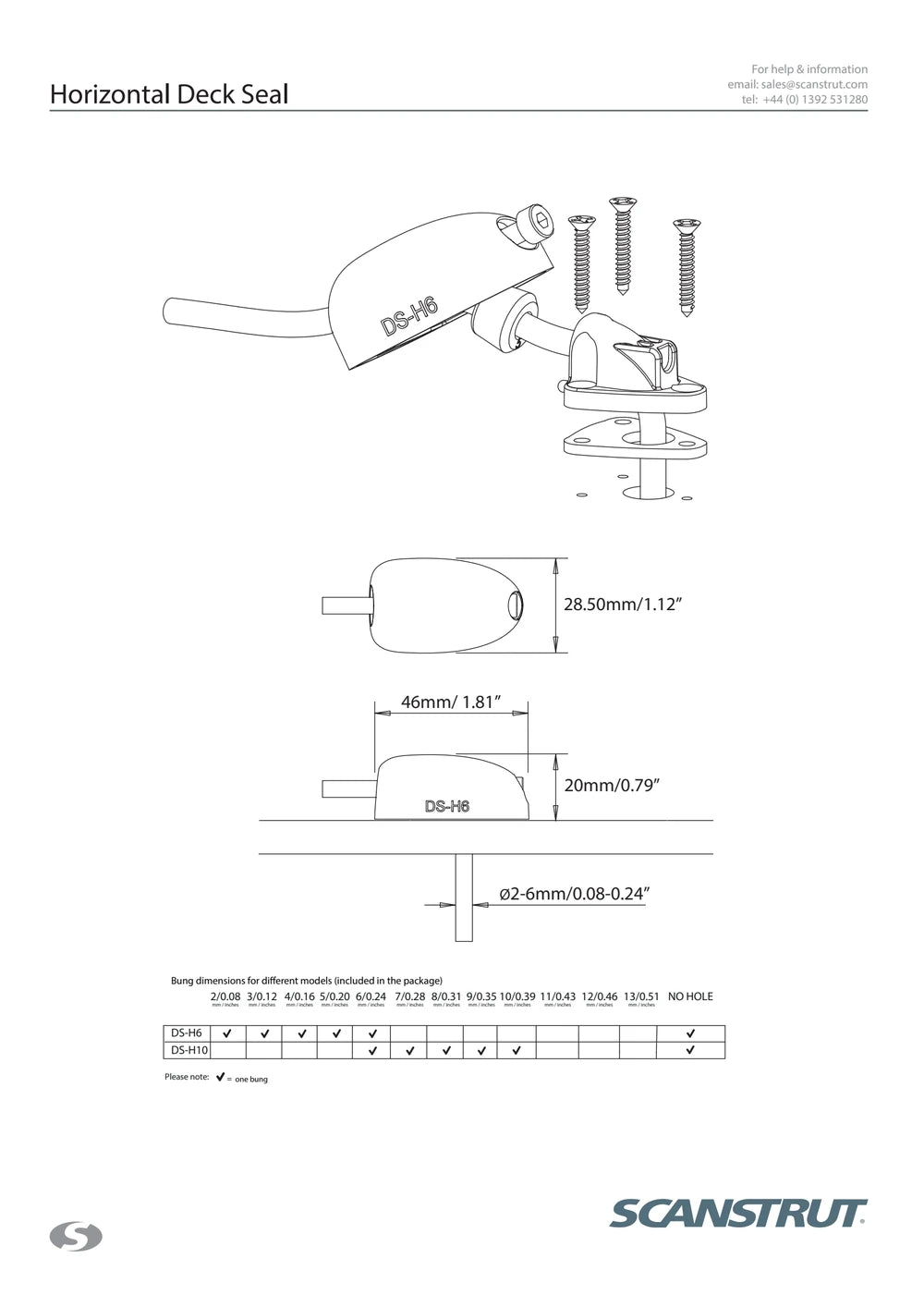

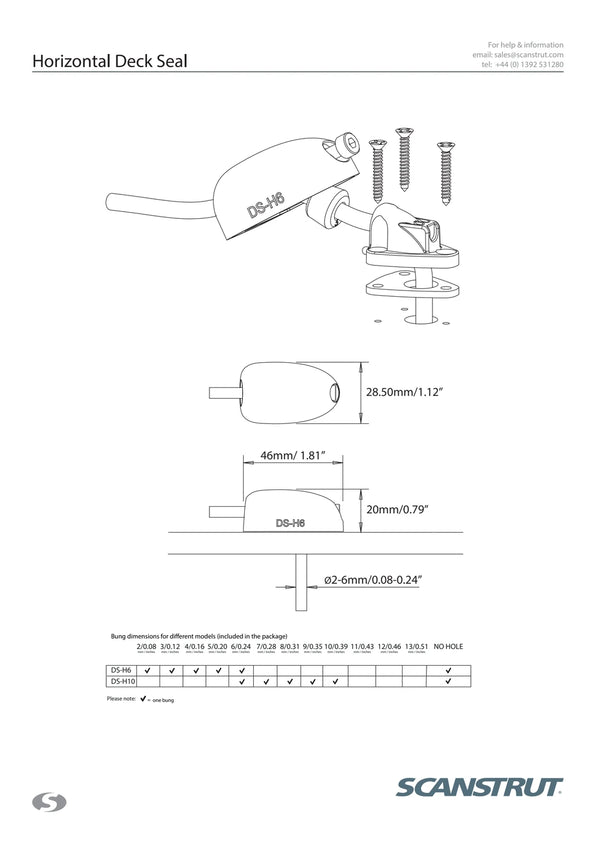

Engineered for compact installations with smaller 2mm to 6mm cables, this model features a minimal 46mm footprint and an ultra-low 20mm height, perfect for tight spaces and thinner control wires.

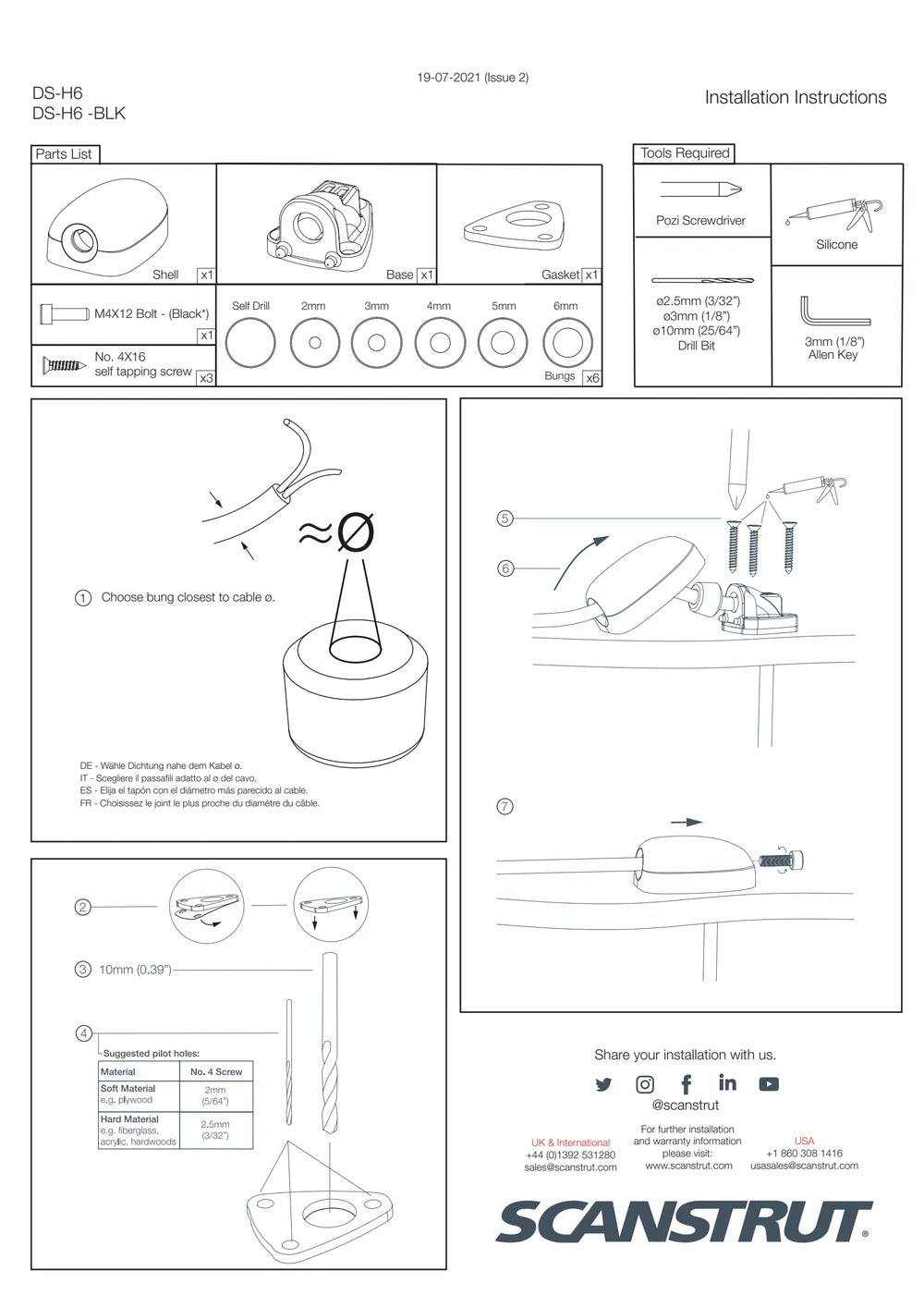

Simple, Mess-Free Installation

The inclusion of multiple interchangeable bungs allows for precise matching to your specific cable diameter right out of the box. The system uses captive nuts integrated directly into the base, which simplifies the assembly process. This thoughtful engineering allows the outer shell to be removed and refitted reliably if wiring needs to be updated, inspected, or replaced in the future, all without compromising the integrity of the watertight seal.

Upgrade Your Cable Management Today

Protect your vehicle interior and secure your exterior rooftop electronics with a professional routing solution. Order the Scanstrut Black 2-6mm Horizontal Cable Seal for your next installation and ensure your critical wiring remains safe, dry, and neatly organised across all your off-grid and marine adventures.
