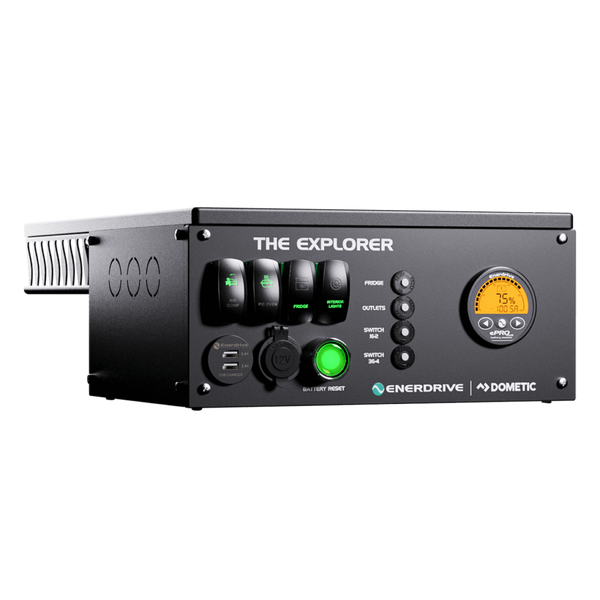

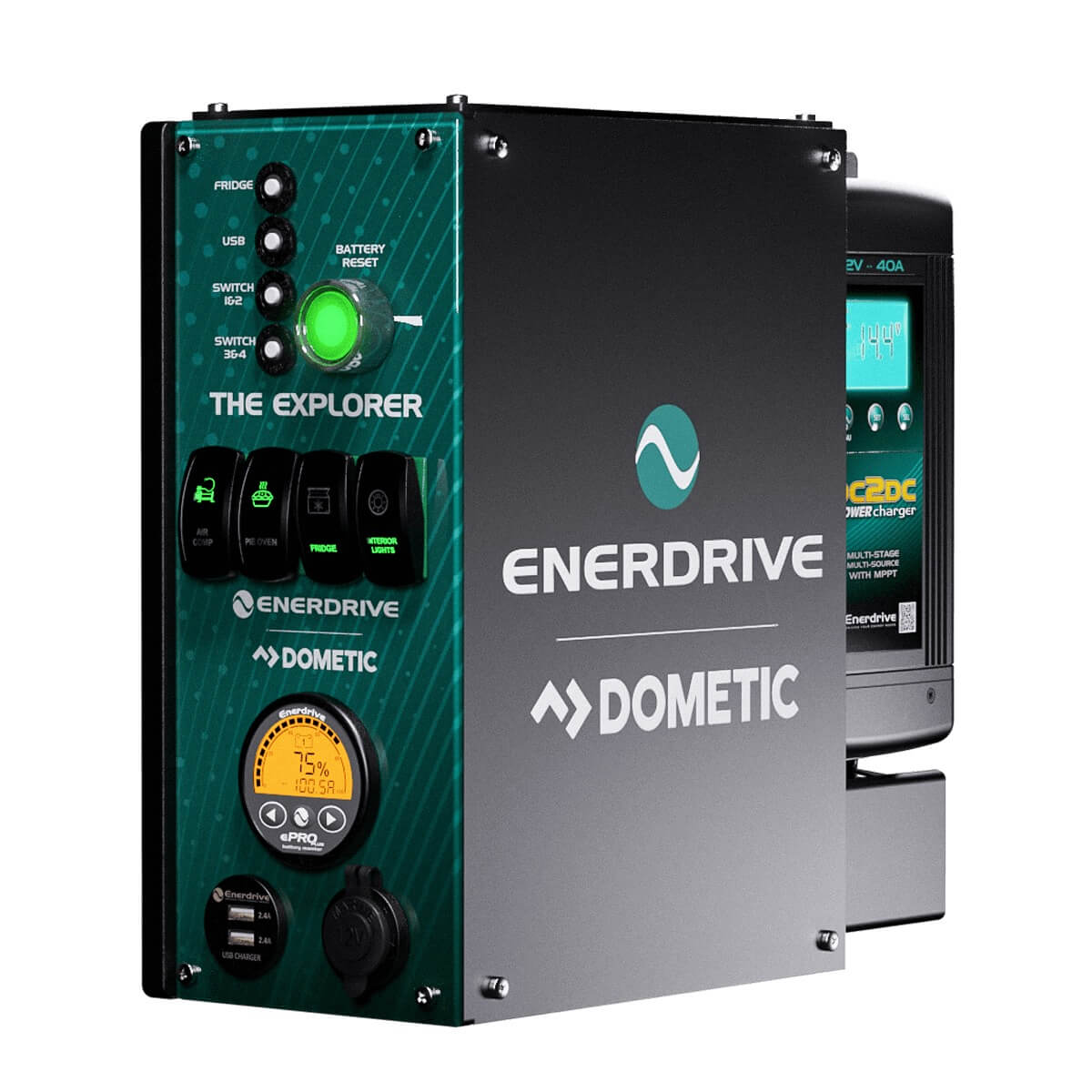

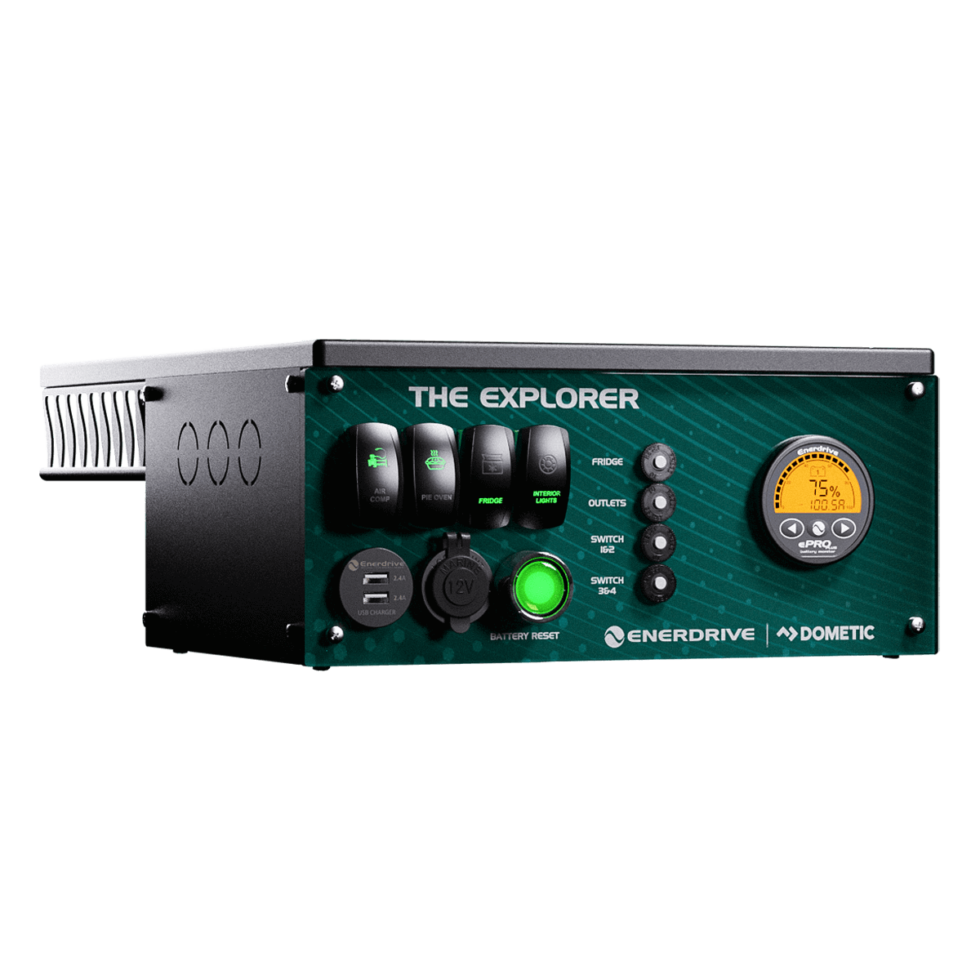

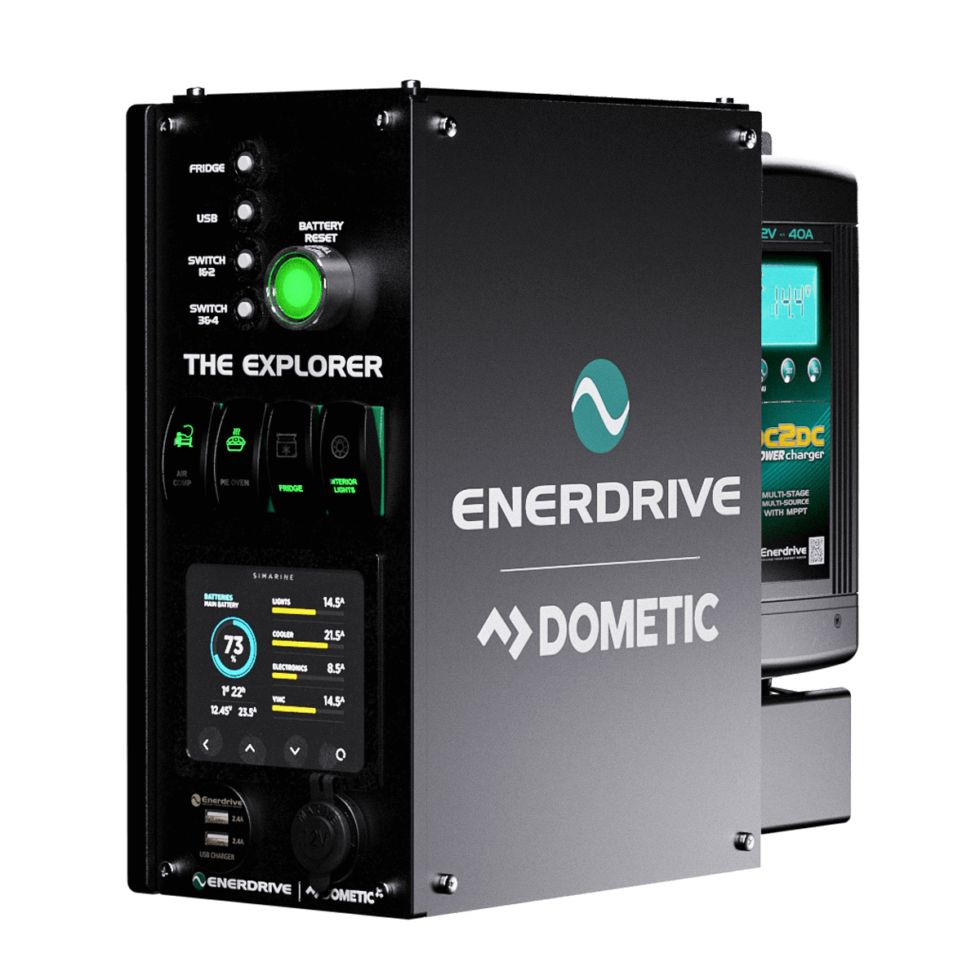

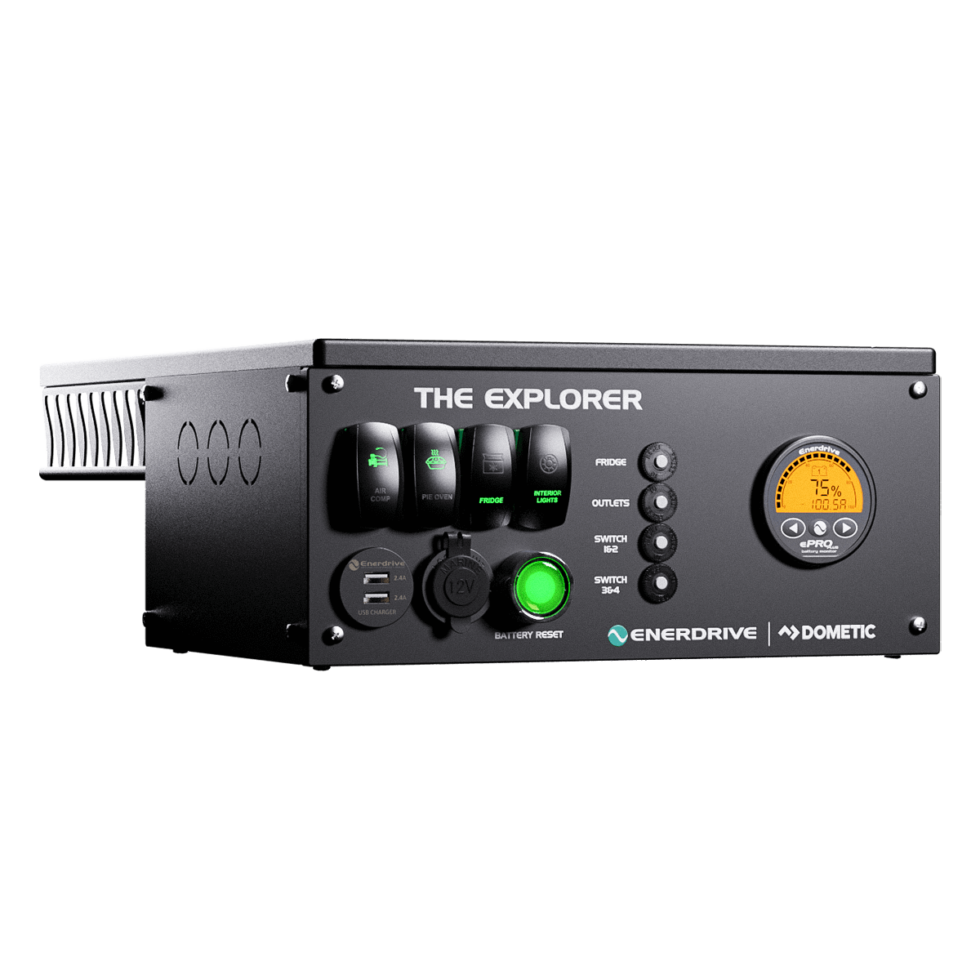

Enerdrive Left-Hand 40DC w/ EPRO+ Explorer Canopy Power System

Enerdrive Left-Hand 40DC w/ ePRO+ Explorer Canopy Power System

Pre-Wired 12V Canopy Power Hub with 40A DC-DC Charging and Precision Monitoring

The Enerdrive Left-Hand 40DC Explorer Canopy Power System is a compact, factory-wired 12V energy centre engineered for 4WD canopies, caravans, and commercial vehicle setups. Designed for passenger-side mounting, it integrates a 40A DC-DC charger with MPPT solar input, an ePRO+ battery monitor, and protected distribution in a single aluminium enclosure. This approach eliminates the complexity of sourcing and wiring separate components, reducing installation time and potential fault points.

Unlike generic power boards, the Explorer system uses matched Enerdrive electronics and pre-terminated 35mm² battery cable with a main DC fuse. The result is a tidy, professional installation that supports consistent charging from the vehicle alternator and solar panels, while the ePRO+ monitor gives you accurate visibility of battery state-of-charge, current, and voltage. For anyone running a fridge, lighting, or communications gear off-grid, this system provides a dependable foundation that helps avoid flat batteries and unexpected downtime.

40A DC-DC Charger with Integrated MPPT Solar Controller

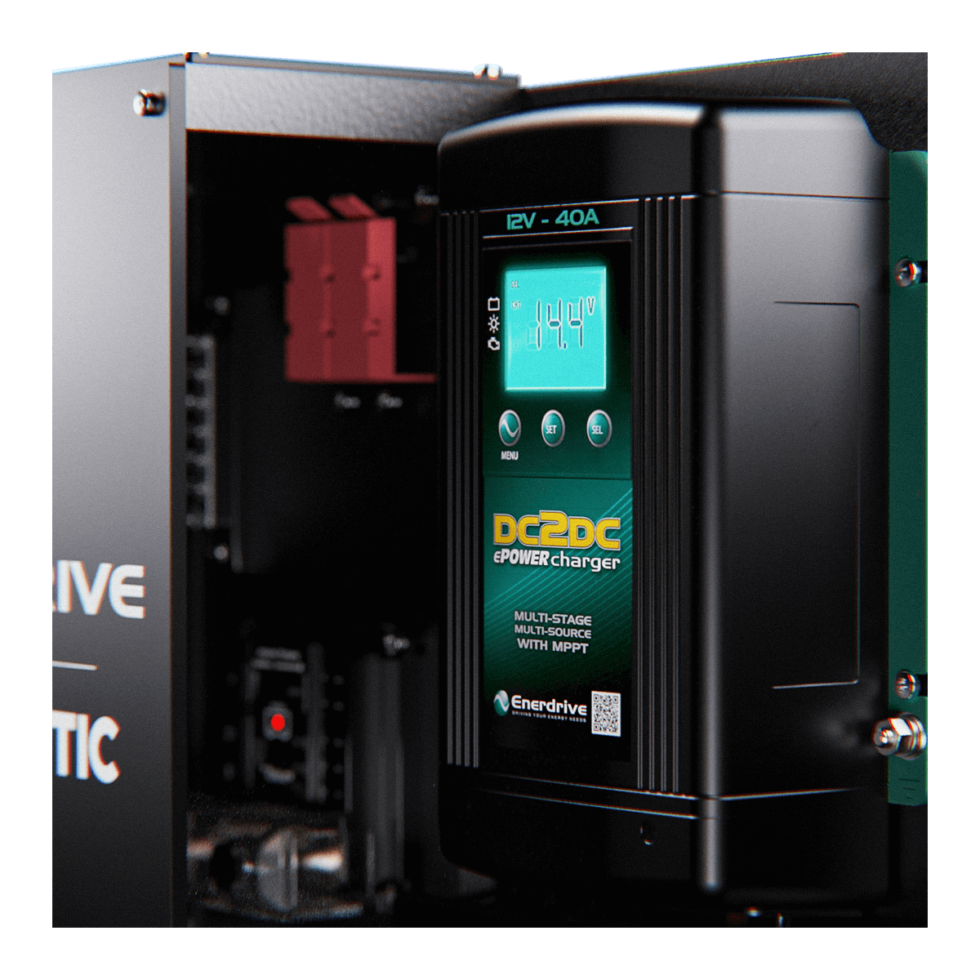

At the core is the Enerdrive ePOWER DC2DC40+, a multi-stage 40A DC-DC charger that accepts input from both the vehicle alternator and an unregulated solar array. Its built-in Maximum Power Point Tracking (MPPT) controller extracts the best available power from your panels, making it suitable for portable or fixed solar setups. The charger automatically selects the strongest source, so you can drive and charge, or park and harvest solar energy without manual switching.

Compatible with AGM, Gel, Wet, and Lithium (LiFePO₄) batteries, the DC2DC40+ tailors its charge profile to the battery type, helping to extend service life and maintain capacity. A battery reset function can revive a deeply discharged battery directly from the charger, a practical safeguard when you are days from mains power.

ePRO+ Battery Monitor: Real-Time Energy Awareness

The included Enerdrive ePRO+ battery monitor uses a precision shunt to measure current flow, voltage, and amp-hour consumption. Its clear display shows state-of-charge as a percentage, remaining time at current load, and historical data, so you can make informed decisions about energy use. This level of detail helps prevent over-discharge and supports better battery management, particularly in multi-day off-grid scenarios where recharging opportunities may be limited.

Protected Distribution and Flexible Outputs

All outputs are pre-wired and individually protected, reducing the need for additional fuse blocks or switch panels. The system includes:

• 4x pushbutton circuit breakers for main circuit protection
• 4x illuminated Contura-style rocker switches for accessory control
• 50A Anderson-style plug for high-draw devices such as a portable fridge
• 12V cigarette-style socket with weather-resistant cover
• Twin USB-A and USB-C sockets delivering up to 100W combined for fast device charging

Custom output configurations can be specified at time of order, including additional 12V sockets or high-output USB ports. Optional custom engraving on switches and breakers adds a professional finish and simplifies daily operation.

Built for Australian Conditions

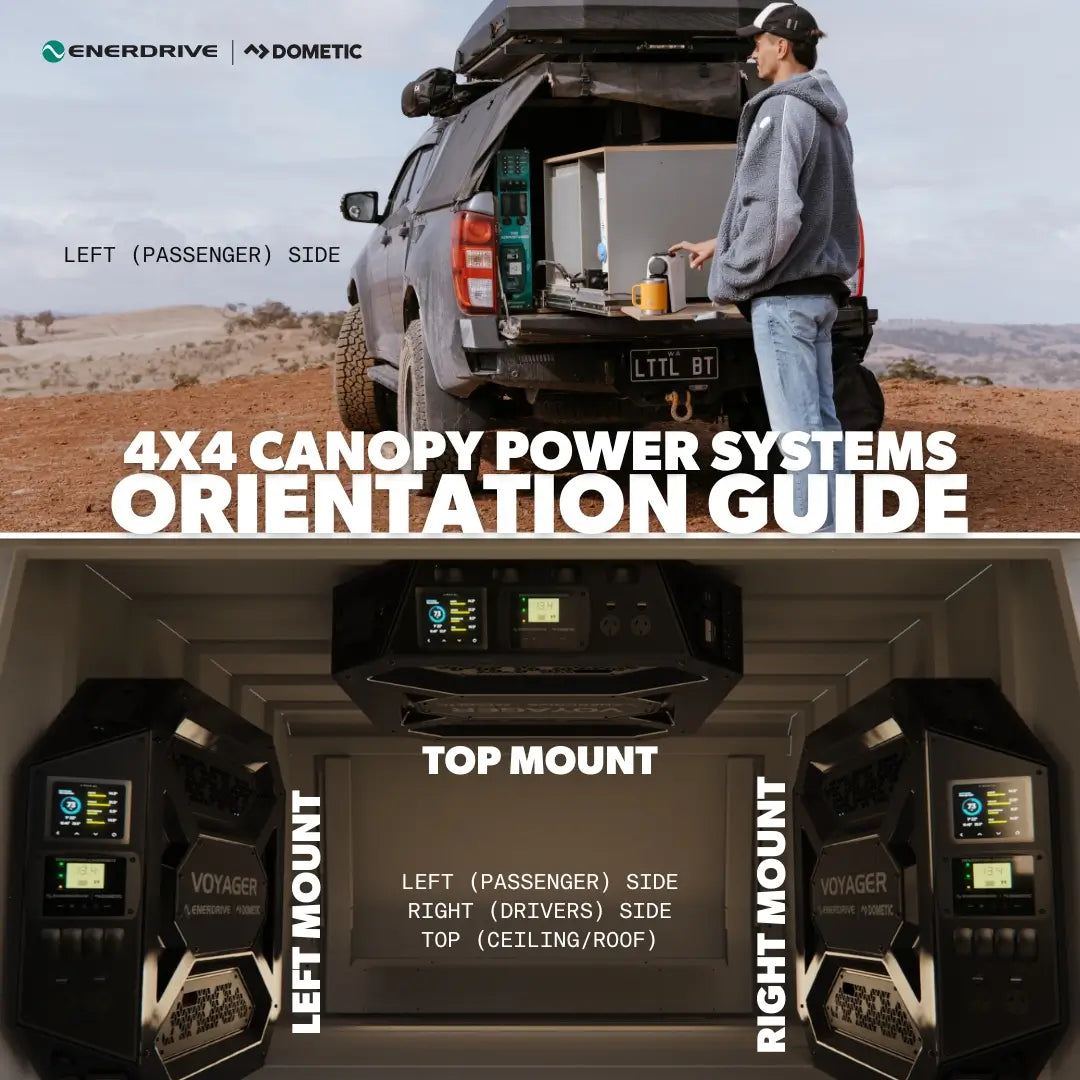

The enclosure is fabricated from powder-coated aluminium, offering corrosion resistance and effective heat dissipation. The compact footprint (455L x 155W x 330H mm) and 7.0 kg weight suit space-constrained installations, while the left-hand orientation keeps controls accessible from the passenger side of the vehicle. All internal connections are secured and strain-relieved, reducing the risk of vibration-related faults on corrugated roads.

Important Installation Notes

The battery reset function is designed for 12V start systems. For 24V vehicle electrical systems, contact us to arrange the necessary modifications. An ignition trigger wire connection is required for smart alternator compatibility; this is a simple signal wire that enables the charger to detect when the engine is running.

Power Your Next Adventure with Confidence

Whether you are building a touring 4WD, fitting out a work canopy, or upgrading a caravan power system, the Enerdrive Left-Hand 40DC Explorer delivers integrated charging, monitoring, and distribution in a single, pre-wired unit. Order your Enerdrive Explorer Canopy Power System today and equip your vehicle with a smarter, more reliable off-grid energy solution.
