Enerdrive Left-hand 40AC 40DC w/ EPRO+ Traveller Canopy Power System

Enerdrive Traveller Canopy Power System 40AC 40DC with ePRO+ Monitoring

Complete Pre-Wired Off-Grid Power Solution for Canopies, Caravans, and 4WD Touring

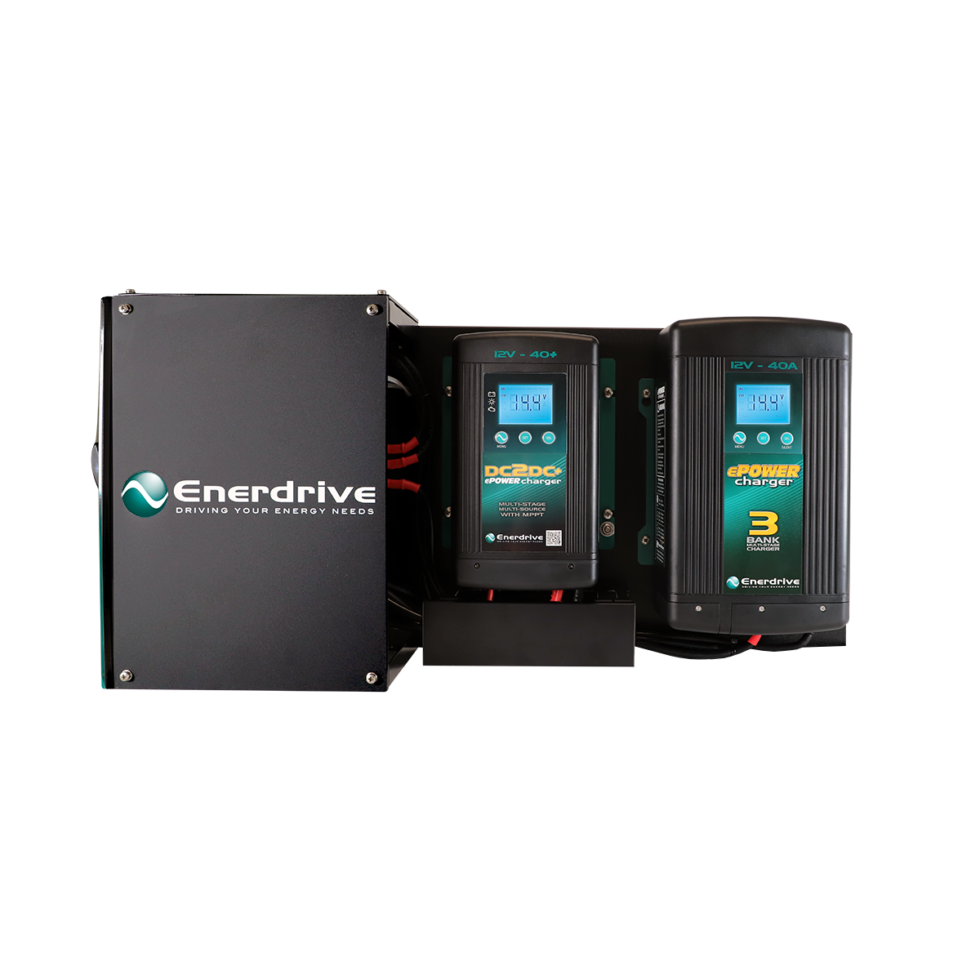

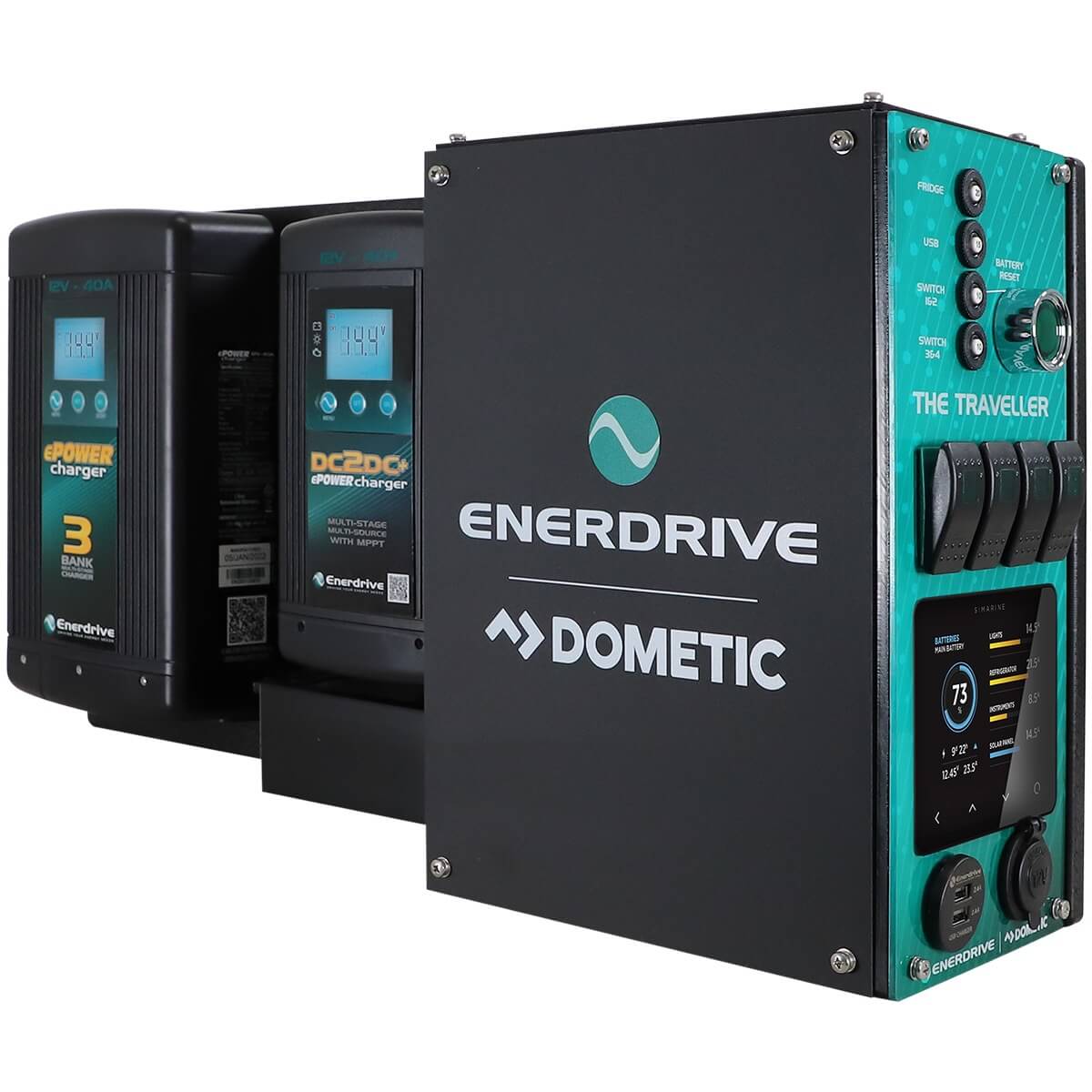

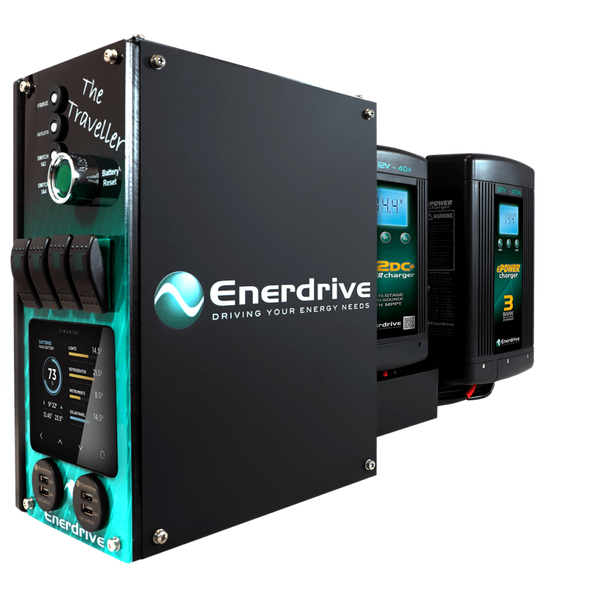

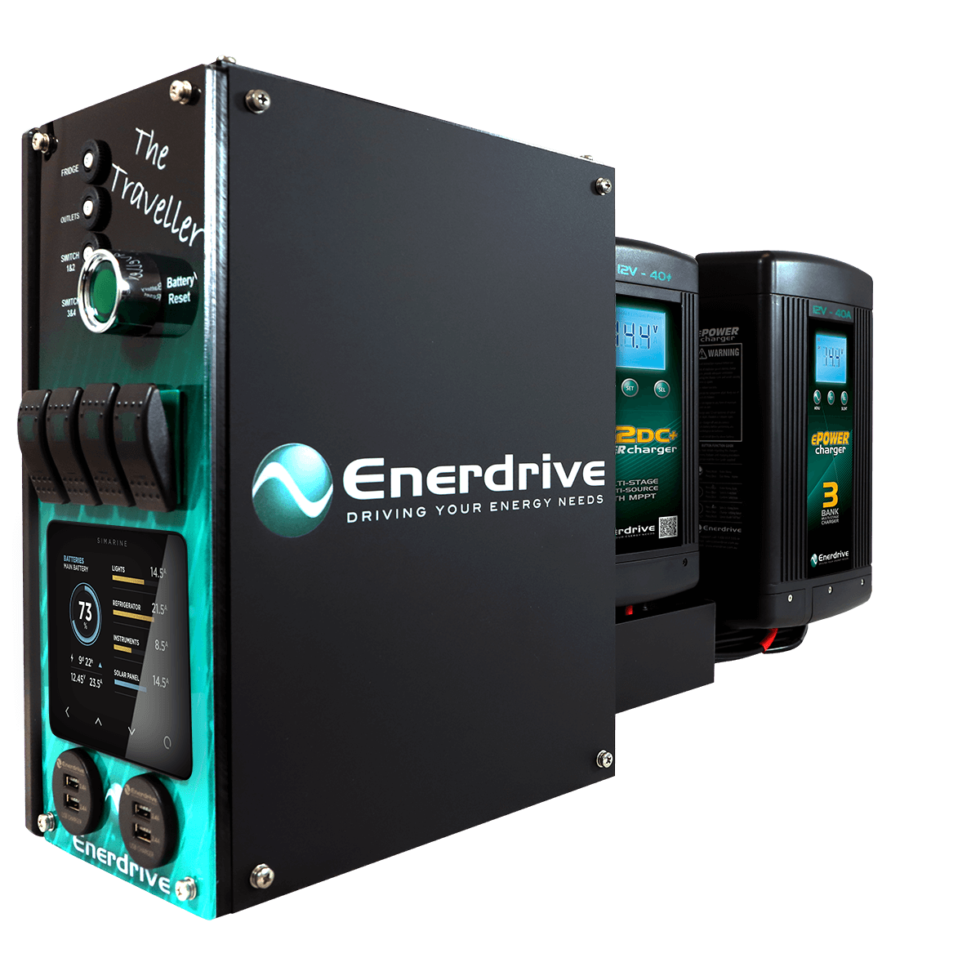

The Enerdrive Traveller Canopy Power System delivers a fully integrated, high-output 12V power solution engineered for serious off-grid travel. Combining a 40A AC battery charger with a DC2DC 40A+ vehicle and solar charger, this system ensures your auxiliary batteries stay charged from multiple sources—mains power, generator, vehicle alternator, or solar. Designed specifically for canopy setups, caravans, and 4WD touring vehicles, it provides the reliable energy needed to run fridges, lighting, inverters, and other essential equipment without compromise.

Unlike piecing together separate components, the Traveller arrives professionally pre-wired by Enerdrive, drastically reducing installation time and eliminating common wiring errors. Only final connections to your battery, loads, and input sources are required, making it a practical choice for installers and DIY enthusiasts seeking a pre-wired 12V power system that simply works.

Dual Charging Capability for Maximum Flexibility

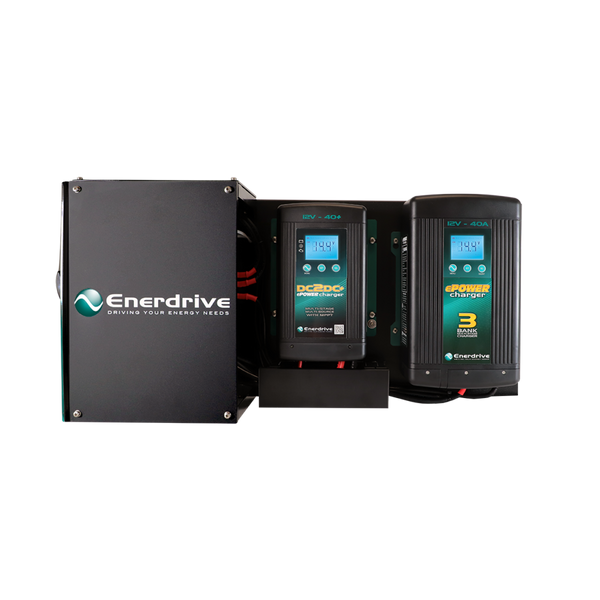

At the core of the system is the Enerdrive ePOWER DC2DC40+, a 40A DC-to-DC charger with integrated MPPT solar controller. This unit intelligently manages charging from both your vehicle's alternator and solar panels, prioritising solar when available to reduce fuel consumption. It is fully compatible with smart alternators (ignition input required) and supports Lithium, AGM, Gel, and Flooded battery types, ensuring optimal charging profiles for modern deep-cycle batteries.

Complementing this is the 40A AC battery charger, which accepts 240V input from mains power or a generator. This allows you to top up your batteries at powered sites or via a portable generator, providing true multi-source charging versatility. Together, these chargers form a robust dual-input charging system that keeps you powered regardless of your location.

Integrated 2000W Inverter with RCD Protection

For running 240V appliances, the system includes a 2000W AC transfer inverter with a built-in RCD safety switch. This provides clean, stable power for laptops, power tools, or medical devices, with the added safety of residual current protection—a critical feature for mobile installations. The inverter's transfer switch automatically passes through mains power when available, seamlessly switching to battery power when unplugged.

Intuitive Monitoring with ePRO+ Battery Monitor

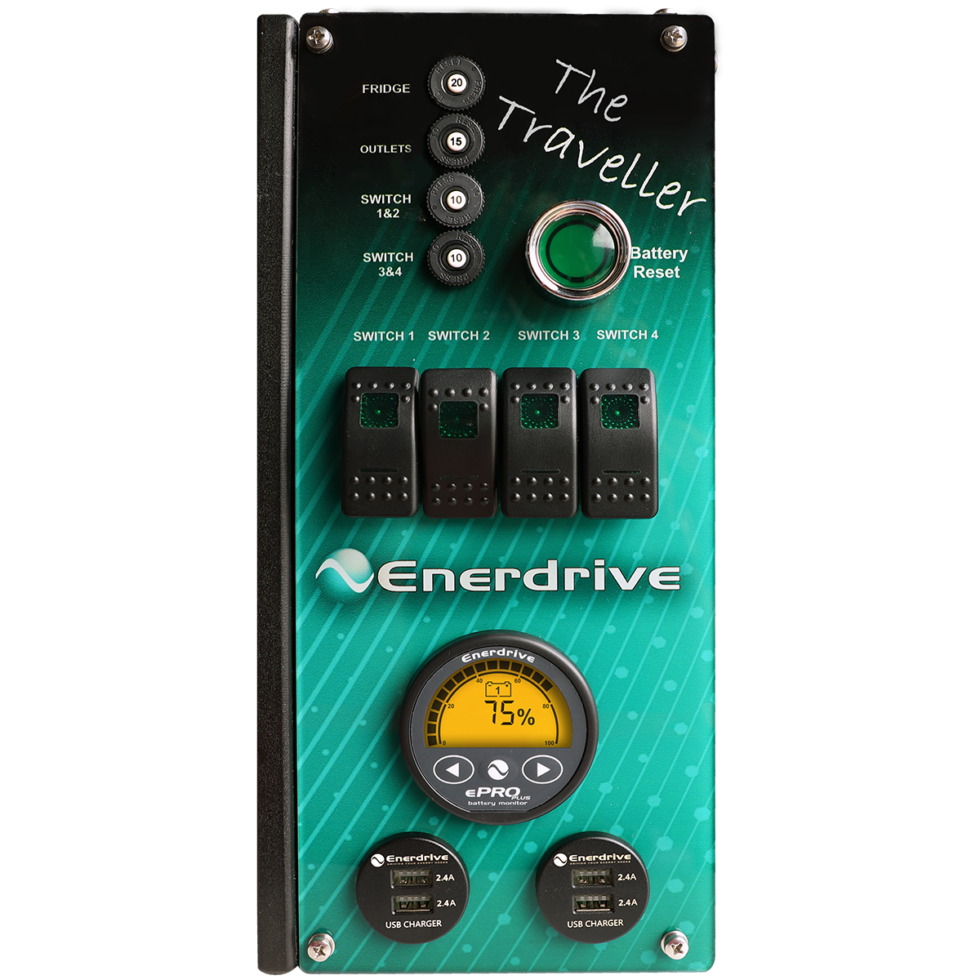

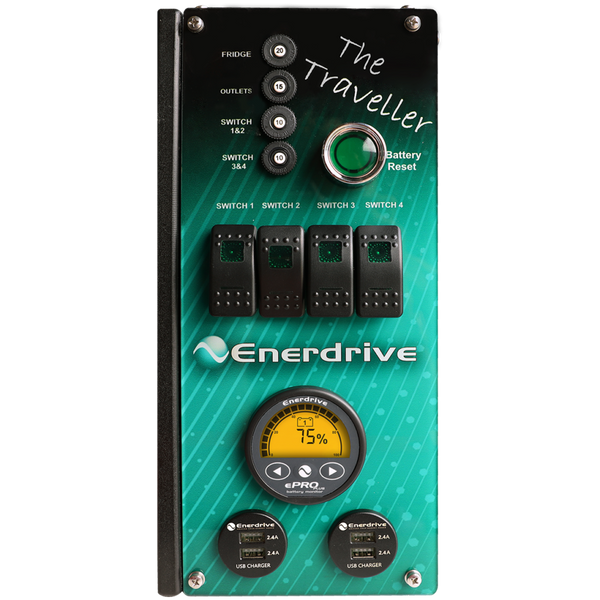

Stay informed with the Enerdrive ePRO+ battery monitor, which displays real-time voltage, current, and state of charge on a clear, easy-to-read screen. This eliminates guesswork about your battery's health and remaining capacity, helping you manage power consumption effectively. For users who demand precise energy management, this monitor is an essential tool for preventing deep discharges and extending battery life.

Key Features at a Glance

• 40A DC2DC+ charger with integrated MPPT solar input for efficient charging from vehicle and solar
• 40A AC charger for mains or generator charging at powered sites
• 2000W pure sine wave inverter with RCD safety switch for 240V appliances
• ePRO+ battery monitor for accurate voltage, current, and state of charge readings
• Pre-wired circuit breakers protect all major components and simplify installation

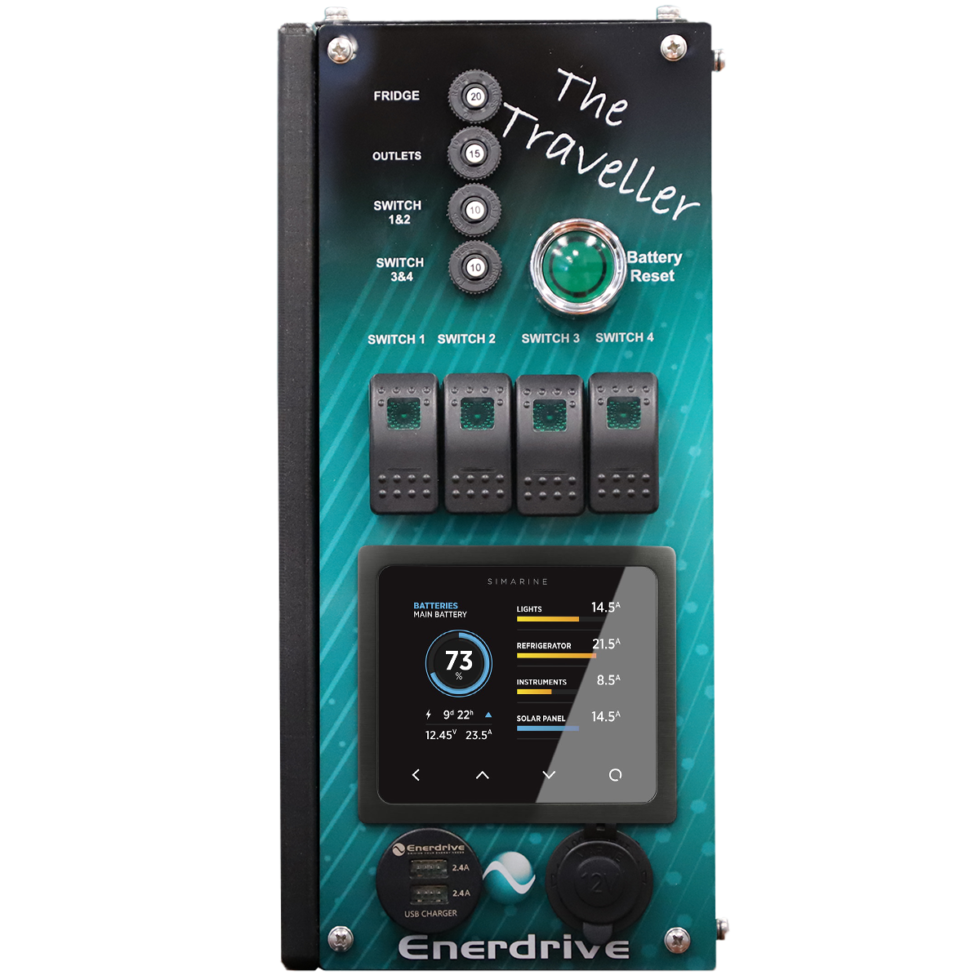

• 4 Contura water-resistant rocker switches for controlling lights and auxiliary loads
• Pre-wired Anderson plugs for battery and fridge connections (50A rated)

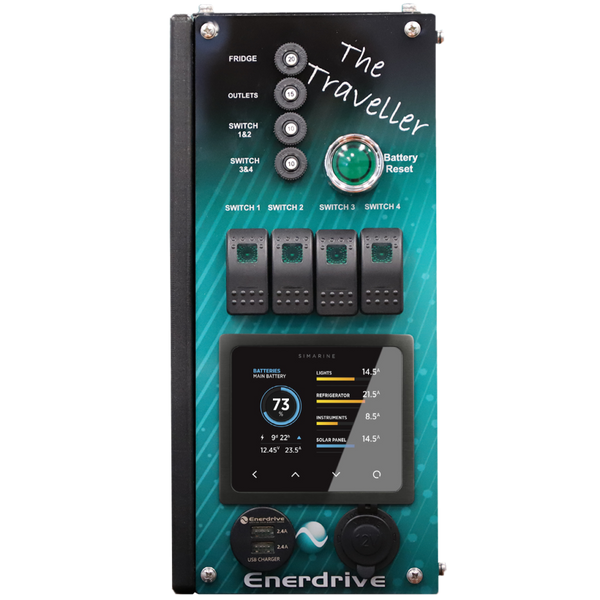

• 1 x 12V cigarette socket and 1 x dual 2.4A USB outlet (customisable at order)
• Battery reset button to recover a flat battery via the DC2DC charger
• Heavy-duty 70mm² pre-wired battery cable for minimal voltage drop
• Compact dimensions: 685L x 155W x 330H mm; weight 10.5 kg

Built for Australian Conditions

Every component is housed in a robust, powder-coated enclosure designed to withstand the vibration, dust, and temperature extremes of outback travel. The water-resistant Contura switches and sealed circuit breakers ensure reliable operation even in damp or dusty environments. With a 5-year warranty, this system is backed by Enerdrive's commitment to quality and durability.

Flexible Configuration Options

The standard faceplate is supplied in green; a custom black faceplate is available if specified at order. Additionally, the USB and 12V socket layout can be tailored to your needs—request extra USB ports or additional 12V outlets to match your specific device charging requirements.

Simplified Installation, Professional Results

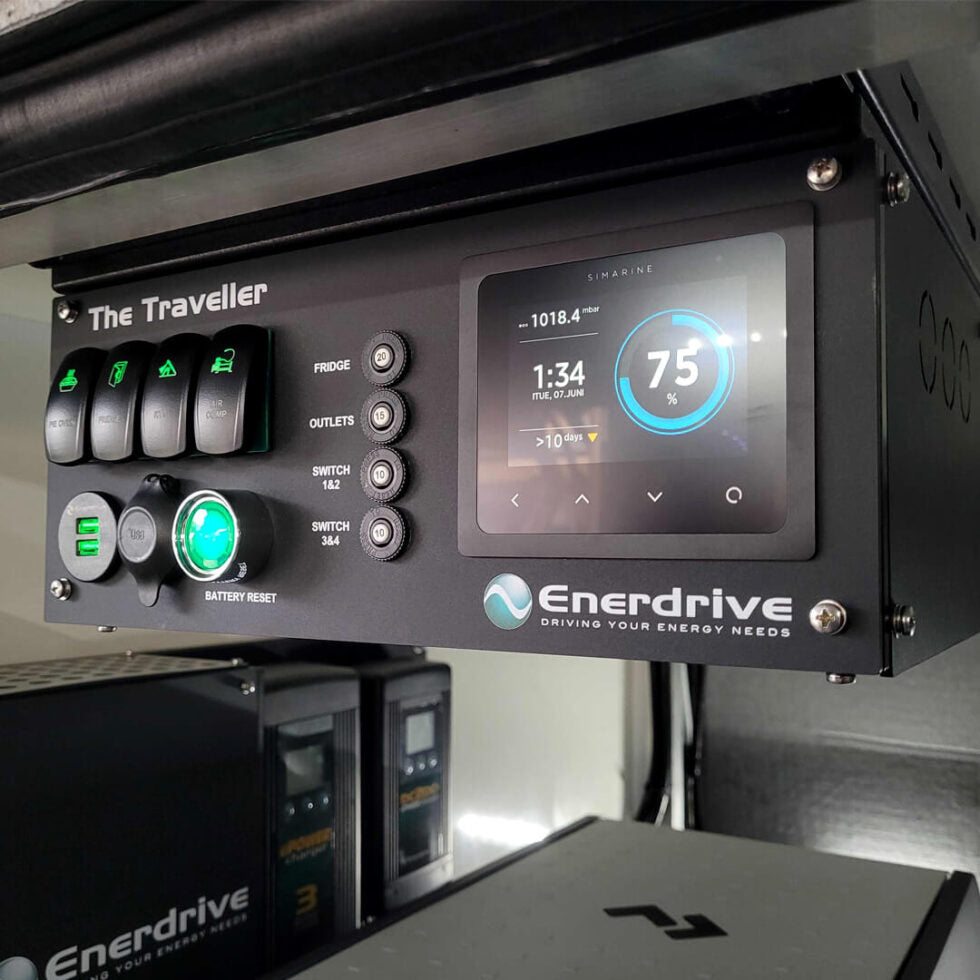

By eliminating the need to source, mount, and wire individual chargers, inverters, and monitors, the Traveller system saves hours of labour and reduces the risk of incorrect wiring. The pre-wired design ensures all components are correctly fused and earthed, meeting Australian standards for mobile electrical installations. This makes it an ideal choice for canopy power systems, caravan electrical upgrades, and 4WD dual battery setups where reliability and safety are paramount.

Power Your Next Adventure with Confidence

Whether you're planning a lap of Australia or weekend escapes, the Enerdrive Traveller Canopy Power System delivers the dependable, high-capacity energy you need. Order yours today and experience the freedom of true off-grid power, professionally pre-wired and ready to install.
